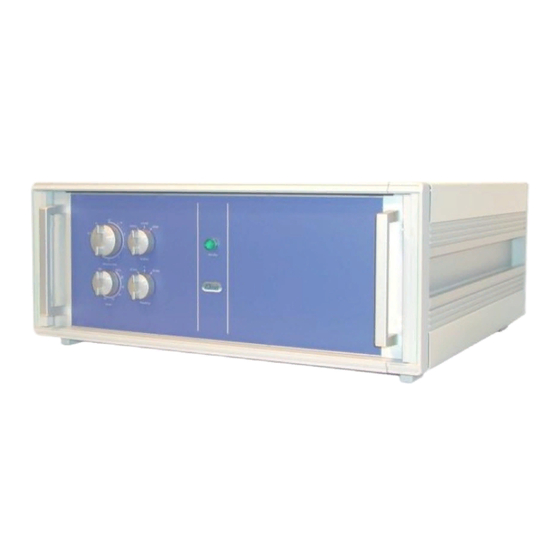

Elma Elmasonic MF 200 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Elma Manuals
  4. Portable Generator
  5. Elmasonic MF 200
  6. Operating instructions manual

Elma Elmasonic MF 200 Operating Instructions Manual

Ultrasonic-generators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating instructions
MF 200 – MF 1000
MF 2000 – MF 4000
MF 2000 – MF 4000
Elmasonic MF
Ultrasonic-generators
 english 
Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 (
)7731 / 882-0 Fax +49 (
)7731 / 882-266
info@elma-ultrasonic.com
0
0
www.elma-ultrasonic.com
document ref. 106 4799

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elmasonic MF 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elma Elmasonic MF 200

  • Page 1 MF 2000 – MF 4000 MF 2000 – MF 4000 Elmasonic MF Ultrasonic-generators  english  Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 ( )7731 / 882-0 Fax +49 ( )7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com document ref. 106 4799...

  • Page 2: Table Of Contents

    Malfunction of the generator Troubleshooting ..20 MF2000 – MF 4000 only .........20 12.1 MF 2000 – MF 4000 Generator with SPS control ..21 12.2 Spare Parts ............22 Waste Disposal ............. 25 Manufacturer Contact ..........25 BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 3: Important Information

    For information on the use of aqueous cleaning chemicals please see chapter 8. Intended Purpose This Elma ultrasonic equipment is intended for the exposure to ultrasonic waves of items and liquids only. Contact during Do not reach inside the tank during operation; do not touch Operation ultrasound-carrying parts (tank, items to be cleaned).

  • Page 4: Product Description

    This modern ELMA ultrasound equipment consists of a high- performance generator secured against open circuit and short circuit, and the connected ultrasound transducers (immersion transducers, transducer plates, tank fitted with transducers).

  • Page 5: Connections

    Malfuncion Indicator (for SPC) Remote Control SPC Ventilator HF connection Available connections on the back of the unit MF 2000 – MF 4000 Ventilator (2x) HF connections (number/output) Remote Control SPC Control Mains Input Malfunction Indicator (for SPC) © Elma Schmidbauer GmbH BA/US/MF/1202...

  • Page 6: Initial Operating

    The ultrasound is switched on by the timer switch on the generator, by remote control (optional) or by SPC control. For further information on the operation and cleaning process please refer to the relevant chapters. BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 7: Operation

    Caution: Cellular membranes will be damaged by prolonged exposure to ultrasonic activity. For prolonged periods in the working area, wear suitable ear protection, in particular at 25KHz operation. Operation Operating elements Timer Stand-by indicator selector Function Power control (2 Frequency selector (4) © Elma Schmidbauer GmbH BA/US/MF/1202...

  • Page 8: Functions

    ("off" position). 5.2.3 Power regulation The ultrasonic power is variable from 10 to 100% and is regulated by knob (2). Turning the knob clockwise increases the power. The power is automatically kept at the set level. BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 9: Operation Modes

    On multi-frequency units you can choose between a low and a high ultrasonic frequency by means of knob (4). When the knob is in neutral position 0, the ultrasonic activity is switched off. The frequency can be changed during operation. © Elma Schmidbauer GmbH BA/US/MF/1202...

  • Page 10: Remote Control (Optional)

    MF 2000 - 4000 25/45 KHz 131000268 131000274 35/130KHz 131000277 131000279 Please note: The remote control MF200 – MF 400 must be ordered with the generator. Retrofitting with a remote control at a later date is not possible. BA/US/MF/1202 © Elma Schmidbauer GmbH...
  • Page 11 Timer, power control, selection of ultrasound mode (sweep – normal – degas), selection of frequency. (For detailed information of the functions please see chapter Operation.) For operation by SPC, the available operating options are the same. © Elma Schmidbauer GmbH BA/US/MF/1202...

  • Page 12: Cleaning Process And Cleaning Chemicals

    The same applies to acids, such as hydrochloric acid, sulphuric acid or nitric acid. ELMA has a wide range of cleaning chemicals on offer developed and made in our own laboratory. The application of these chemicals help to prolong the service life of the ultrasonic unit.

  • Page 13: Cleaning

    They also contain special cavitation-assisting substances which speed up the cavitation process. Elma clean products do not damage the stainless steel surface of the tank or the immersion transducer and so help to prolong the service life of the unit.

  • Page 14: Restrictions And Safety Warnings On Cleaning Chemicals

    If they are placed by sufficient external ventilation in an appropriate separate container (example beaker glass). This can get immersed into the stainless steel tank, which has been filled with non-inflammable liquid (water with a few droplets of interlacing agent). BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 15: Warning In Respect Of Aqueous Cleaning Agents

    Corrosion damages due to such misuse are not covered by the warranty of the manufacturer. For the application of aggressive chemicals (e.g. acids, alkalines) we recommend the use of plastic tank inserts (Elma accessories). Read and follow the safety instructions on the chemicals as given by the manufacturer (e.g.

  • Page 16: Maintenance

    Strong mechanical impacts (e.g. blows, shock) can destroy the transducers and must be strictly avoided. Flanged transducer plates: Retighten all screw connections after the first 100 operating hours; then check all screw connections every 500 operating hours. The correct torque is 30 Nm. BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 17: Technical Data, Approval And Norms

    Do not use any scraping instruments. Remove furring with elma clean 60 or elmaclean 115 C : Put the chemical in the cleaning bath at the recommended concentration. Then operate the unit to increase the cleaning effect.
  • Page 18 Technical Data, Approval and Norms Technical Data BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 19: Trouble Shooting

    In case of damage please contact the manufacturer.  Repair and maintenance works on the connected and opened unit must be carried out by specialised and ELMA- authorised personnel only.  Separate the unit from the mains supply before opening it.

  • Page 20: Malfunction Of The Generator Troubleshooting

    3. Switch off the generator using the timer and switch it on again after 5 seconds. The green lamps for the remaining modules go on. The lamp indicating the switched-off module remains out. The generator can now be operated with the remaining functioning modules. BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 21: Mf 2000 - Mf 4000 Generator With Sps Control

    (timer to "0" position) pull the SPS plug  switch on the generator, turn the frequency switch to "0" (centre).  proceed as described in section 2. and 3. above  plug in the SPS plug © Elma Schmidbauer GmbH BA/US/MF/1202...

  • Page 22: Spare Parts

    Generator cpl. 35/130 KHz 230V Générateur cpl. 35/130KHz 230V Generator kpl. 35/130KHz 115V 1301000292 Generator cpl. 35/130 KHz 115V Générateur cpl. 35/130KHz 115V 1301000291 Generator kpl. 35/130KHz 100V Generator cpl. 35/130 KHz 100V Générateur cpl. 35/130KHz 100V BA/US/MF/1202 © Elma Schmidbauer GmbH...
  • Page 23 2000001098 2000001098 2000001098 2000001098 RFI-Filter 100/115V Filtre antiparasite 100/115V Axialgebläse 230V 50/60Hz 2000005305 2000005305 2000005305 2000005305 Ventilator 230V 50/60Hz Ventilateur 230V 50/60Hz Axialgebläse 100/115V 50/60Hz 3000010008 3000010008 3000010008 3000010008 Ventilator 100/115V 50/60Hz Ventilateur 100/115V 50/60Hz © Elma Schmidbauer GmbH BA/US/MF/1202...
  • Page 24 2000000913 2000000913 Switch frequency / function Interrupt. fréquence/Fonction Drehknopf Frequenz/Funktion 2000000947 2000000947 2000000947 2000000947 Knob frequency-/ function-switch Bouton fréquence/Fonction For any spare parts orders please quote type of unit and serial number of the generator. BA/US/MF/1202 © Elma Schmidbauer GmbH...

  • Page 25: Waste Disposal

    Elma Schmidbauer GmbH Kolpingstr. 1-7, D-78224 Singen Phone +49 (0) 7731 / 882-0 +49 (0) 7731 / 882-266 Homepage: www.elma-ultrasonic.com Technical Support: Phone +49 (0) 7731 / 882-280 +49 (0) 7731 / 882-253 e-mail: support@elma-ultrasonic.com © Elma Schmidbauer GmbH BA/US/MF/1202...
  • Page 26 Notes Notes BA/US/MF/1202 © Elma Schmidbauer GmbH...
  • Page 27 Notes Notes © Elma Schmidbauer GmbH BA/US/MF/1202...
  • Page 28 Notes Notes BA/US/MF/1202 © Elma Schmidbauer GmbH...

This manual is also suitable for:

Elmasonic mf 400Elmasonic mf 600Elmasonic mf 1000Elmasonic mf 2000Elmasonic mf 3000Elmasonic mf 4000
