Summary of Contents for Zest4Leisure Log and Tool Store

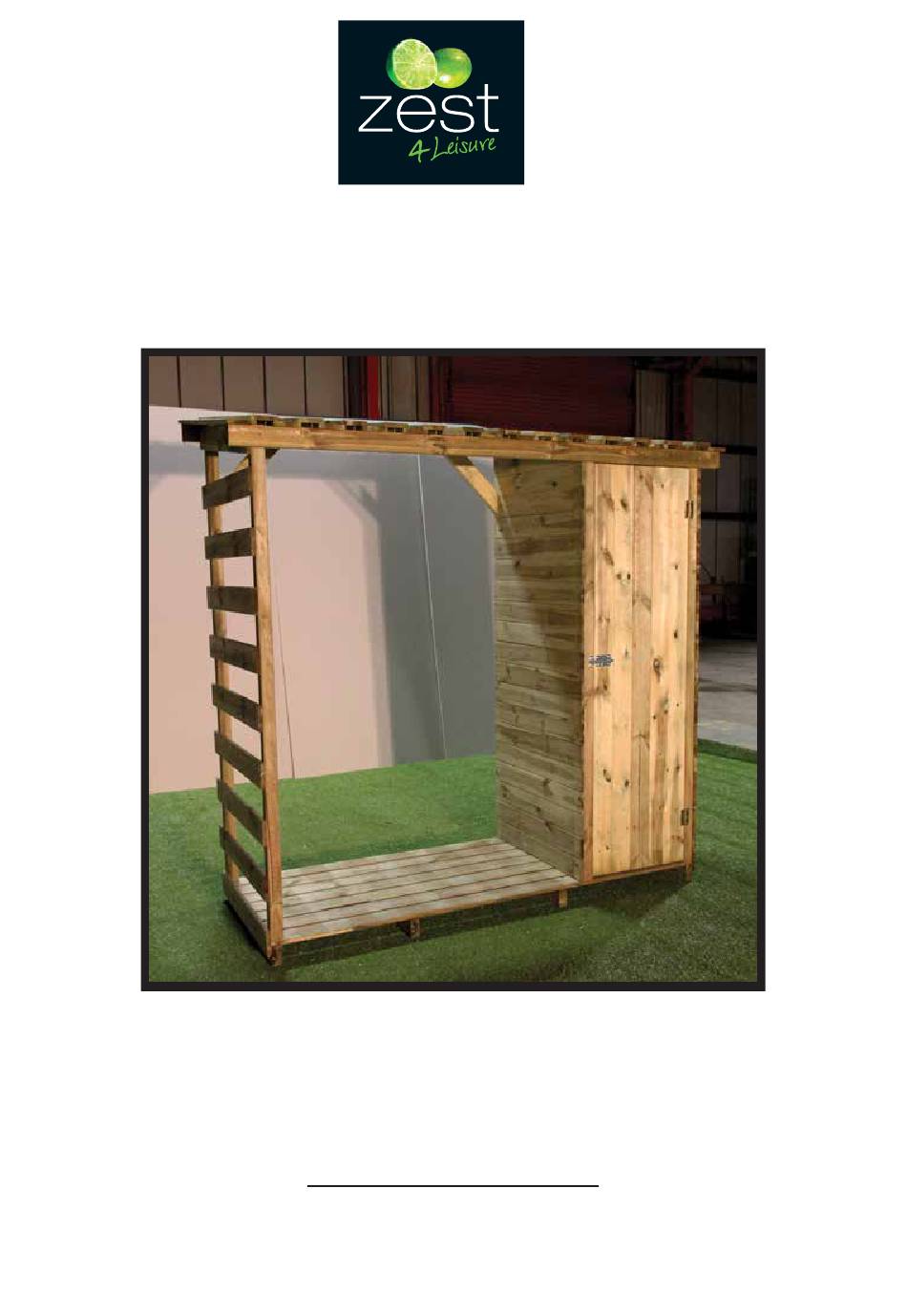

- Page 1 ASSEMBLY INSTRUCTIONS 1.87m x 0.70m x 1.90m Item Code : Log and Tool Store PLEASE KEEP THIS INSTRUCTION Zest4Leisure 08458902357 - sales@zest4leisure.co.uk...
- Page 2 Log and Tool Store Assembly Instructions Requires 2 person assembly. All screw holes to be pre-drilled. Tools required:- Corded/ Cordless Drill, Tape Measure, Pozidrive Bit/Screwdriver, 3mm Drill Bit, Spirit Level. Item Description Quantity Floor / Base Panel Slatted Side Panel...
- Page 3 Pre drill x2 bottom board of side panel and fix to base panel using 2no 45mm screws Measure 505mm from end of base. Pre drill Repeat as shown in picture 3 bottom rail of inner panel 70mm in from both ends (Marked with X) and fix using 2no 60mm screws Place panel ‘D’...
- Page 4 70mm Fix back panel ‘D’ using 6no 35mm screws. Back panel ‘D’ should be positioned 70mm lower than wall panels ‘C1’ and ‘C2’ 70mm Position roof section ‘E’ with 70mm overhang on Pre drill roof section (front and back) in line with side both sides and wall panels and attach using 6no 70mm screws...
- Page 6 10a) 10b) Hang door using 35mm screws Repeat on bottom hinge starting with top hinge 11a) Position and pre drill bracings as shown Position bracing and pre drill roof as shown 11b) 11c) Place braces as shown to the back of store and fix using 2no 70mm screws per bracing...
- Page 7 12a) Set out 6no Shelf Timbers on support battens and fix using 2no 35mm screws per board Attach tower sliding bolt to the door, align the receiver and fix using screws provided...
