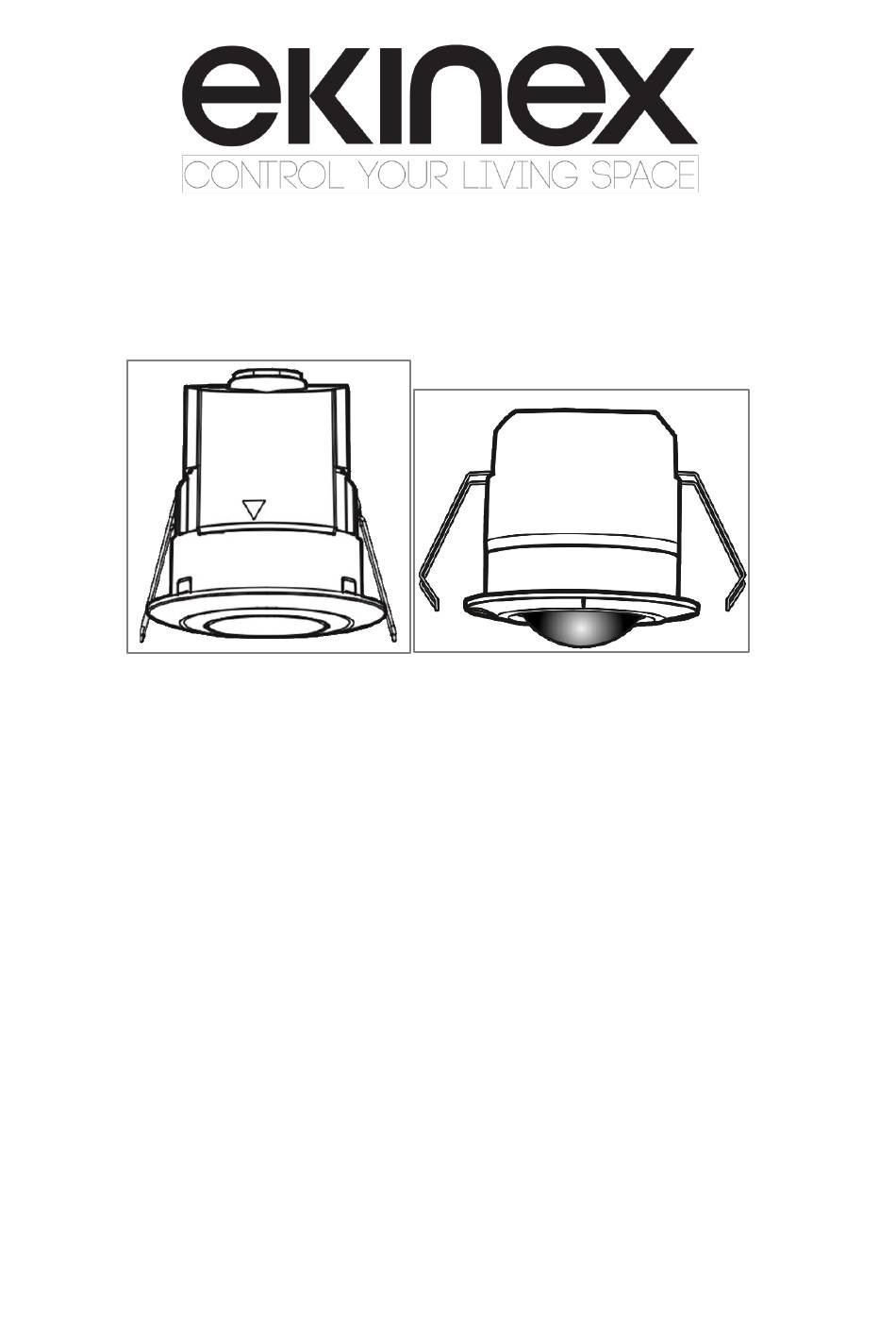

- Page 1 Application manual Indoor presence sensors EK-DF2-TP EK-DG2-TP...
-
Page 2: Table Of Contents
Other information ............................. 22 Revision Changes Date Written by Verified by Minor corrections 2020-02-06 G.Croci C. Minor corrections 2020-01-14 G.Croci C. First issue 2019-12-11 G.Croci C. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 2... -
Page 3: Scope Of The Document
Presence / movement sensors EK-DF2/DG2-TP Scope of the document This application manual describes application details for the ekinex® presence / movement sensors EK-DF2-TP and EK-DG2-TP. The document is aimed at the system configurator as a description and reference of device features and application programming. -
Page 4: Product Description

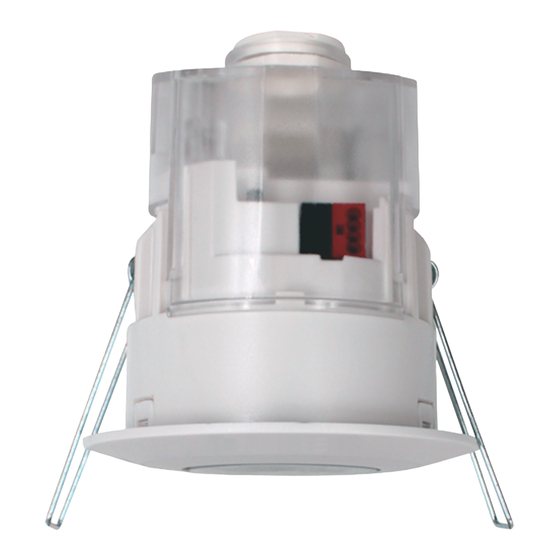

Application manual Presence / movement sensors EK-DF2/DG2-TP Product description The ekinex presence sensors EK-DF2-TP and EK-DG2-TP are flush-mount ceiling passive infrared ® (PIR) motion detectors, for the detection of movement / presence of people in indoor environments in order to drive lighting and HVAC systems. -
Page 5: Switching, Display And Detection Elements
HVAC control channels The HVAC channels act in a similar way as the Light Control channels, but without the standby time and the dependence from the light level. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 5... -
Page 6: Positioning
Positioning for EK-DF2-TP For the EK-DF2-TP sensor, at a standard mounting height of 2.5 m, presence detection range (for small movements) is about 4 meters of diameter, while movement detection range (person walking through the detection area) is about 9 meters of diameter. - Page 7 Avoid mounting the detector very close to heat sources, such as heating vents, air conditioners, lights, etc. • Avoid pointing the detector toward objects which may sway in air currents, such as curtains, tall plants, etc. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 7...
-
Page 8: Limitation Of The Detection Area
A + B Ø 5 m Ø 8 m Nessuna Ø 12 m Apply the shield by inserting its edge between the lens and the rim: Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 8... -
Page 9: Installation
The device has degree of protection IP20, and is therefore suitable for use in a dry indoor environment. The device can be flush mounted through a 65 mm (EK-DF2-TP) / 68 mm (EK-DG2-TP) diameter hole on a ceiling board with 5 mm to 25 mm thickness. - Page 10 To remove the sensor, gently pry under the external rim with a screwdriver or another flat object; once you can get a firm hold with your hands on the rim, pull gently but firmly to extract the body of sensor. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 10...
-
Page 11: Connection Of The Knx Bus Line
For the configuration of the device parameters the corresponding application program or the whole ekinex® product database must be loaded in the ETS program. For detailed information on configuration options, refer to the application manual of the device available on the website www.ekinex.com. -
Page 12: Walk Test
Repeat the procedure in other selected radial directions, particularly if a shield is applied on the lens. • Repeat the above steps until desired performance is achieved. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 12... -
Page 13: List Of Ets Parameters
Enable the alarm function and show the respective group of parameters. 13.2 Menu: Motion sensors Parameter name Conditions Values [Default] External switch Device type = Master as ON / OFF / Dim input Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 13... -
Page 14: Menus: Light Control Output C1 / C2
Standby function) and a Relative dimming object (for Constant light control). Dimming value during ON Device type = Master 1...100% [100%] phase Output type = Dimming Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 14... -
Page 15: Menus: Hvac Control Output C3 / C4
Following parameters are repeated for each of the two HVAC Control channels C3 and C4 Although not specified below, these options are only listed if the corresponding channels are active. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 15... -
Page 16: Menus: Alarm Function
Behaviour at switching on lock by communication Switch off Device type = Master object Switch on Value used as output when the alarm status is switched to ON. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 16... -
Page 17: Elenco Oggetti Di Comunicazione Ets
[1.001] Switch Light Control Output C2 = enabled C2 Light Control Dimming [5.001] Device type = Master 1 byte CR-T- value Percentage Light Control Output C2 Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 17... - Page 18 Device type = Master Lock Alarm 1 bit C-W-- [1.003] Enable Alarm function enabled Device type = Master Alarm Output 1 bit CR-T- [1.005] Alarm Alarm function enabled Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 18...
-
Page 19: Troubleshooting
Make sure there are no swaying or the detection area moving objects within the detection coverage 16 Package contents EK-DF2-TP: EK-DF2-TP Sensor Lens shield Instruction sheet Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 19... -
Page 20: Optional Accessories
Application manual Presence / movement sensors EK-DF2/DG2-TP EK-DG2-TP: EK-DG2-TP Sensor Lens shield Instruction sheet 17 Optional accessories EK-QR6-IR EK-QS3 IR remote controller Support for external mounting Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 20... -
Page 21: Dimensions
The device is maintenance-free. To clean it, use only a dry cloth; avoid the use of detergents, solvents or other aggressive substances, particularly on the lens. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved Pag. 21... -
Page 22: Disposal
KNX® and ETS® are registered trademarks of KNX Association cvba, Brussels. © EKINEX S.p.A. The company reserves the right to make changes to this documentation without notice. Rev. 1.2 - 2020-02-06 MAEKDF2DG2TP_EN © Ekinex S.p.A. – All rights reserved...
