Datwyler RND lab 560-00226 Quick Start Manual

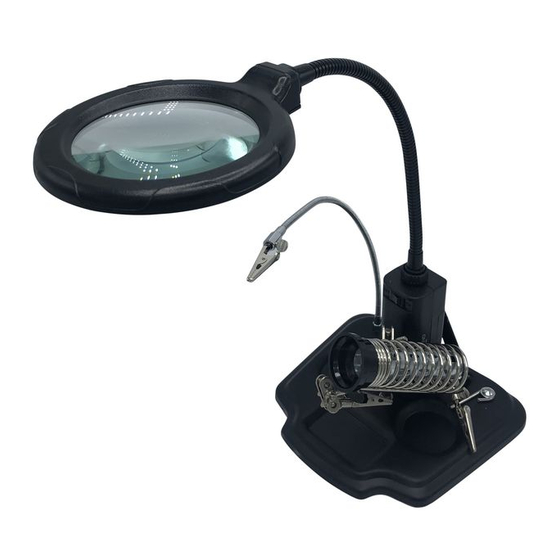

LED Magnifying Lamp with
Third Hand

Features:

The multi-purpose tool offers an excellent all-round solution, ideal for working on small PCBs,

components, soldering etc.
The magnifying lamp with integrated 3rd hand is intended for illuminating work areas and it

is equipped with a magnifying glass.
The tool also comes with soldering iron stand, alligator clips, soldering wire spool holder,

sponge, rosin, as well as cleaning ball to help with soldering.
It can be powered either by 4 AA batteries(not included) or external power

adaptor(required).

Specifications:

Magnifying glass lens size: 90mm

Magnification: 3X or (2.5X+4X)

LED illumination: 16 pieces LEDs

Neck (for magnifying glass) length: 265mm

Neck (for alligator clips) length: 250mm

Sponge size: 30x50mm

Rosin :10g

Base size: 190x170mm


Operation Instructions:

Take the lamp out of the packaging and place it on a level, even surface.

Adjust the lamp holder and the light-arm as desired.

Insert 4 AA Batteries or use the power adaptor to get the unit powered up.

The tool can also be powered by 4*AA batteries is there's no socket nearby.

Switch on the LED magnifying lamp, then start your operation.

