Installation and
Operating Manual of

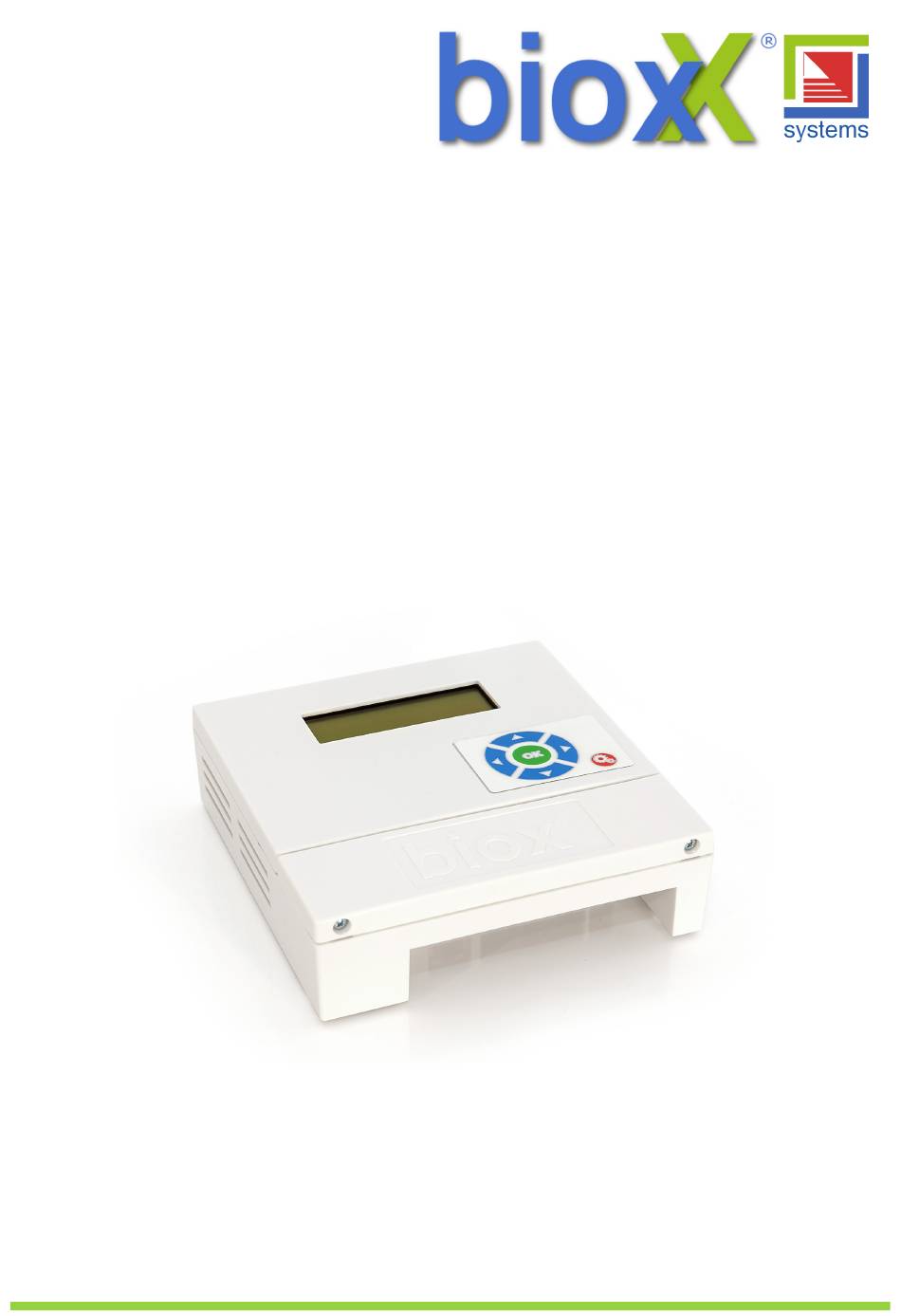

Dehumidification Control Unit
with concealed power valve
bx-ESG-UN
bx-ESG
Keep these installation instructions in safe place in the vicinity of the
control unit. When maintenance or repair work is required, it is very
important that these instructions are available.
Advertisement
Table of Contents
Summary of Contents for bioxX bx-ESG
- Page 1 Installation and Operating Manual of Dehumidification Control Unit with concealed power valve bx-ESG-UN bx-ESG Keep these installation instructions in safe place in the vicinity of the control unit. When maintenance or repair work is required, it is very important that these instructions are available.
-
Page 2: Table Of Contents
Table of ConTenTs 1. INTRODUCTION............. 3 1.1 Function Description . -
Page 3: Introduction
The bioxX dehumidifying controller bx-ESG can be used in both home and the commercial sector. Ensure that dampness due to defective construction parts, gutters, roofs etc. is avoided; this can be achieved by routine repairs. The bx-ESG can also be used for temperature control of cellars, restaurants, offices and dwellings (minimum and maximum temperature). -
Page 4: Item Check List
1 x sensor cable 10 mste • optional: 1 x coupler module • optional: 1 x coupler module Technical Data Air Conditioning System bx-ESG Electrical connection 220 -240 ~ (power supply unit) Power consumption (ESG + mains adaptor) <10 W External connection (floating contact) Max. -
Page 5: Dimensions
Dimensions Back View (Drilling Measurements) Right Side View Front View Dimensions (Width x Height x Depth): 155 x 160 x 50 mm... -
Page 6: Cable Connections
Cable Connections Network Power 9V DC indoor sensor 1 outdoor sensor indoor sensor 2 3.3 Diagrams bx-ESG: bx-ESG-UN: plug power supply (in-wall) Unterputznetzteil outdoor sensor outdoor sensor indoor sensor indoor sensor... -
Page 7: Wiring For Power Supply (In-Wall)
Wiring for Power Supply (in-wall)l Warning! When connecting the Power Supply to the controller, the polarity needs to be considered! Red Cable Black Cable... -
Page 8: Initial Setup
The interior sensor must be attached in the area with the largest humidity load. This also applies to the optional 2nd interior sensor. When using the bx-ESG as temperature control the interior sensor must be in the area with the largest thermal load (e.g. to attach within the upper part of the room). -
Page 9: Opperation Mode
Operation Mode, Dehumidifying / Temperature Control The controller can be used in two operation modes; Dehumidifying Control Temperature Control These modes of operation can be changed in the Installation Menu under “base adjustments “. A seasonal change of the mode of operation is problem-free (e.g. Winter garden). This can be done in the “Base Menu”, to get there you need to press the red button with the gears symbol Adjustable values... -
Page 10: Adjustmens
6.1 Adjustments basic-settings-menu (Red Button) settings process date/ time Set the current date and time factory reset abort reset Sprache / language set your language operating mode humidity control temperature control test run ventilation active / ventilation not active Press the OK-button to start/ stop. forced ventilation Set the timeframe for forced ventilation Display - Humidity Control... -
Page 11: Optional Accessories
Optioanal Accessories Additional indoor sensor Sensor cable Coupling module Product No: bx0520 Product No: bx0522 Product No: bx0521 In order to extend the sensor wire by 10 m, a coupling module for connection with the cable is necessary. -
Page 12: Notes / Contact Data
Notes QR Code bx-ESG bioxX systems GmbH Tel.: +49(0) 351 / 212 936 52 CEO: Karsten Butze Fax: +49(0) 351 / 418 867 549 Dresdner Str. 172, 01705 Freital www.bioxx-system.de Mobil: +49(0) 178 / 77 303 77 info@bioxx-system.de...
