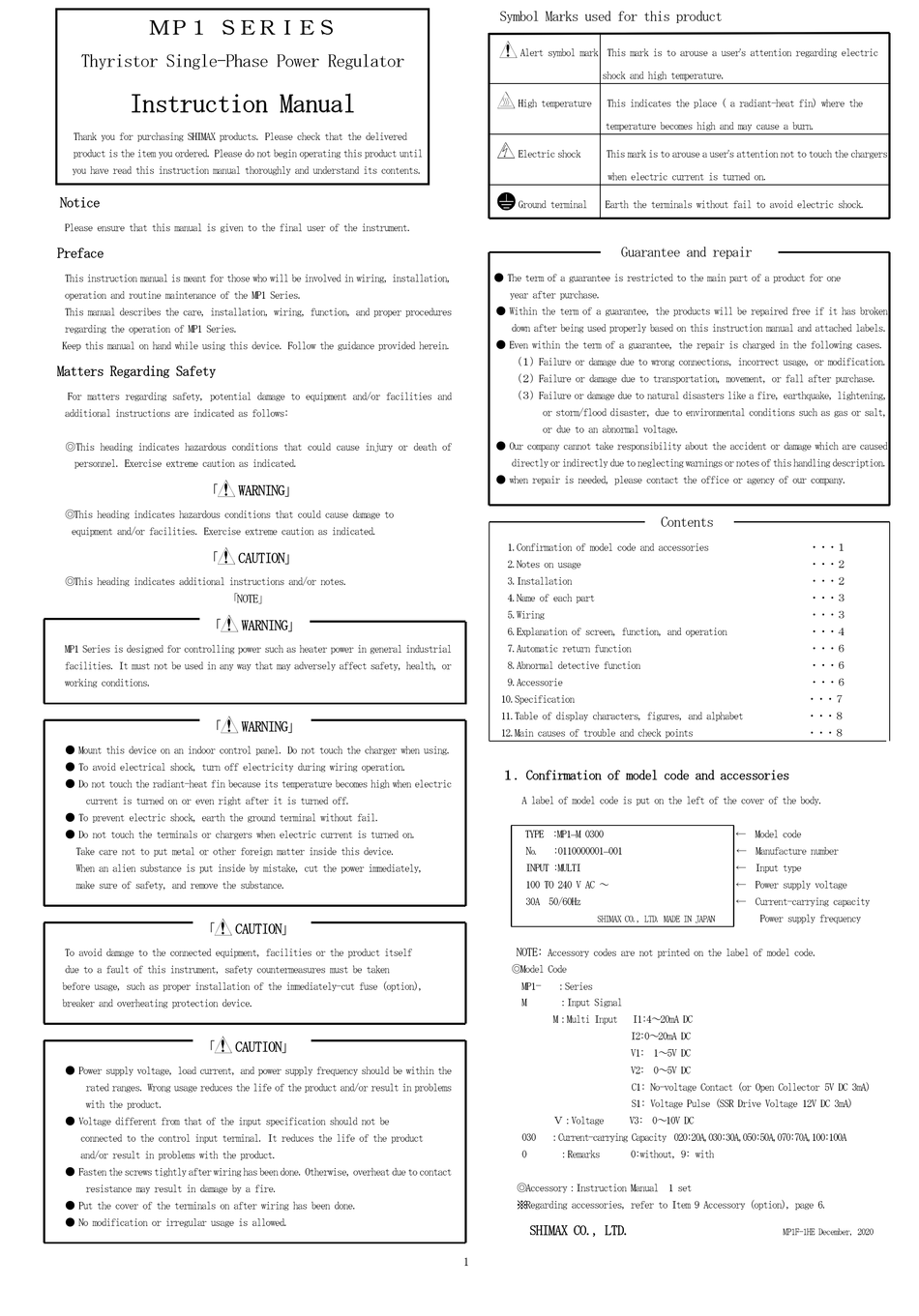

MP1 SERIES
Thyristor Single-Phase Power Regulator
Instruction Manual
Thank you for purchasing SHIMAX products. Please check that the delivered
product is the item you ordered. Please do not begin operating this product until
you have read this instruction manual thoroughly and understand its contents.
Notice
Please ensure that this manual is given to the final user of the instrument.
Preface
This instruction manual is meant for those who will be involved in wiring, installation,
operation and routine maintenance of the MP1 Series.
This manual describes the care, installation, wiring, function, and proper procedures
regarding the operation of MP1 Series.
Keep this manual on hand while using this device. Follow the guidance provided herein.
Matters Regarding Safety
For matters regarding safety, potential damage to equipment and/or facilities and
additional instructions are indicated as follows:
◎This heading indicates hazardous conditions that could cause injury or death of
personnel. Exercise extreme caution as indicated.
◎This heading indicates hazardous conditions that could cause damage to
equipment and/or facilities. Exercise extreme caution as indicated.
◎This heading indicates additional instructions and/or notes.
「NOTE」
MP1 Series is designed for controlling power such as heater power in general industrial
facilities. It must not be used in any way that may adversely affect safety, health, or
working conditions.
● Mount this device on an indoor control panel. Do not touch the charger when using.
● To avoid electrical shock, turn off electricity during wiring operation.
● Do not touch the radiant-heat fin because its temperature becomes high when electric
current is turned on or even right after it is turned off.
● To prevent electric shock, earth the ground terminal without fail.
● Do not touch the terminals or chargers when electric current is turned on.
Take care not to put metal or other foreign matter inside this device.
When an alien substance is put inside by mistake, cut the power immediately,
make sure of safety, and remove the substance.
To avoid damage to the connected equipment, facilities or the product itself
due to a fault of this instrument, safety countermeasures must be taken
before usage, such as proper installation of the immediately-cut fuse (option),
breaker and overheating protection device.
● Power supply voltage, load current, and power supply frequency should be within the
rated ranges. Wrong usage reduces the life of the product and/or result in problems
with the product.
● Voltage different from that of the input specification should not be
connected to the control input terminal. It reduces the life of the product
and/or result in problems with the product.
● Fasten the screws tightly after wiring has been done. Otherwise, overheat due to contact
resistance may result in damage by a fire.
● Put the cover of the terminals on after wiring has been done.
● No modification or irregular usage is allowed.
WARNING 」
CAUTION 」
WARNING 」
WARNING 」
CAUTION 」
CAUTION 」
Symbol Marks used for this product
Alert symbol mark This mark is to arouse a user's attention regarding electric
shock and high temperature.
High temperature
This indicates the place ( a radiant-heat fin) where the
temperature becomes high and may cause a burn.
Electric shock
This mark is to arouse a user's attention not to touch the chargers
when electric current is turned on.
Ground terminal
Earth the terminals without fail to avoid electric shock.
Guarantee and repair
● The term of a guarantee is restricted to the main part of a product for one
year after purchase.
● Within the term of a guarantee, the products will be repaired free if it has broken
down after being used properly based on this instruction manual and attached labels.
● Even within the term of a guarantee, the repair is charged in the following cases.
(1)Failure or damage due to wrong connections, incorrect usage, or modification.
(2)Failure or damage due to transportation, movement, or fall after purchase.
(3)Failure or damage due to natural disasters like a fire, earthquake, lightening,
or storm/flood disaster, due to environmental conditions such as gas or salt,
or due to an abnormal voltage.
● Our company cannot take responsibility about the accident or damage which are caused
directly or indirectly due to neglecting warnings or notes of this handling description.
● when repair is needed, please contact the office or agency of our company.
1.Confirmation of model code and accessories
2.Notes on usage
4.Name of each part
5.Wiring
6.Explanation of screen, function, and operation
7.Automatic return function
8.Abnormal detective function
9.Accessorie
11.Table of display characters, figures, and alphabet
12.Main causes of trouble and check points
1.Confirmation of model code and accessories
A label of model code is put on the left of the cover of the body.
TYPE :MP1–M 0300
:0110000001–001
INPUT :MULTI
100 TO 240 V AC ~
30A 50/60Hz
SHIMAX CO., LTD. MADE IN JAPAN
NOTE:
Accessory codes are not printed on the label of model code.
◎Model Code
-
MP1
:Series
M
:Input Signal
M:Multi Input
I1:4~20mA DC
I2:0~20mA DC
V1: 1~5V DC
V2: 0~5V DC
C1: No-voltage Contact (or Open Collector 5V DC 3mA)
S1: Voltage Pulse (SSR Drive Voltage 12V DC 3mA)
V:Voltage
V3: 0~10V DC
030
:Current-carrying Capacity 020:20A,030:30A,050:50A,070:70A,100:100A
0
:Remarks
0:without, 9: with
◎Accessory:Instruction Manual 1 set
※Regarding accessories, refer to Item 9 Accessory (option), page 6.
SHIMAX CO., LTD.
1
Contents
・・・1
・・・2
・・・2
・・・3
・・・3
・・・4
・・・6
・・・6
・・・6
・・・7
・・・8
・・・8
← Model code
← Manufacture number
← Input type
← Power supply voltage
← Current-carrying capacity
Power supply frequency
MP1F-1HE December, 2020
