TV. VIDEO. AUDIO. MECABLITZ
for 100 Hz TV sets with chassis 601-M2
When carrying out repairs, remember that various components carry mains voltage. After any work on
the set, ensure that it is electrically safe in accordance with the applicable regulations. Only original spa-
re parts may be used when replacing components or assemblies with the safety code
In order to ensure safe operation of the TV set, only original spare parts may be used when replacing
components with special specifications, which are marked with
If you move any wires or remove any covers during the course of the work, always replace them in their
original positions after completing the work.
After each repair, the TV set must be tested in accordance with VDE 0701/Part 200. For further details,
see our Technical Information No. 02/88.

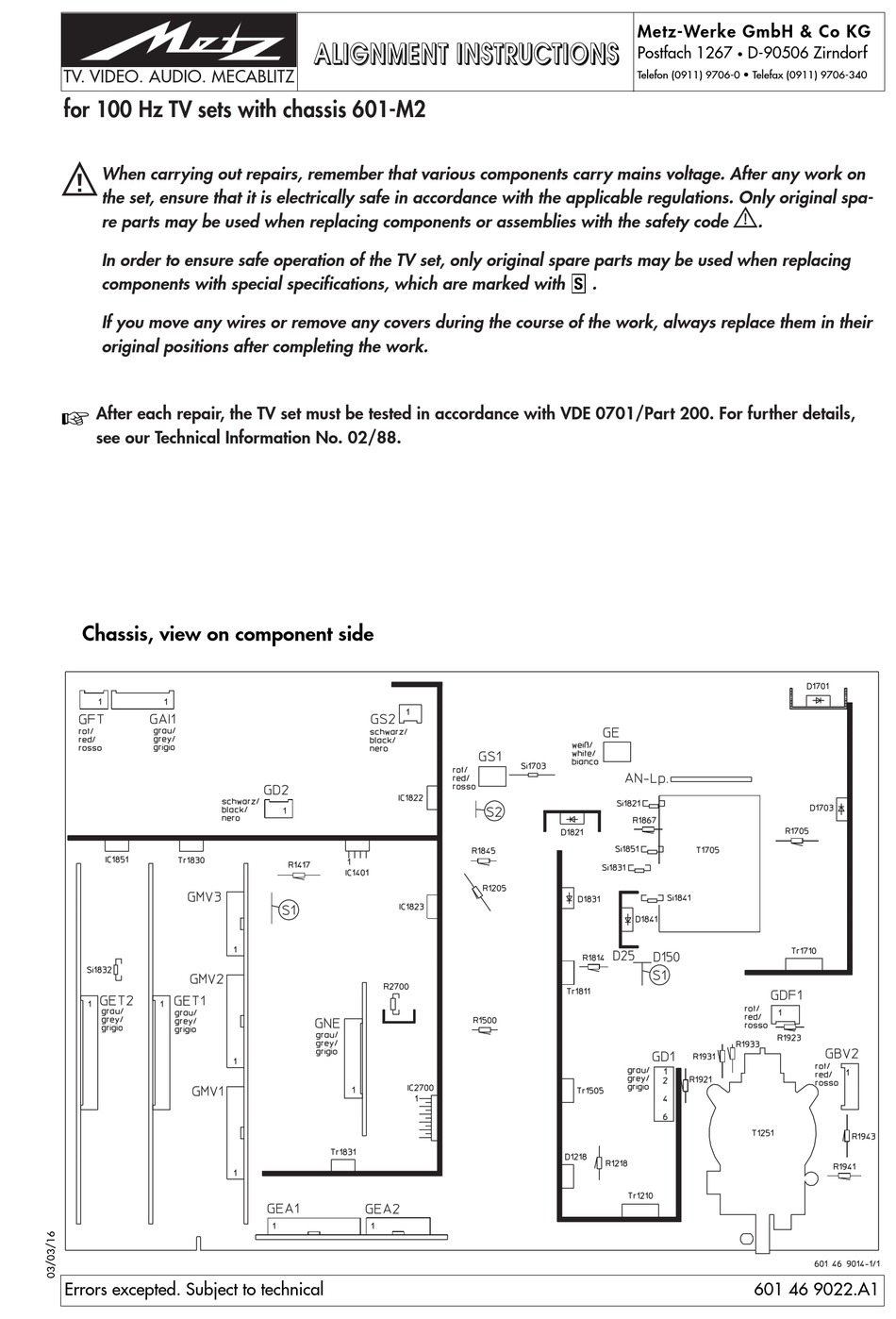

Chassis, view on component side
Errors excepted. Subject to technical
A A
L L
I I
G G
N N
M M
E E
N N
T T
I I
N N
S S
A A
L L
I I
G G
N N
M M
E E
N N
T T
I I
N N
S S
Metz-Werke GmbH & Co KG
T T
R R
U U
C C
T T
I I
O O
N N
S S
T T
R R
U U
C C
T T
I I
O O
N N
S S
Postfach 1267
Telefon (0911) 9706-0 • Telefax (0911) 9706-340
.
S
D-90506 Zirndorf
í
.
601 46 9022.A1

Advertisement

loading

Summary of Contents for Metz 601-M2

  • Page 1 TV. VIDEO. AUDIO. MECABLITZ Telefon (0911) 9706-0 • Telefax (0911) 9706-340 for 100 Hz TV sets with chassis 601-M2 When carrying out repairs, remember that various components carry mains voltage. After any work on the set, ensure that it is electrically safe in accordance with the applicable regulations. Only original spa- í...
  • Page 2: Service Menu

    Table 1. If there are no faults, the high on with the main power switch. voltage should then be as shown in the table: - The service menu is now displayed. The software ver- sion number is displayed below the Metz logo. D 138 High U m *)
  • Page 3 3.1 Adjustment 3.1.1 Adjusting the screen-grid voltage Ug2 12 V The screen-grid voltage of the CRT is set to a 22 k value which depends on the model and should not be changed. The only exception to this is if you have replaced the diode split transformer, the CRT, the BV module or the KS module.
  • Page 4 3.1.6 SVM factor and SVM phase 3.3 Picture geometry (no internal test pattern possible) Selecting factory or table values: The menu items "SVM factor" and "SVM phase" are automatically adjusted after initialisation of the Explanation: EEPROM. Basic geometry values: The current picture geometry settings.
  • Page 5 • Extreme corner correction 4.2 Standby control • Vertical linearity: adjust with the - + key so that the In standby mode, the power supply unit operates in pul- sed mode. The power supply unit is switched on for amplitudes of the top, middle and about 20 ms and then switched off for about 400 ms.
  • Page 6 4.4 Service notes for the horizontal output stage All supply voltages derived from the horizontal output stage are protected by means of fuse-resistors which disconnect the defective circuit section from the diode split transformer in the case of a fault. For faultfinding in the deflection circuit, the horizontal output stage can be operated with a reduced supply voltage by unsoldering the service strap S1 and...
  • Page 7 Designation Normal operation Operation without Standby mode Circuits supplied H deflection • TV mode • AV copying • (eco) standby • SAT mode • SAT recording • service standby • AV playback • SAT radio SM voltages D140 140V ± 1V •...
