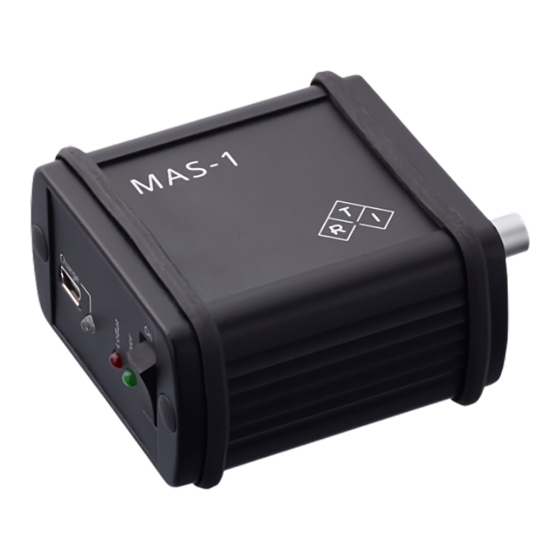

Invasive Tube Current Probe Adapter
User's Manual - English - Version 2019.12A
RTI Group AB reserves all rights to make changes in the RTI MAS-1 and the information
in this document w ithout prior notice.
RTI Electronics AB assumes no responsibility for any errors or consequential damages
that may result from the use or misinterpretation of any information contained in this
document.
Copyright © 1993-2019 by RTI GroupAB. All rights reserved.
Content of this document may not be reproduced for any other purpose than supporting
the use of the product w ithout prior permission from RTI.
Contact Information -
World-Wide
RTI Group AB
Flöjelbergsgatan 8 C
SE-431 37 MÖLNDAL
Sweden
Phone: Int. +46 31 7463600
E-mail
Sales: sales@rtigroup.com
Support: support@rtigroup.com
Service: service@rtigroup.com
Web site: http://www.rtigroup.com
RTI MAS-1
RTI article number: 9630509-00
Contact Information -
United States
RTI Electronics Inc.
33 Jacksonville Road, Bldg. 1,
Towaco, NJ 07082
USA
Phone: 1-800-222-7537 (Toll free)
Int. +1-973-439-0242
E-mail
Sales: sales.us@rtigroup.com
Support: support.us@rtigroup.com
Service: service.us@rtigroup.com
Web: http://www.rtigroup.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RTI MAS-1
Summary of Contents for RTI MAS-1
- Page 1 Invasive Tube Current Probe Adapter User's Manual - English - Version 2019.12A RTI Group AB reserves all rights to make changes in the RTI MAS-1 and the information in this document w ithout prior notice. RTI Electronics AB assumes no responsibility for any errors or consequential damages that may result from the use or misinterpretation of any information contained in this document.
- Page 2 Contents Intended Use of the RTI MAS-1 Together w ith instruments from RTI Group AB it is to be used for independent service and quality control, as w ell as measurements of kerma, kerma rate, kVp, tube current, exposure time, luminance, and illuminance w ithin limitations stated below .
-
Page 3: Table Of Contents
Note! For a full description of the Piranha or Cobia, see the Piranha or Cobia Reference Manual. That Manual can be found on the Product USB or be downloaded from RTI's website (www.rti.se). 2019.12A RTI M AS-1 User's M anual... -
Page 4: Introduction
90 V relative to the ground level which makes it accept most manufacturers’ current signals. The RTI MAS-1 can measure from 0,1 mA to 3000 mA, when used together with the Piranha or Cobia. By using Free-run or Timed update modes the RTI MAS-1 is able to measure even lower. -
Page 5: Function And Connection
SAFETY PRECAUTIONS for more safety rules. · Now connect the RTI MAS-1 to the detector input of the Piranha or Cobia using the included cable. Attach the round Lemo female connector to the connector that is 2019.12A RTI M AS-1 User's M anual... -
Page 6: Battery And Charging
Finally you need to flip the power switch to Off/Charge. Note that you cannot use the RTI MAS-1 while it is charging. If the yellow LED at the back is lit it indicates that the battery is charging. When the yellow LED switches off the RTI MAS-1 battery is fully charged. -
Page 7: Measurements
It is typically shown in the unit "mA". Tap Reset, then "0" should be displayed. The offset adjustment procedure for Piranha or Cobia is finished and the RTI MAS-1 is ready for measurements. Now just perform an exposure and the QABrowser will show you readings of tube current (mA) and tube charge (mAs). - Page 8 Piranha or Cobia, ground loops may arise that generates ground currents that affects the measurements. It is recommended to connect wirelessly between the PC and meter, or run a laptop PC on battery. RTI M AS-1 User's M anual 2019.12A...
-
Page 9: Safety Precautions General Rules
Only use the RTI MAS-1 if you are authorised to make invasive measurements using the X-ray generator mAs measuring socket. • Please be aware that high voltage may exist on the RTI MAS-1 if the cable connection between RTI MAS-1 and the X-ray generator mAs socket is broken. •... -
Page 10: Specifications
4. SAFETY PRECAUTIONS General Rules SPECIFICATIONS General Specifications for RTI MAS-1 Specifications are valid after a warm-up time of one minute and presuming reference conditions. Reference conditions Temperature 20 °C Relative humidity 50 % Specifications Current range 0.1 - 3000 mA Charge range 0.001 - (at least) 9999 mAs... -
Page 11: Index
- W - Calibration f actor Weight Capacitance in the HV cable Work f low Charging - Y - Connection of the RTI MAS-1 - D - Y ellow LED 5, 6 Dimensions - E - Extension cable - F -... - Page 12 Notice Notes RTI M AS-1 User's M anual 2019.12A...
