Summary of Contents for ADE ROBUSTA Series

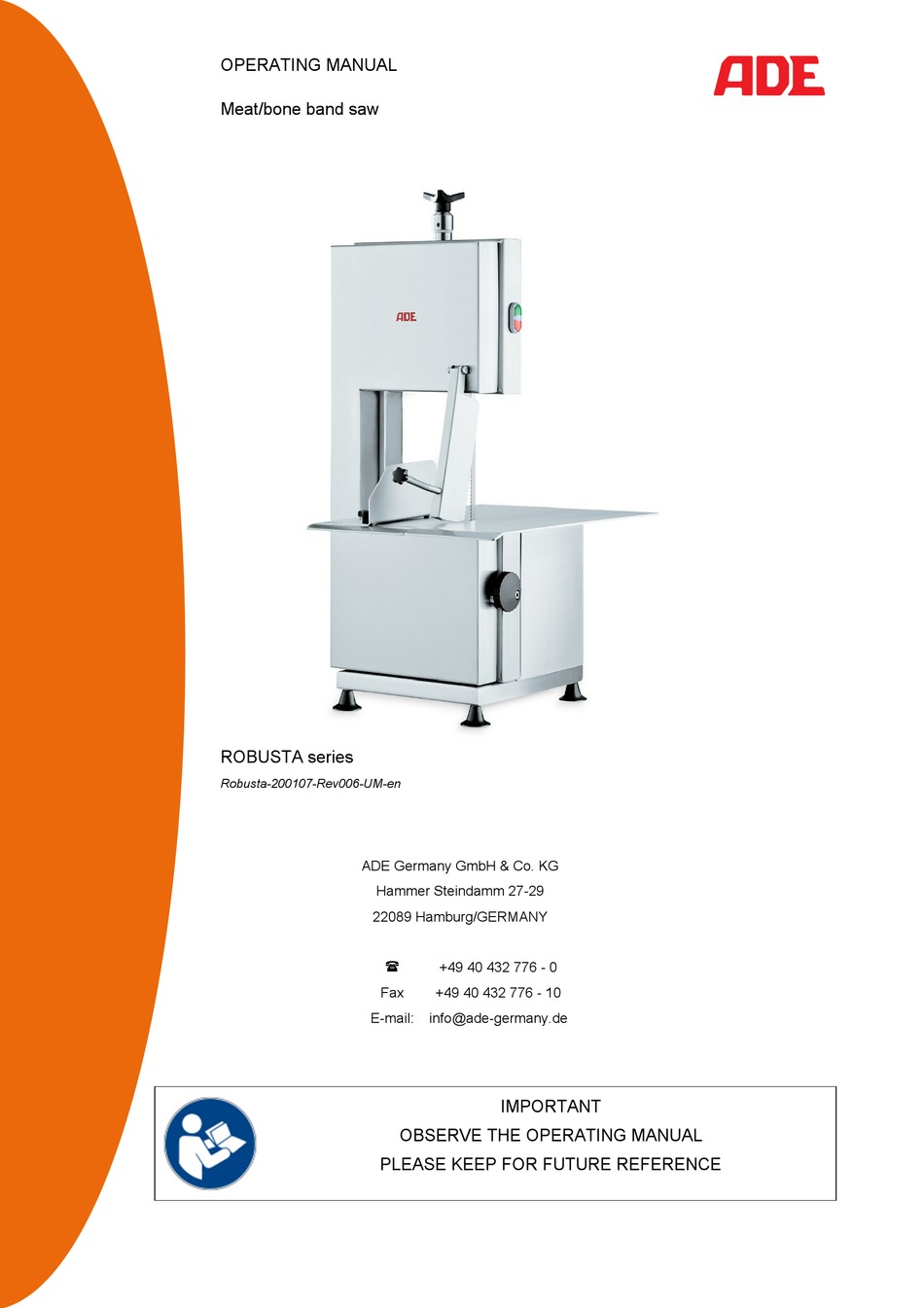

- Page 1 OPERATING MANUAL Meat/bone band saw ROBUSTA series Robusta-200107-Rev006-UM-en ADE Germany GmbH & Co. KG Hammer Steindamm 27-29 22089 Hamburg/GERMANY +49 40 432 776 - 0 +49 40 432 776 - 10 E-mail: info@ade-germany.de IMPORTANT OBSERVE THE OPERATING MANUAL PLEASE KEEP FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS About this operating manual ....................2 General information ....................... 2 Storage ..........................2 Target group .......................... 2 Explanation of symbols ......................2 Intended use ..........................3 Safety instructions ........................3 General safety instructions ....................3 Danger from electricity ......................3 Warning of risk of injury ...................... -
Page 3: About This Operating Manual
About this operating manual General information This operating manual describes the safe operation as well as the handling, care and maintenance of the machine. Only compliance with the operating manual is considered to be proper use. Therefore, read this operating manual carefully before connecting and using the machine. Failure to observe this operating manual may result in injuries or damage to your product. -
Page 4: Intended Use
Intended use This meat/bone band saw is used for cutting bones, fresh or frozen meat with or without bones, and fresh or frozen fish, whole or filleted. Goods other than those mentioned above may not be processed. The products to be processed are placed on the work table. They may only be guided against the saw band with the aid of the pressing device. -
Page 5: Warning Of Risk Of Injury
Unplug the power cord from the mains outlet: o if you are not using the machine, o before cleaning or servicing the device, o if there appears to be a malfunction during operation, o during thunderstorms. Do not modify the machine or power cord. Only have repairs carried out by a specialist workshop, as improperly repaired machines endanger the operator. -
Page 6: Scope Of Delivery
Scope of delivery Check the scope of delivery for completeness immediately after receipt of the machine. Carefully remove the machine and accessories from the packaging and remove all packaging materials. Included in the delivery are: Bone band saw Operating manual with declaration of conformity Installation and commissioning Set up Place the bone band saw on a flat, smooth and vibration-free surface. -
Page 7: Device Overview
Device overview The machine consists of: Rotary handle for unclamping/tensioning the saw band START/STOP switch with operating lamp Pressing device Saw band Scoop Cutting table Access door to rollers Door interlock Upper roller Roller scraper unit Saw band scraper unit Lower roller (drive) Robusta-200107-Rev006-UM-en... -
Page 8: Safety Devices And Operating Elements
Safety devices and operating elements Working posture The user should always stand in front of the machine to be protected by the machine's safety devices. Never wear the following when using the machine: Clothing with wide sleeves Ties Scarves Bracelets Rings Watches Loose hair... -
Page 9: Power On/Off
Power on/off Symbol Description Function Press this switch to turn on the machine. The saw START switch band starts to run. The operating lamp lights up as soon as and as long Light as the machine is switched on. Press this switch to turn off the machine. Press this STOP switch button to stop the machine. -
Page 10: Cleaning And Maintenance
Cleaning and maintenance Cleaning Disconnect from the mains! Before cleaning, switch off the machine and unplug the power cord. Attention! When cleaning, there is a risk of cutting yourself even on a resting saw blade! Take extreme care. We recommend that you wear suitable cut-resistant gloves. Attention! It is forbidden to use cleaning agents that are not suitable for objects and accessories that may come into contact with people or food. -
Page 11: Maintenance
Maintenance Qualified staff! The following activities may only be carried out by qualified, technically experienced personnel. Disconnect from the mains! Before maintenance, the machine must be switched off and the mains plug must be pulled out. Attention! During maintenance, there is a risk of cutting even on a stationary saw blade! Take extreme care. -
Page 12: Troubleshooting
Attention! If the position of the saw band has changed, there is a risk that the saw band will slip off the rollers during operation. For an adjustment of the rollers, please contact the authorised service partner. Aligning the saw band To prevent the saw band from jumping off the rollers during operation, the saw band must be aligned as shown. -
Page 13: Transport
12. Warranty ADE will repair or replace this product if it has failed within 1 year from the date of purchase (proof of purchase is required) due to poor workmanship or defective material. The above does not apply to all moving parts such as a saw band, a scoop, etc. The warranty does not apply to the normal appearance of usage or signs of wear or any damage caused by accidents or misuse. -
Page 14: Ce Marking And Declaration Of Conformity
The declaration will be void if a change that was not agreed with us has been made on the machine. Hamburg, December 2019 ADE Germany GmbH & Co. KG Hammer Steindamm 27-29 D-22089 Hamburg Robusta-200107-Rev006-UM-en... -
Page 15: Technical Data
14. Technical data Model Robusta-230 Robusta-400 Band length 1700 mm 1700 mm Band speed 17.3 m/s 17.3 m/s Cutting area 195 x 227 mm 195 x 227 mm Work table 400 x 500 mm 400 x 500 mm Dimensions 545 x 510 x 816 mm 545 x 510 x 816 mm Power 0.75 kW... -
Page 16: Circuit Diagrams
15. Circuit diagrams 230V: 400V: Robusta-200107-Rev006-UM-en... - Page 17 Robusta-200107-Rev006-UM-en...
-
Page 18: Exploded Views
16. Exploded views 17. Spare parts lists DESCRIPTION QUANTITY ITEM NO. Circuit board 9+10+41+42 Switching unit Lower impeller 14+15 Right-hand scraper 14+16 Left-hand scraper Motor 230V Motor 400V Rubber disc Upper impeller Pressing device Clamping slide Robusta-200107-Rev006-UM-en... - Page 19 Robusta-200107-Rev006-UM-en...
- Page 20 Distributor: Robusta-200107-Rev006-UM-en...
