Tefi Vintage Lab Ms. DELAYETTE Operating Manual

TECHNICAL SPECIFICATIONS

Dimensions
Weight
Enclosure material
Input Impedance
Output Impedance
Min-Max Time
Exp. Pedal for "Motor Speed"
control
Pedal for "Feedback" activation
Signal switching
Supply voltage/
Power consumption
Power connection/ground type
www.tefivintagelab.it
Tefi Vintage Lab is pleased to welcome you to our family. We hope you
enjoy using our new Ms. Delayette analog tape voiced echo/reverb.
Feel free to get in touch for any suggestions or clarifications as to how
you might best use the effect. Play music and enjoy using our pro-
ducts!

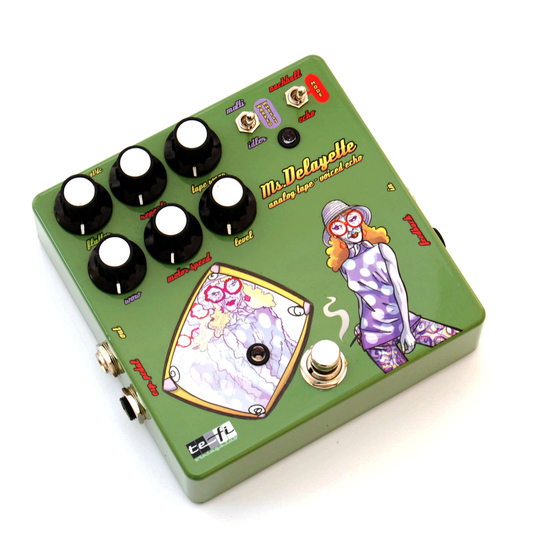

Mistress Delayette - Analog Tape Voiced Echo
The soul of a veteran magnetic echo today lives on enclosed in a mo-
dern boutique pedal. Mistress Delayette, queen of Germanic beauty
in the 60s and today an elderly but still very attractive, symbolizes
the still current charm of the echo and reverb sounds typical of vinta-
ge magnetic units such as the Binson Echorec, Echolette NG51S, and
Maestro Echoplex EP-1. In the machines of that period, high fidelity
repetions was sought; because of their mechanical nature, without
accurate and constant maintenance, these effects tend to have pro-
120x127x53 mm
450gr.
Alluminio, die cast
700 kOhm
470 Ohm
60-850 ms in "Echo" mode
50-100 kOhm voltage divider
connected (es. Korg EXP-2)
Momentary or Bistable
True-bypass
9Vdc/ca.700mW
(I-max= 80mA @9Vdc)
Negative tip/negative ground
Ms. DELAYETTE Operating Manual
blems related to the tape dragging, that generate their unique and di-
stinctive sounds. The TEFI Vintage Lab research team has created an
echo/reverb pedal effect with a Hi-Fi response, but with the possibility
of being altered by simulating the aging of the machine with the WOW
and FLUTTER commands that are completely analog and specially
calibrated to obtain maximum realism of reproduction. Two modes of
operation, the classic Echo and the Nachhall, where a second virtual
reproduction head is added, multiplying the repetitions similar to
the multiple reflections of many walls where each one characterized
by a different response. The Nachhall mode is useful for reverb and
slap back echo effects. It is possible to connect two external controls:
an expression pedal to change the frequency of repetitions (motor
speed), while a switch-momentary pedal can trigger instantaneous
self-oscillation (feedback). Ms. Delayette will take you to unexplored
worlds, with natural sound, versatility, and a wealth of functions.
