Digifly Flyer User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Vl100
flyer
rev 1.3 firm 7.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flyer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digifly Flyer

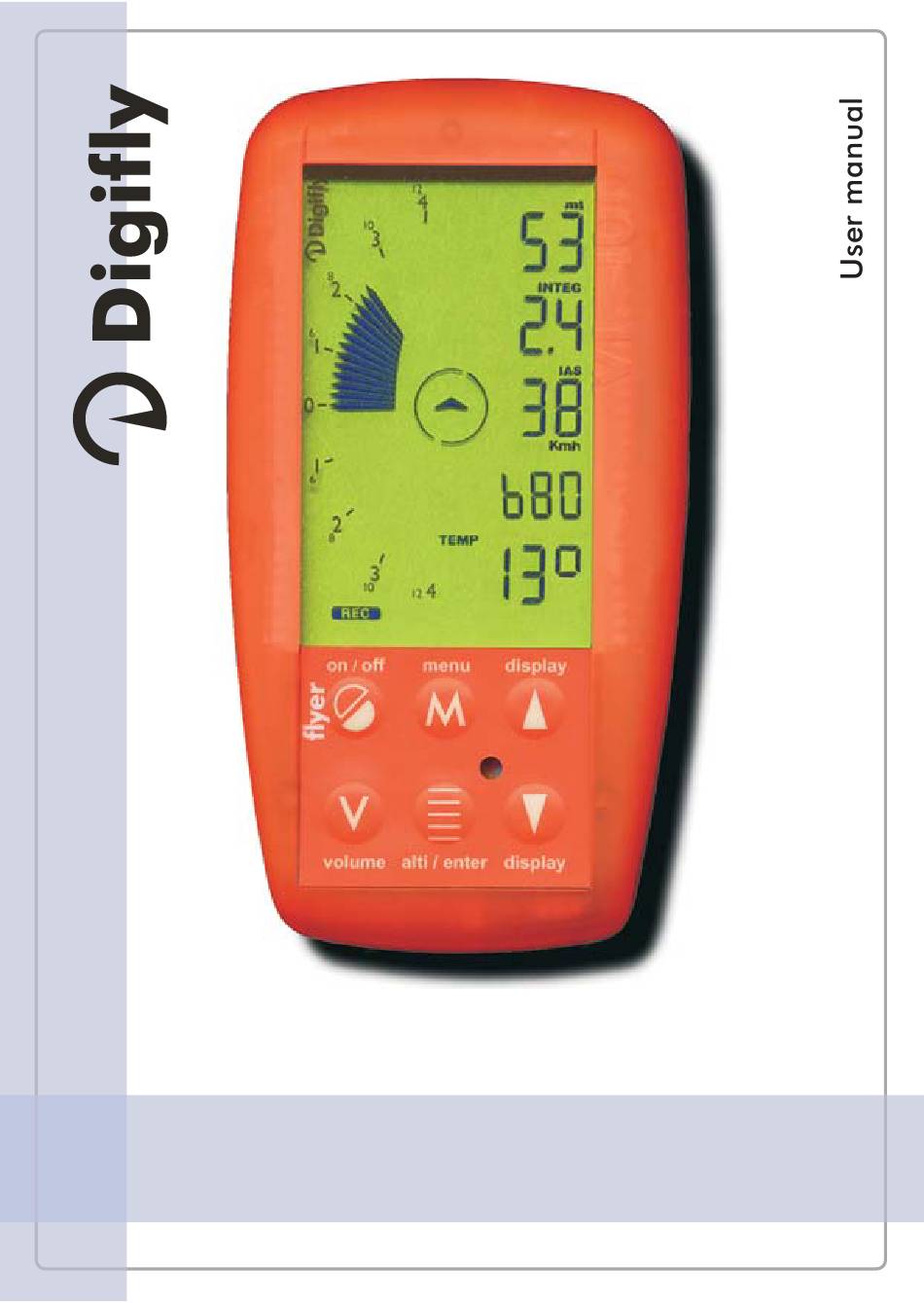

  • Page 1 Vl100 flyer rev 1.3 firm 7.1...
  • Page 2 - damage is caused by accidents including but not limited to lightning, water or fire, misuse or neglect. In case your Digifly product is not working correctly or is defective, please contact your Digifly dealer. In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting your dealer.

  • Page 3: Table Of Contents

    INDEX 1. Keyboard ……………..……….…....... Page 3 1.1 Turning on / off ....….…..Page 3 1.2 Normal / long key pressure ....... Page 3 1.3 Menu and setup navigation ..…....Page 3 2. Instruments ……….....………………….…..Page 4 2.1 Altimeters ........... Page 4 2.2 Variometers ..………..……...………....

  • Page 4: Keyboard

    1. Keyboard 1.1 Turning on/off To turn the unit on, press and hold the key for at least 3 seconds. To turn the unit off, press and hold the key for at least 3 seconds. The unit cannot be powered back on until about 5 seconds after it has been powered off.

  • Page 5: Instruments

    , then press and hold pressed the key until hearing a triple sound. Variometers 2.2.1 Intellivario Revolutionary system designed by Digifly based on use of a sophisticated digital circuit. This produces a noise-free vario with a very high sensitivity (adjustable with the parameter n.4...

  • Page 6: Acoustic Vario

    the parameter n.5 inte (in seconds) in the setup submenu. 2.2.4 Acoustic Vario Indicates the instantaneous values of the vertical speed with modulated acoustic frequency. The adjustable volume has three levels settable by pressing the key. To set up the climb threshold modify parameter n.1 v-up , for the descent threshold modify...

  • Page 7: Barometer

    Barometer To select on the multifunction display the barometer reading press the . In case of small errors is possible to calibrate the barometer editing the parameter n.9 kbar (in 0.1 mB steps) in setup submenu. Warning!!! The wrong use of this function makes the measurements of the barometer and altimeters less accurate.

  • Page 8: Units Of Measure

    When this comes down under 20 hours, a flashing “ low bat “ message is displayed on the multifunction display. Warning!!! Insert new batteries within a minute from the removal of the old ones in order to avoid the loss of the Date and Time data. In this case adjust them again ( see 2.6).

  • Page 9: Link-Pc

    PC via the “PC CABLE” or the “FlashPro100” unit. Turn on the PC and the Vl100 , select the menu “LINK” in the Vl100 . The VL100 is now connected to your PC and ready to accept commands from your Pc Software. ( visit www.digifly.com for more Page 8...

  • Page 10: Upgrade Software

    information). Software Upgrade The software for to the Vl100 instrument can be upgraded to include new functions and/or improvements. This operation can be performed in simple and economic way, directly from your PC via acces to the Internet and the appropriate optional "FlashPro100 " cable/interface unit Technical features 3 altimeters 9000 mt (29527 ft) with adjustable QNH...
  • Page 11 cable/interface. Variable units of measure Battery life 200 h Dimensions 135x72x37 mm Weight 200 g (battery included) 2 Years warranty Page 10...

  • Page 12: Notes

    Notes Page 11...
  • Page 13 Notes Page 12...

  • Page 14: Functions Of The 7.1 Version Compared To The 6.9

    Functions of the 7.1 version compared to the 6.9 Automatic start of "Peak recorder”. The new function of the Flyer allows through the parameter 15 AUTR to select the starting recording modality. The three regulations are: Manual Start (see instructions).

  • Page 15: Quick Reference Setup Parameters

    Quick reference - Setup parameters - menu SET Name Description Range Default Unit vert.spd up threshold 0 ÷ 250 1 0.1 m/s v-up vert.spd down threshold 0 ÷ 250 1 0.1m/s v-dw vert.spd sound tone 0 ÷ 2 soun vert.spd sensitivity 1 ÷...
  • Page 16 Quick reference analogue Altimeters 1 Vario Altimeters 2 Altimeters 3 Battery State Integr. vario ex: b80 = 80% Air speed . Menu Display multif. Batteries volt. .. On/off Barometer 5sec Thermometer time / chrono . Volume off/ med/max . Display + .
