Quick Start Guide
The SD transcoder receives the MPTS output of the main transcoder receiver via IP multicast.

Step 1: Connections/Power

1. ASI output: connect the ASI cable to the rear of the SD encoder, on port 2
2. Connect an Ethernet cable to the rear of the SD transcoder on eth0 for management and UI access
3.a. For installations using IP outputs (with or without ASI output):
• Connect an Ethernet cable from eth2 of the main transcoder to the IP switch.
• Connect an Ethernet cable from eth2 of the SD transcoder to the same IP switch
3.b. For installations using ASI outputs only:
• Connect an Ethernet cable from eth2 of the main transcoder to eth2 of the SD transcoder
4. Connect the power cord to the back of the SD encoder
power up the appliance.
NOTE: See back panel connector locations on next page.

Step 2: Configure the network interfaces

The Ethernet interfaces can be configured using the LCD panel:
Navigate to the Main menu > Network submenu using the UP, DOWN, LEFT and RIGHT buttons.
1.
2. Select Eth0 for the Management network address then use the UP and DOWN buttons to adjust the value.
3. Select Eth2 for the Data network address then use the UP and DOWN buttons to adjust the value.
4. Press ENTER to apply the new values.

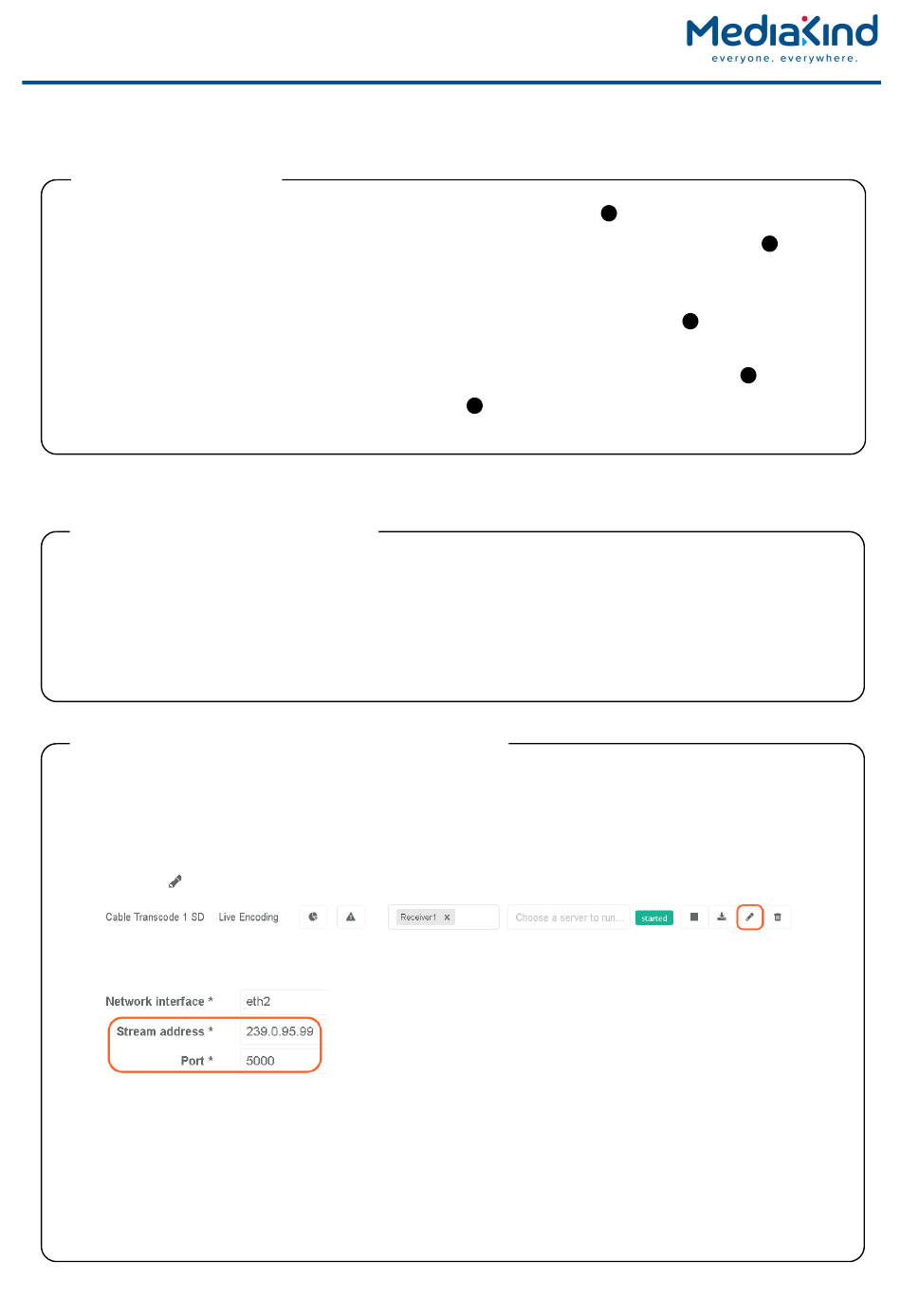

Step 3: Log in to the unit and set up the Transcoder inputs

1. Launch a web browser:
HTTP://{IP-Address}
2. When the Login page displays, login with username admin and password admin.
3. Navigate to the Services Page.
4. Click the button to configure each Transcoder service:
5. On the Input tab, set the multicast destination to that set on the output of the main transcode receiver.
The default is 239.0.95.99 port 5000:
IMPORTANT: Do not change any other parameters.
6. Click Save and Exit.
Result: The transcoder service will restart.
7. Repeat steps #4 to #6 for each of the transcoders.
IMPORTANT: Set them to the same multicast destination.
Result: MPTS output containing all the SD programs is now available on the ASI output.
where {IP-Address} is the Management network address set in Step 2.
