Summary of Contents for Batavia PSR-5014

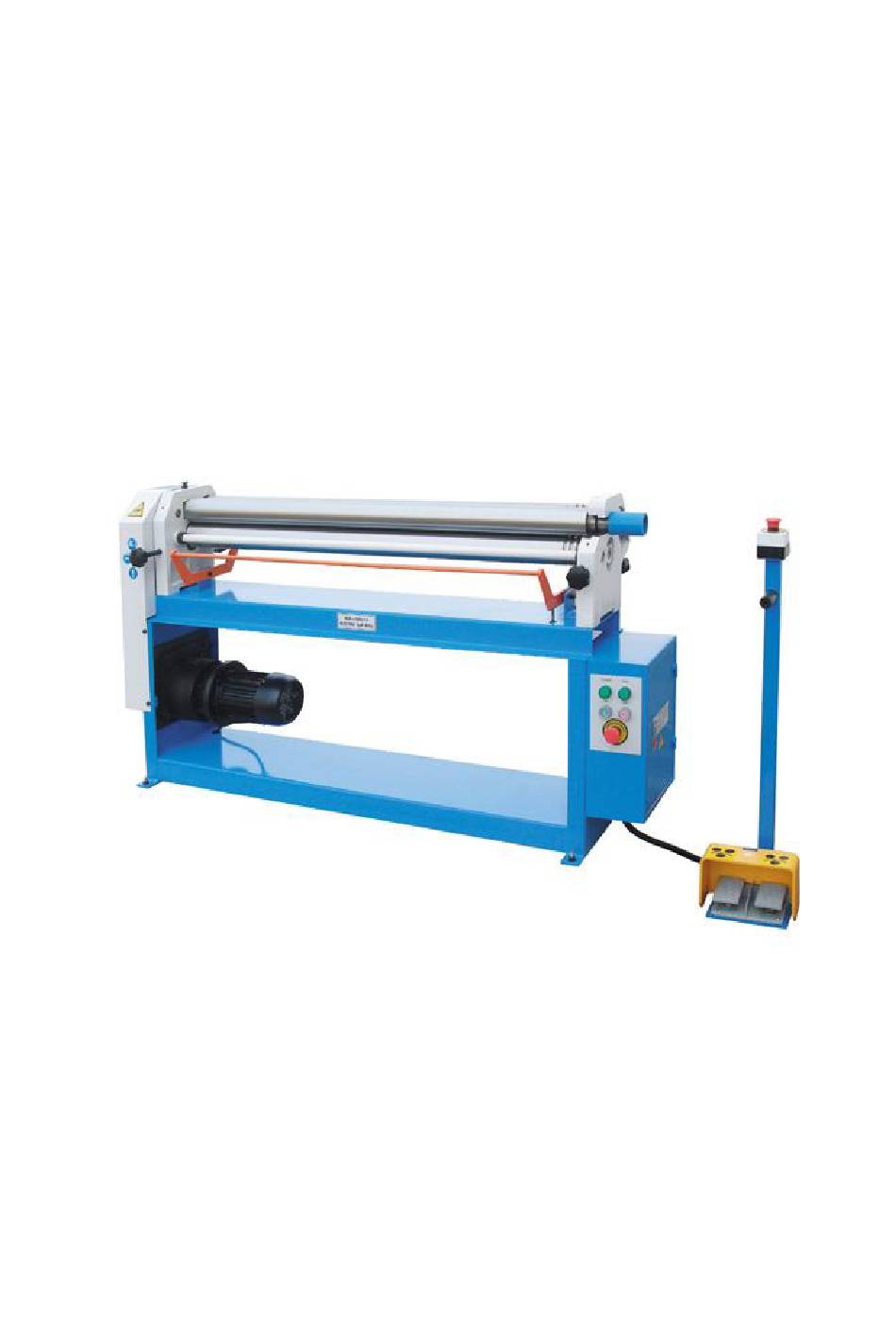

- Page 1 GMC Power Slip Roll MODEL: PSR-5014 50” x 14 Ga. BATAVIA MACHINERY - 877-528-2809 BATAVIA MACHINERY - 877-528-2809 Operation Manual...
-
Page 2: Machinery General Safety Warnings
1650x530x960(mm) Weight 350kg 440kg BATAVIA MACHINERY - 877-528-2809 II Machinery general safety warnings 1. Misuse of this machine can cause serious injury. For safety, machine must be set up, used and serviced properly.Read, understand and follow instructions in the operator’s and parts manual which was shipped with your machine. - Page 3 BATAVIA MACHINERY - 877-528-2809 5. AFTER HALF CIRCLE- has been formed, reinsert the formed end of the material in to the roller(as follows illustrated) and turn operating handle in a clockwise direction to form a complete circle.
-
Page 4: Electric System
BATAVIA MACHINERY - 877-528-2809 located in the front and two located in the rear) have been built into the left and right side frames. The two front adjusting screws enable the operator to raise or lower the pinch roll, so that the correct gap between the upper and lower pinch roll may be obtained to feed the desired stock in to the machine. - Page 5 BATAVIA MACHINERY - 877-528-2809 1) The indicator lights, the machine can’t work when pedal down the starting pedal, then turn off the lash-up switch on the handle. 2) The indicator doesn’t light, then combine the breaker in the electric appliance box.
- Page 6 BATAVIA MACHINERY - 877-528-2809 BATAVIA MACHINERY - 877-528-2809...
- Page 7 BATAVIA MACHINERY - 877-528-2809...
- Page 8 Link Plate for Motor Worm Rod Gear Lock Spring Driver Gear Flat Washer Driven Gear Chain Gear Wheel Shaft Emergency switch Washer Pole Adjusting Washer Box cover Bolt for Adjusting Roller Pedal switch Bolt for Auxiliary Roller BATAVIA MACHINERY - 877-528-2809...
- Page 9 Note: This manual is only for your reference. Owing to the continuous improvement of the machine, changes may be made at any time without obligation on notice. And please note the local voltage while operating this electric machine.
