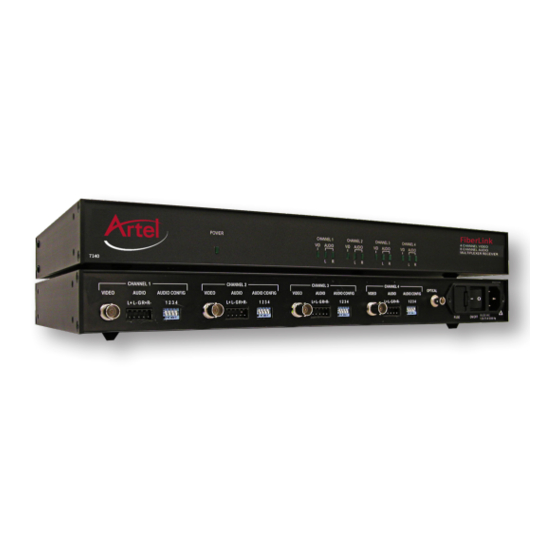

- Page 1 MANUAL FiberLink® 7142 Series 4 Channels of Composite Video and 8 Channels of Audio over one single mode or multimode fiber Installation and Operations Manual WWW.ARTEL.COM...
-
Page 2: Table Of Contents
Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Page 2 FiberLink 7142 Series User’s Manual... -
Page 3: Welcome
FiberLink 7142 Series Welcome Thank you for purchasing Artel Video Systems’ FiberLink 7142 Series . The FiberLink 7142 Series transmits four channels of uncompressed composite video and eight channels of au- dio over a single fiber optic cable . The system provides 7 MHz bandwidth per video channel and is compatible with NTSC, PAL and SECAM video standards . -
Page 4: Technical Specifications
1 .75 H x 16 .75 W x 10 D (inches) 44 H x 425 W x 254 D (mm) Weight 5lbs; 2 .2kg MTBF 34,000 Hours Compatibility Compatible with FiberLink 8200 Series . Not compatible with FiberLink 7140 & 7141 products Page 4 FiberLink 7142 Series User’s Manual... -
Page 5: Video Specifications
0 dBu nom ., +10 dBu max . Signal-to-Noise Ratio 85 dB THD+N 0 .1% typical Audio Connectors Screw terminal block Switches Dip switches to select input termination, balanced or unbalanced input/output . Selectable on a per-channel basis FiberLink 7142 Series User’s Manual Page 5... -
Page 6: Operating Loss Budgets
Operating loss budget must not be exceeded . Installation Instructions The FiberLink 7142 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools or equipment . However, an Optical Power Meter, such as the FiberLink 6615, can be useful in determining optical loss budgets during your systems design and maintenance . -
Page 7: Audio Configuration (Transmitter)
Audio Configuration (Transmitter) FiberLink 7142 Series Audio Configuration: The FiberLink 7142 Series units have four four position DIP switches that are accessible from the front panel . Operation is as follows: Audio Configuration Switch Settings (Transmitter - Input) Channel Balanced... -
Page 8: Audio Wiring
Channel 1 Output (+) Channel 1 Ground (+) Channel 1 Output (-) Channel 1 Signal (-) Ground (Shield) Shield Channel 2 Output (+) Channel 2 Ground (+) Channel 2 Output (-) Channel 2 Signal (-) Page 8 FiberLink 7142 Series User’s Manual... -
Page 9: Indicator Leds
FiberLink 7142 Series Indicator LEDs The FiberLink 7142 Series has several indicator LEDs that are used to monitor the state of the unit . Each unit features one Power LED, 4 Video LEDs and 8 Audio LEDs, each corre- sponding to a specific channel . The LED’s are as follows:... -
Page 10: Operating Pointers
Customer Service Department for further assistance . If you suspect your problem is caused by the optics or the fiber optic cable, and you have an optical power meter, please take the appropriate measurements prior to contacting support . Page 10 FiberLink 7142 Series User’s Manual... -
Page 11: Maintenance And Repairs
FiberLink 7142 Series Maintenance and Repairs The FiberLink 7142 Series has been manufactured using the latest semiconductor devices and techniques that electronic technology has to offer . They have been designed for long, reliable and trouble-free service and are not normally field repairable . - Page 12 • Solutions for most video, audio, and data formats • Multimode and single mode versions • Designed and manufactured in the USA • Training and installation support available • 24x7x365 technical support available Artel Video Systems Corp. 5B Lyberty Way, Westford, MA 01886 USA T: 978-263-5775 F: 978-263-9755 All specifications subject to sales@artel.com...
