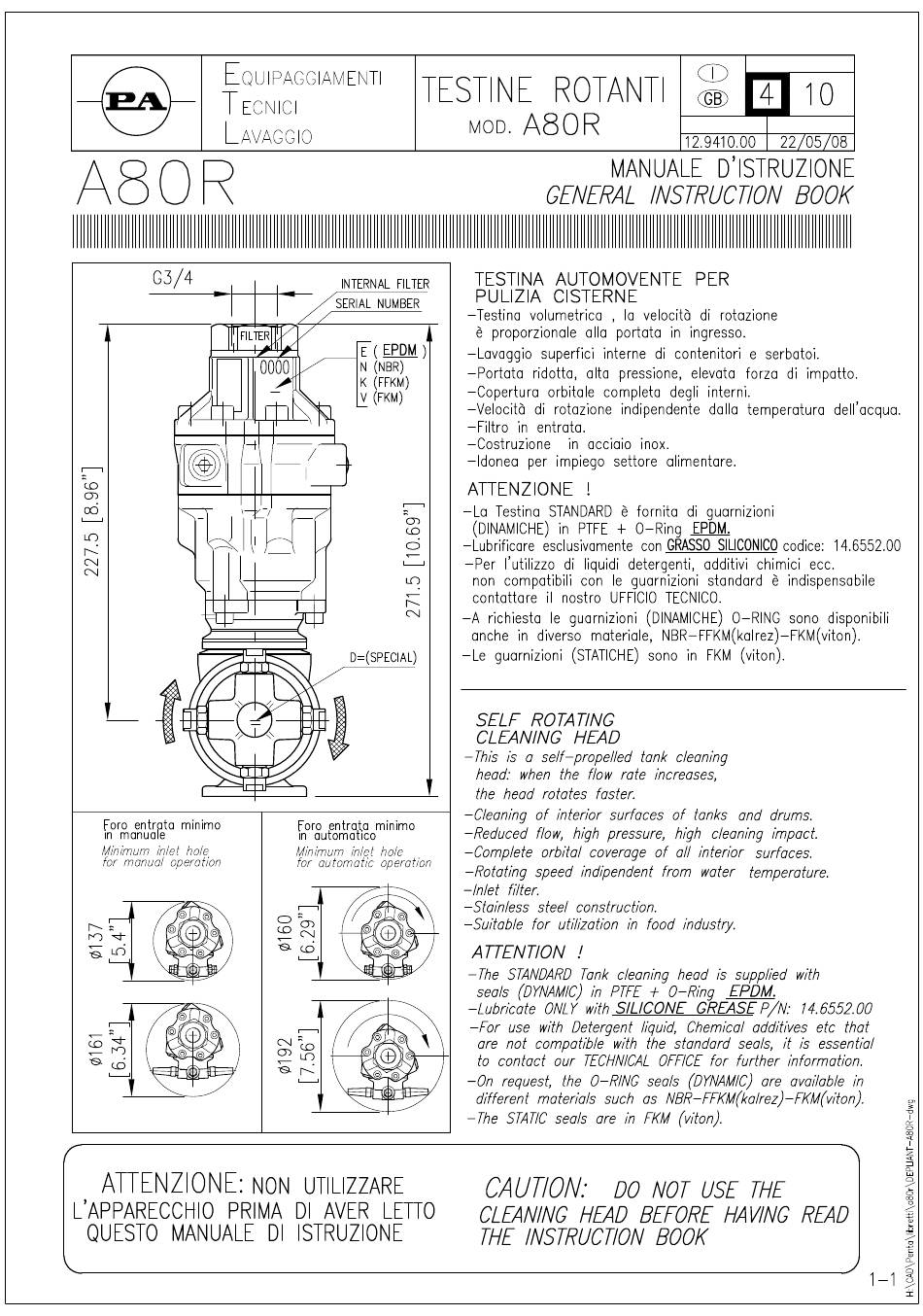

Page 4: Installazione
- Accertarsi che l'impianto di pompaggio sia dotato di una Valvola di sicurezza idonea alle prestazioni richieste. - Per garantire la sicurezza dell'apparecchio usare solamente parti di ricambio originali PA o da essa approvati. - Condotti per alta pressione, giunti e collegamenti sono importanti ai fini della sicurezza dell'apparecchio. Usate solo condotti, giunti e collegamenti correttamente dimensionati e garantiti dal costruttore. - Page 5 Make sure that the pumping system is equipped with suitable safety devices Original PA parts only must be used for repair and servicing High pressure pipes and connections are very important to the general safety of the equipment. Be sure to use only components correctly sized and guaranteed by the manufacturer.
- Page 6 25.4820.20 A80R Test.semov.iniett.2mm 25.4820.80 A80R Test.semov.iniett.7mm corto 25.4820.25 A80R Test.semov.iniett.2,5mm 25.4820.90 A80R Test.semov.iniett.9mm 25.4820.30 A80R Test.semov.iniett.3mm 25.4825.25 A80R testina, iniett.2,5mm, ug.diritti 25.4820.40 A80R Test.semov.iniett.4mm 25.4825.60 A80R testina, iniett.6mm, ug.diritti 25.4820.50 A80R Test.semov.iniett.5mm 25.4825.70 A80R testina, iniett.7mm, ug.diritti 25.4820.60 A80R Test.semov.iniett.6mm 25.4826.60 A80R/6mm Testina ug.diritti-Viton...
- Page 7 *** Varie misure disponibili Codice Descrizione K1 25.4828.24 Kit ric.guarn. A80R 10x1pz. K2 25.4852.24 Kit ric. A80R 7x1pz. K3 25.4810.40 A80 kit iniettori 4,00mm+tappi (1) 25.4825.25 (2) 25.4826.60 (3) 25.4820.20 (4) 25.4820.25 (5) 25.4820.30 (6) 25.4820.40 (7) 25.4820.50 (8) 25.4820.60 (9) 25.4820.70 (10) 25.4820.80...
- Page 8 25.4820.20 A80R Tank clean.,s/prop.,2mm inject. 25.4820.80 A80R Tank clean.,s/prop.,7mm short inj. 25.4820.25 A80R Tank clean.,s/prop.,2,5mm inject. 25.4820.90 A80R Tank clean.,s/prop.,9mm inject. 25.4820.30 A80R Tank clean.,s/prop.,3mm inject. 25.4825.25 A80R Tank cl.,2,5mm inject,strght nozzl. 25.4820.40 A80R Tank clean.,s/prop.,4mm inject. 25.4825.60 A80R Tank cl.,6mm inject,straight nozzl.
- Page 9 ** On request *** Different measures available Description K1 25.4828.24 Seals Spares Kit - A80R 10x1pcs. K2 25.4852.24 Spares Kit - A80R 7x1pcs. K3 25.4810.40 A80 injector kit size 040, w/plug (1) 25.4825.25 (2) 25.4826.60 (3) 25.4820.20 (4) 25.4820.25 (5) 25.4820.30 (6) 25.4820.40 (7) 25.4820.50 (8) 25.4820.60 (9) 25.4820.70 (10) 25.4820.80...
- Page 12 P.A. S.p.A. Via Milano, 13 42048 Rubiera, Reggio Emilia - Italy Tel +39.0522.623611 Fax +39.0522.629600 info@pa-etl.it www.pa-etl.it COMPANY WITH QUALITY MANAGEMENT SYSTEM CERTIFIED BY DNV ISO 9001...
