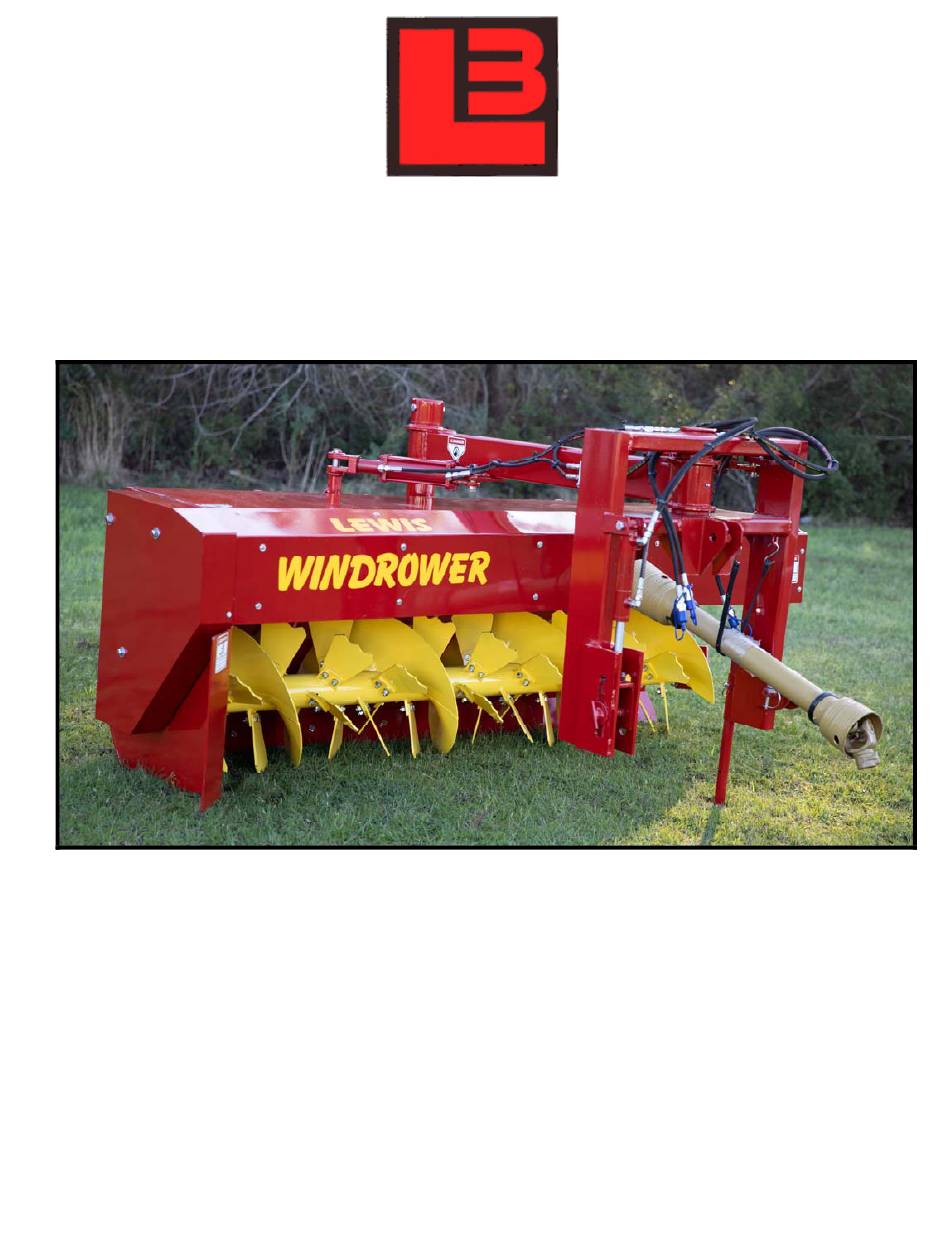

- Page 1 LEWIS WINDROWER OWNER / OPERATOR MANUAL WINDROWER II MODEL # WR-2 Manufactured by: LEWIS BROTHERS MANUFACTURING, INC. Post Office Box 146 Baxley, GA 31513 Tel: (912) 367-4651 Fax: (912) 367-3958 1-20-2020...
-
Page 2: Introduction
INTRODUCTION All Lewis Brothers equipment is manufactured under stringent production and quality assurance procedures prior to preparation for shipment. A final quality check is performed on all equipment before shipping. The best equipment is only as good as its operation and management. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY Owner’s And Operator’s Responsibility General Precautions WARRANTY Limited Warranty SPECIFICATIONS Model WR-2 Specifications SETUP AND OPERATION Machine Setup Operating Instructions Lubrication PARTS DECALS... -
Page 4: Safety
SAFETY... -
Page 5: Owner's And Operator's Responsibility
OWNER'S AND OPERATOR'S RESPONSIBILITY This manual is intended for use with your Lewis Windrower II. Extra effort has been made to provide for safe operation of this equipment. This manual as well as the safety decals placed on the equipment is part of that effort. Your new Windrower should perform the various functions for which it was designed if it is maintained, adjusted to your specific conditions, and operated correctly. -
Page 6: General Precautions
GENERAL PRECAUTIONS • MAKE SURE everyone is clear of the equipment before starting the tractor's engine and while equipment is under operation. • DO NOT permit anyone to ride on this equipment • KEEP hands, feet, hair and clothing away from all moving parts. Do not wear loose clothing while operating equipment, as this may present an entanglement hazard. -
Page 7: Warranty
WARRANTY... -
Page 8: Limited Warranty
LEWIS BROTHERS MANUFACTURING, INC. LIMITED WARRANTY Lewis Brothers Manufacturing, Inc. (hereinafter referred to as “LBM”) warrants each item of new equipment manufactured by LBM to be free from defects in material and workmanship under normal use and service. The obligation of LBM under this LIMITED WARRANTY is limited to repair or replacement, as LBM may elect, of any parts that prove, in LBM’s judgment, to be defective in material and workmanship within the first twelve (12) months after the date of invoice to the original purchaser. -
Page 9: Specifications
SPECIFICATIONS... -
Page 10: Model Wr-2 Specifications
SPECIFICATIONS Lewis Windrower Model # WR-II Width 8 ft-2 in Length 64 in Height 50 in Weight 1800 lbs Blade Width 93 in Aux. Hyd. Outlets 2 sets (required) Tractor hp (creeper gear recommended) 75hp... -
Page 11: Setup And Operation
SETUP OPERATION... -
Page 12: Machine Setup
MACHINE SETUP Attachment to Tractor The Lewis Windrower II can be operated on any tractor equipped with a standard 3 – point hitch and with a minimum of two sets of remote hydraulic hook ups. ATTACHMENT POINTS Figure 1 Attach the Windrower to the tractor's three-point hitch, (See Figure 1) and secure with the proper attachment pins. - Page 13 Figure 2 Connect the Windrower hydraulic lines to the selected remote hydraulic ports located on the tractor (See figure 2). IMPORTANT: The Lewis Windrower II is designed to handle a maximum system pressure of 2500 PSI. Excess pressure should be avoided in order to prevent damaging system components. Tractors that are capable of supplying higher hydraulic pressure should install a pressure regulator kit to prevent damage to the hydraulic system.
-
Page 14: Operating Instructions
The ground speed will always vary depending on the particular operation being performed. The Lewis Windrower II is designed to be operated with the tractor PTO turning within a range of 500 to 540 RPM. 540 RPM is the most desirable PTO speed. -
Page 15: Parts
PARTS... - Page 16 ITEM PART # DESCRIPTION WR-300630 1-1/8 Hitch Pin WR-300040 Right Lift Arm Mount Hydraulic Cylinder WR-300120 Right Lift Arm Mount WR-100028 Gear Box WR-100025 Drive Shaft HW-960330 Gear box mount bolt 12mm-1.75 x 20mm lg, w/shoulder...
- Page 17 ITEM PART # DESCRIPTION WR-300015 Hydraulic Cylinder Spacer HK-101253 Hydraulic Cylinder 3” x 6” WR-300008 Flow Divider Valve ( complete )
- Page 18 ITEM Part # Description WR-300410 Cylinder Weldment WR-300416 Paddle HW-208108G5Z Bolt, Hex Head 1/2NC X 1-1/2LG HW-335208Z Lock Washer, Lock, 1/2” HW-300208ZG5 Nut, Hex, 1/2-13NC HW-212112G5Z Bolt, Hex Head, 5/8-11NC x 2, G5, ZP HW-300212ZG5 Nut, Hex, 5/8-13NC, ZP, G5 HW-335212Z Washer, lock, 5/8, ZP WR-600001...
- Page 19 Item Part # Description WR-300420 Top Auger WR-300419 Four bolt flange bearing 1-5/8 Shaft WR-300422 Two bolt flange bearing 1-5/8 HW-208112G5Z Bolt, Hex Head,1/2-13NC x 2LG, G5, ZP HW-335208Z Washer, Lock, 1/2, ZP HW-300208ZG5 Nut, Hex Head, 1/2-13NC, ZP, G5...
- Page 20 Item # Part # Description HW-960330 Bolt, Hex Head, 12 MM-1.75 x 20MM LG, ZP, w/shoulder WR-100028 Gear Box...
- Page 21 3,4,5,6 12, 13 14, 15 16,17,18 ITEM# PART # DESCRIOTION HK-101295 Idler HK-100704 Spring HW-208122G5Z Bolt, Hex Head, 1/2-13NC x 3-1/4 LG, G5, ZP HW-301208SC Nut, Stover Lock, Hex, 1/2-13 NC HW-325208Z 1/2 USS, Flat Washer, ZP HK-100961 Shim, Spacer WR-600359 Chain Tension Spring Guard WR-300600...
- Page 22 Item Part # Description WR-300130 Shaft and Yoke Weldment WR-100026 U-Joint WR-100024 Torque Limiter...
-
Page 23: Decals
DECALS HK-100916 HK-100899 HK-100912 WR-600061 HK-100908...
