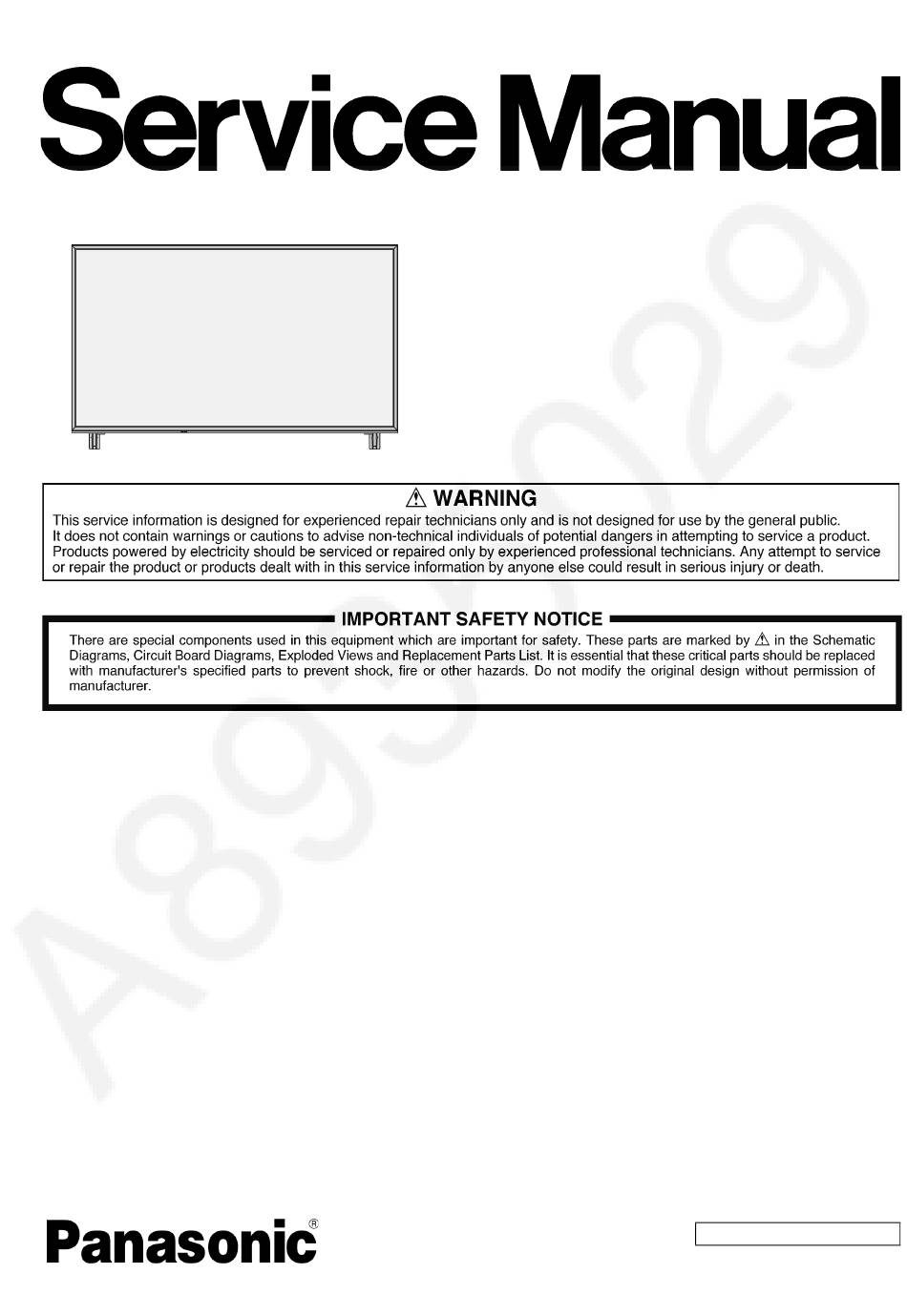

Panasonic TH-55FX600M Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Smart TV
  5. TH-55FX600M
  6. Service manual

Panasonic TH-55FX600M Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check---------------------- 3
2 Warning -------------------------------------------------------------- 4
2.2. About lead free solder (PbF)---------------------------- 4
3 Service Navigation ----------------------------------------------- 5
3.1. Service Hint ------------------------------------------------- 5
4 Specifications ----------------------------------------------------- 6
5 CS Maintenance Menu ------------------------------------------ 8
5.1.1. Purpose ------------------------------------------------- 8
5.1.2. Key command ----------------------------------------- 8
5.1.3. How to exit---------------------------------------------- 8
5.2. Repack ------------------------------------------------------- 8
5.3. EDID Clock-------------------------------------------------- 9
5.4. USB HDD Drive Check----------------------------------- 9
5.5. White Balance Adjustment -----------------------------10
Model No.
Chassis:
Destination:
PAGE
5.6. Hotel mode ------------------------------------------------ 11
5.6.1. Purpose ------------------------------------------------ 11
menu --------------------------------------------------- 11
6 Troubleshooting Guide --------------------------------------- 12
6.1. Check of the IIC bus lines------------------------------ 12
6.1.1. How to access --------------------------------------- 12
6.1.2. Screen display --------------------------------------- 12
6.2. Power LED Blinking timing chart --------------------- 12
6.3. Method of detecting SOS ------------------------------ 13
6.4. LCD Panel test mode ----------------------------------- 13
6.5. No Power--------------------------------------------------- 14
7.1. Bracket Fitting -------------------------------------------- 15
7.2. PCB Fixing------------------------------------------------- 16
7.3. Metal & Speaker Fixing --------------------------------- 17
7.4. Back Cover (Screw) ------------------------------------- 18
7.5. Handling SPEC ------------------------------------------- 19
ORDER NO. MTV1801180CE
TH-55FX600M
KM42
MIDDLE EAST
© Panasonic Corporation 2018.
LED TV
PAGE
