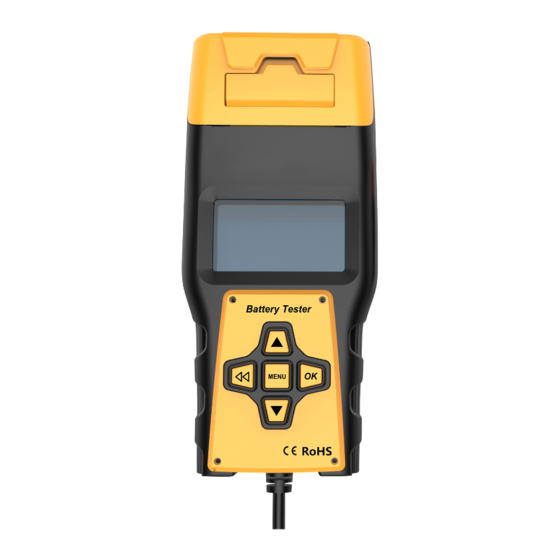

Endeavour Tools ET8626 User Manual

Battery tester
Hide thumbs

Advertisement

Quick Links

Download this manual
ENDEAVOUR TOOLS
1 Product Summary
1.1 Product Profile
ET8626 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure
the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle
starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve
quick vehicle repair.
1. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel
battery, EFB battery, etc.
2. Directly detect bad cell battery.
3. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
4. Directly test the battery with loss of electricity, no need to full charge before testing.
5. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
6. Support multi-languages, customer can select different language package, which includes: Chinese Simple, Chinese Traditional, English,
Japanese, Russian, Spanish, French, Italian, German, etc. Other languages can also be customized according to user's need.
1.2 Product Function
Main functions of ET8626 battery tester include: battery test, cranking test, charging test and other additional functions.
Battery test is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the
aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. It notifies the user to replace battery in
advance when the battery getting aged.
Cranking test is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of
the starting motor, it can find out whether the starting motor works fine. There are several reasons why the starting motor is abnormal:
lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the increasing friction of
the starting motor itself.
Charging test is to check and analyze the charging system, including generator, rectifier, rectifier diode, etc., thus to find out whether the
output voltage of the generator is normal, the rectifier diode works fine and the charging current is normal. Suppose one of the above
mentioned parts is not in normal situation, it will lead to over charge or incomplete charge of the battery, thus the battery will be quickly
damaged and also greatly shorten the using life of other loaded electrical appliance.
Additional functions include: Set language, voltmeter and screen brightness adjustment.
1.3 Technical Parameters
1. Cold Cranking Amps Measure Range:
Measure Standard
2. Voltage Measure Range: 8-30V DC
ET8626
CCA
BCI
CA
MCA
JIS
DIN
IEC
EN
SAE
GB
Measure Range
100-2000
100-2000
100-2000
100-2000
26A17--245H52
100-1400
100-1400
100-2000
100-2000
100-1400
1
ET8626_User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET8626 and is the answer not in the manual?

Questions and answers

Related Manuals for Endeavour Tools ET8626

Summary of Contents for Endeavour Tools ET8626

  • Page 1 1.1 Product Profile ET8626 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
  • Page 2 ENDEAVOUR TOOLS ET8626_User Manual 1.4 Working Environment Requirement Working Environment Temp.: -20°C-60°C It is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive battery distributors, and educational organizations, etc. 2 PRODUCT INFORMATION 2.1 Tool Description ET8626...
  • Page 3 ENDEAVOUR TOOLS ET8626_User Manual LCD Display-- Indicates test results. Backlit, 128 x 64 pixel display with contrast adjustment. OK key-- Confirms a selection (or action) from a menu. Exit key-- Cancels a selection (or action) from a menu or returns to the menu.

  • Page 4: Battery Test

    ENDEAVOUR TOOLS ET8626_User Manual System Setup Language Contrast Tool Information Language: From Tool Setup menu, use Enter button to select Language Language English French German Spanish 2) Use UP and DOWN button to select the desired language and press ENTER button to save your selection and return to previous menu.
  • Page 5 ENDEAVOUR TOOLS ET8626_User Manual It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery.
  • Page 6 ENDEAVOUR TOOLS ET8626_User Manual 4) Bad Cell, Replace Healthy:0% 0CCA Charge:20% 10.64V Internal R=45.2m Ω Rated: 500A BAD CELL，REPLACE Battery interior damaged, bad cell or short circuit, replace battery. 5) Charge, Retest Healthy:39% 310CCA Charge:20% 12.08V Internal R=30.1m Ω Rated: 500A CHARGE-RETEST Unstable battery shall be recharged and retested to avoid error.
  • Page 7 Battery System Standard and Rating ET8626 battery tester will test each battery according to the selected system and rating. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery.
  • Page 8 ENDEAVOUR TOOLS ET8626_User Manual Rating range as following: Measure Standard Measure Range 100-2000 100-2000 100-2000 100-2000 26A17--245H52 100-1400 100-1400 100-2000 100-2000 100-1400 Input correct test standard and rating, press ENTER key, tester starts to test, and dynamic interface "TESTING" prompted. See below: Setting Rate It takes around 3 seconds to display the battery test result.
  • Page 9 ENDEAVOUR TOOLS ET8626_User Manual 3) Replace Healthy:46% 490CCA Charge:80% 12.68V Internal R=18.1m Ω Rated: 500A REPLACE The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed. 4) Bad Cell, Replace...
  • Page 10 ENDEAVOUR TOOLS ET8626_User Manual Cranking Test Times 780ms Cranking Normal 10.13V When cranking test is abnormal, battery test result will also be displayed at the same time. Cranking Test Times 1020ms Cranking Replace 10.13V This is for the convenience of the maintenance personnel to quickly know the whole state of the starting system according to the data.
  • Page 11 ENDEAVOUR TOOLS ET8626_User Manual Charging Test Testing **** After the test finished, tester displays the effective charging volts, ripple test result and charging test result. Cranking Test Loaded 14.16V Unloaded 14.39V Replace 15mV Charging Normal NOTE: If no increase rev detected, it shall be the fault of generator regulator or connection with battery failed. Tester will try 3 times to further detect, if still failed, it will skip the increase rev detect and the test result displays "No Volt Output".
  • Page 12 Battery System Standard and Rating ET8626 battery tester will test each battery according to the selected system and rating. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery.
  • Page 13 ENDEAVOUR TOOLS ET8626_User Manual Rating range as following: Measure Standard Measure Range 100-2000 100-2000 100-2000 100-2000 26A17--245H52 100-1400 100-1400 100-2000 100-2000 100-1400 Input correct test standard and rating, press ENTER key, tester starts to test, and dynamic interface "TESTING" prompted. See below: Setting Rate It takes around 3 seconds to display the battery test result.
  • Page 14 ENDEAVOUR TOOLS ET8626_User Manual 2) Good, Recharge Healthy:78% 440CCA Charge:30% 12.20V Internal R=7.2m Ω Rated: 500A GOOD, RECHARGE Good battery but low current, recharge before using. 3) Replace Healthy:46% 490CCA Charge:80% 12.68V Internal R=18.1m Ω Rated: 500A REPLACE The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.
  • Page 15 ENDEAVOUR TOOLS ET8626_User Manual Healthy:96% 490CCA Charge:98% 12.64V Internal R=6.1m Ω Rated: 500A GOOD BATTERY 3.5 Print Data 1. Choose the function of Print Data and press OK. Main Menu 1.Quick Test 2.Battery in Vehicle 3.Out of Vehicle 4.Review Data 5.

  • Page 16: Service Procedures

    ENDEAVOUR TOOLS ET8626_User Manual 3.6 System setup Please kindly review 2.4 Product setup 4.WARRANTY AND SERVICE 4.1 Limited One Year Warranty We warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the...
