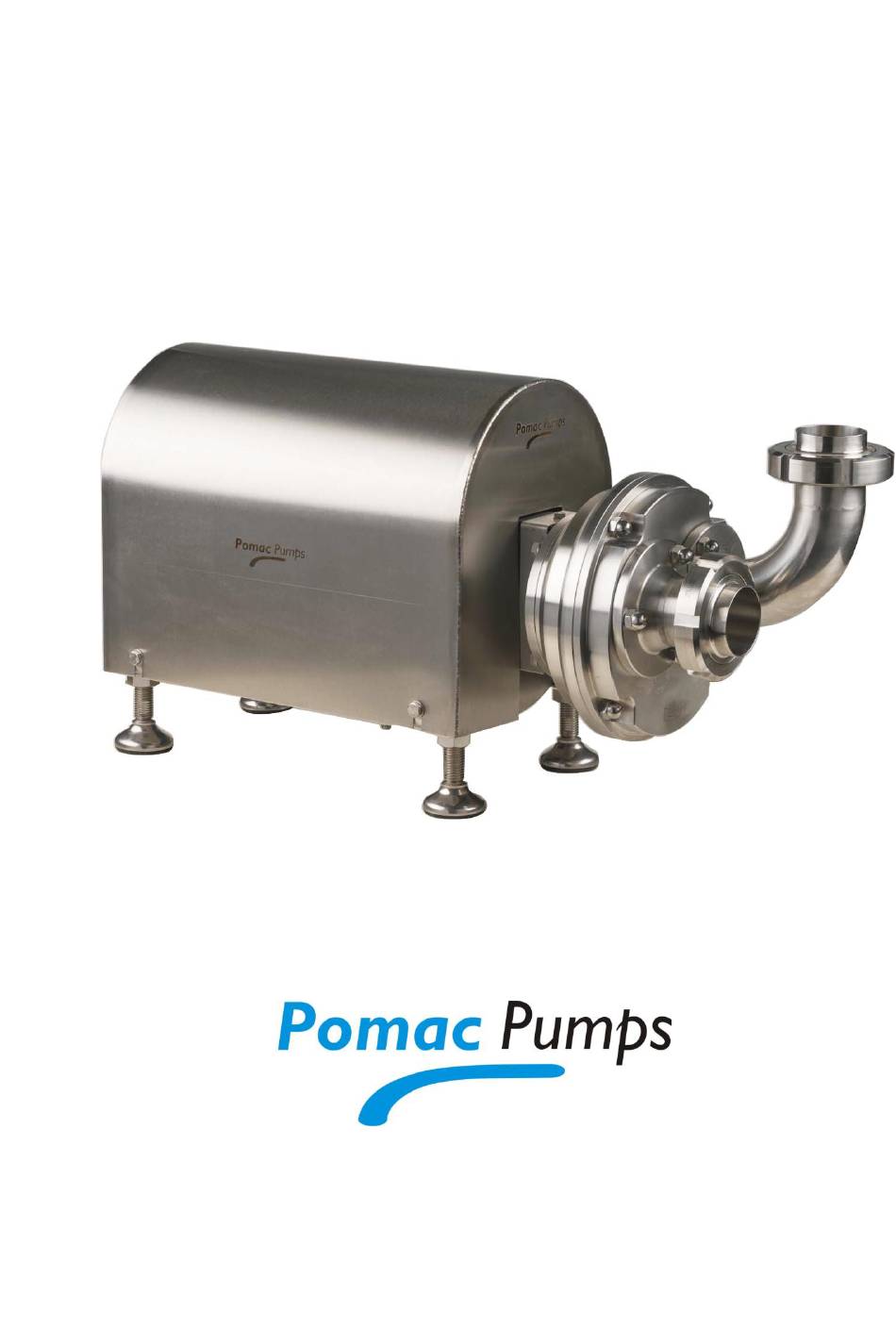

- Page 1 User manual SP-LR pumps Pomac bv - Feithspark 13 - 9356 BX Tolbert - the Netherlands Tel +31(0) 594 512877 - Fax +31(0) 594 517002 info@ pomacpumps.com - www.pomacpumps.com...
- Page 2 User manual Pomac SP-LR pumps CE/ SP-LR (1306) EN-01...
- Page 3 User manual Pomac SP-LR pumps Serienummer pomp capaciteit druk NPSHR Fabrikaat aandrijving type toerental / spanning frequentie stroom vermogen isolatieklasse beschermingsklasse area classification CE/ SP-LR (1306) EN-01...
- Page 4 User manual Pomac SP-LR pumps CE/ SP-LR (1306) EN-01...
- Page 5 The information may not be copied, duplicated or passed on to third parties without our written permission. Copyright 2013 Pomac bv Release date: June 2013 Doc. ID. : CE/SP-LR (1306) EN-01 CE/ SP-LR (1306) EN-01...
- Page 6 User manual Pomac SP-LR pumps DECLARATION OF INCORPORATION (according to Annex II 1 B of the Machinery Directive (2006/42/EC – 1st Edition – December 2009) Pomac bv Feithspark 13 9356 BX Tolbert The Netherlands hereby declares completely under own responsibility that the pumps mentioned below:...
-
Page 7: Table Of Contents
User manual Pomac SP-LR pumps Table of contents Introduction ............................9 1.1. General information ........................9 1.2. Warranty ............................ 9 1.3. Transport and receipt ........................ 9 1.4. Pump identification ........................10 1.5. Type code ..........................11 1.6. Ordering spare parts ....................... 12 1.7. - Page 8 8.4. KAM construction with Thermosifon Quench ................32 ................................32 ................................32 8.5. SP-LR Quench seal construction .................... 33 Performance curves SP-LR 186 & 232 ..................34 9.1. SP-LR186 1-channel ....................... 34 9.2. SP-LR186 2-channel ....................... 35 9.3. SP-LR232 2-channel ....................... 35 Trouble shooting .........................
-
Page 9: Introduction
User manual Pomac SP-LR pumps Introduction 1.1. General information This manual provides important information regarding the correct way of installing, operating and servicing this pump. This manual also provides information necessary to prevent the installer/operator from injury or discomfort during installation and operation of this pump and to ensure the correct use and reliable performance of this pump. -
Page 10: Pump Identification
User manual Pomac SP-LR pumps 1.4. Pump identification ⚫ On the type plate of the pump the serial number and the type code are indicated. The type code describes the arrangement of the pump. ⚫ Always refer to the serial number and the type code in any correspondence and when ordering parts. -
Page 11: Type Code
User manual Pomac SP-LR pumps 1.5. Type code The type code consists of the following items: Example: SP-LR 23255 – KAM – 4 – S1 – AF - S 1. Type SP-LR 2. Pump size 186 / 232 3. Connection sizes 44 / 55 4. -
Page 12: Ordering Spare Parts
User manual Pomac SP-LR pumps 1.6. Ordering spare parts An order form for ordering spare part is included in the documents accompanying this pump. You should state the following details on this form: ⚫ your address data ⚫ the serial number and the type number (these are stated on the type plate of the pump and on the first page of this manual). -
Page 13: Safety
User manual Pomac SP-LR pumps Safety 2.1. General information This manual provides information necessary to prevent the installer/operator from injury or discomfort during installation and operation of this pump and to ensure the correct use and reliable performance of this pump. -
Page 14: Precautions
User manual Pomac SP-LR pumps 2.4. Precautions When performing maintenance work to the pump ensure that the drive of the pump is shut down and cannot be switched on unintentionally! All work on and with the pump must always be in accordance with all the prevailing... -
Page 15: Description
User manual Pomac SP-LR pumps Description 3.1. SP-RL self-priming water ring pump 3.1.1. Pump description This self-priming pump works according to the water ring principle and is therefore able to pump liquid/air mixtures. 3.1.2. Application area The application area goes from a capacity of 60 m /h to a manometric head of 5 bars. -
Page 16: Shaft Seals
⚫ ⚫ EPDM ⚫ PTFE Pomac pumps are supplied as standard with an interior unbalanced mechanical seal (carbon on silicon carbide with EPDM O-rings). 3.5.2. Type indication code Code Description interior single mechanical seal - unbalanced exterior single mechanical seal - unbalanced... -
Page 17: Installation
User manual Pomac SP-LR pumps Installation 4.1. General ⚫ The foundation must be smooth and level. ⚫ For the KAM design set the adjustable legs using the leg adjustment feet (38), in such a way that the pump is stable on all 4 legs! Secure the leg adjustment feet with the lock nuts (39). -
Page 18: Putting Into Operation
User manual Pomac SP-LR pumps Putting into operation 5.1. Precautions 5.1.1. General ⚫ Check that the shaft can turn freely. To do this, rotate the pump shaft a few times manually. ⚫ Check that the fuses have been fitted. ⚫... -
Page 19: In Operation
User manual Pomac SP-LR pumps 5.4. In operation 5.4.1. Noise The noise data stated in this manual refer to normal usage, with an electric motor. Under these conditions the noise level, measured at a distance of 1 meter and at a height of 1,6 meter, is below 85 dB(A). -
Page 20: Malfunction
User manual Pomac SP-LR pumps 5.5. Malfunction If there is a malfunction in the pump, try to find the cause using the troubleshooting list at the back of this manual or consult your installer! Always switch off the current first if you intend to investigate the malfunction yourself. -
Page 21: Overhaul And Repair
User manual Pomac SP-LR pumps Overhaul and repair 6.1. Removing the pump First ensure the electric current has been switched off. Remove the fuses or switch the operating switch to OFF and lock it with a pad lock! If the pumped liquid is HOT, first allow the pump to cool down! 1. -
Page 22: Adjusting The Extension Shaft
User manual Pomac SP-LR pumps 6.2.4. Adjusting the extension shaft For versions KAM and KAV before the final assembly first the extension shaft must be adjusted on the motor shaft to set the proper gap between the impeller and the pump casing later. -
Page 23: Replacing The Bearings Of An Igh Type Pump
User manual Pomac SP-LR pumps 6.3. Replacing the bearings of an IGH type pump First dismantle the pump unit to the extent that the following parts can be reached and can be dismantled. 6.3.1. Removing the bearings 1. Remove the pump cover. -
Page 24: Dimensions
User manual Pomac SP-LR pumps Dimensions 7.1. SP-RL KAM type P[kW] SP-RL 186 2" 2" SP-RL 186 2" 2" SP-RL 186 2" 2" SP-RL 232 2.5" 2.5" SP-RL 232 2.5" 2.5" 7.2. SP-RL KAV type P[kW] SP-RL 186 2" 2"... -
Page 25: Sp-Rl Igh
User manual Pomac SP-LR pumps 7.3. SP-RL IGH type SP-RL 186 2" 2" SP-RL 232 2.5" 2.5" CE/ SP-LR (1306) EN-01... -
Page 26: Sectional Drawings And Parts Lists
User manual Pomac SP-LR pumps Sectional drawings and parts lists 8.1. KAM construction CE/ SP-LR (1306) EN-01... - Page 27 User manual Pomac SP-LR pumps Item Nr. Description washer hex nut stud discharge connection suction connection O-ring washer hex head bolt shaft nut O-ring pump cover O-ring O-ring pump casing 2K impeller O-ring seal seat internal mechanical seal washer hex head bolt...
-
Page 28: Kav Construction
User manual Pomac SP-LR pumps 8.2. KAV construction CE/ SP-LR (1306) EN-01... - Page 29 User manual Pomac SP-LR pumps Item Nr. Description washer hex nut stud discharge connection suction connection O-ring washer hex head bolt shaft nut O-ring pump cover O-ring O-ring pump casing 1K impeller O-ring seal seat external mechanical seal washer hex head bolt...
-
Page 30: Igh Construction
User manual Pomac SP-LR pumps 8.3. IGH construction CE/ SP-LR (1306) EN-01... - Page 31 User manual Pomac SP-LR pumps Item Nr. Description washer hex nut stud discharge connection suction connection O-ring washer hex head bolt shaft nut O-ring pump cover O-ring O-ring pump casing 2K impeller O-ring seal seat internal mechanical seal washer hex head bolt...
-
Page 32: Kam Construction With Thermosifon Quench
User manual Pomac SP-LR pumps 8.4. KAM construction with Thermosiphon Quench CE/ SP-LR (1306) EN-01... -
Page 33: Sp-Lr Quench Seal Construction
User manual Pomac SP-LR pumps 8.5. SP-LR Quench seal construction CE/ SP-LR (1306) EN-01... -
Page 34: Performance Curves Sp-Lr 186 & 232
User manual Pomac SP-LR pumps Performance curves SP-LR 186 & 232 9.1. SP-LR186 1-channel speed 1500 rpm s.w. 1000 kg/m3 viscosity 1 cP CE/ SP-LR (1306) EN-01... -
Page 35: Sp-Lr186 2-Channel
User manual Pomac SP-LR pumps 9.2. SP-LR186 2-channel speed 1500 rpm s.w. 1000 kg/m3 viscosity 1 cP 9.3. CE/ SP-LR (1306) EN-01... -
Page 36: Sp-Lr232 2-Channel
User manual Pomac SP-LR pumps SP-LR232 2-channel speed 1500 rpm s.w. 1000 kg/m3 viscosity 1 cP CE/ SP-LR (1306) EN-01... -
Page 37: Trouble Shooting
User manual Pomac SP-LR pumps 10. Trouble shooting A malfunction in a pump system may have various causes. The malfunction is not always necessarily in the pump itself, but can also be caused by a malfunction in the piping system, or in another appendage in the system. - Page 38 User manual Pomac SP-LR pumps Malfunction Cause Action electrical connection Have qualified electrician defective check the electric connections wrong rotation direction Have qualified electrician reverse the sense of rotation of the electric motor insufficient pre-pressure Increase the pre-pressure or place the pump on a...
- Page 39 User manual Pomac SP-LR pumps Index 2RS1, 18 order form, 12 aandrijving, 3 Ordering spare parts, 12 address data, 12 original POMAC parts, 9 asafdichting, 18, 21 O-ring, 16 ATEX, 11, 16 O-rings, 16 bearings oscillation, 22 assembling, 23 overhaul, 13, 14...
