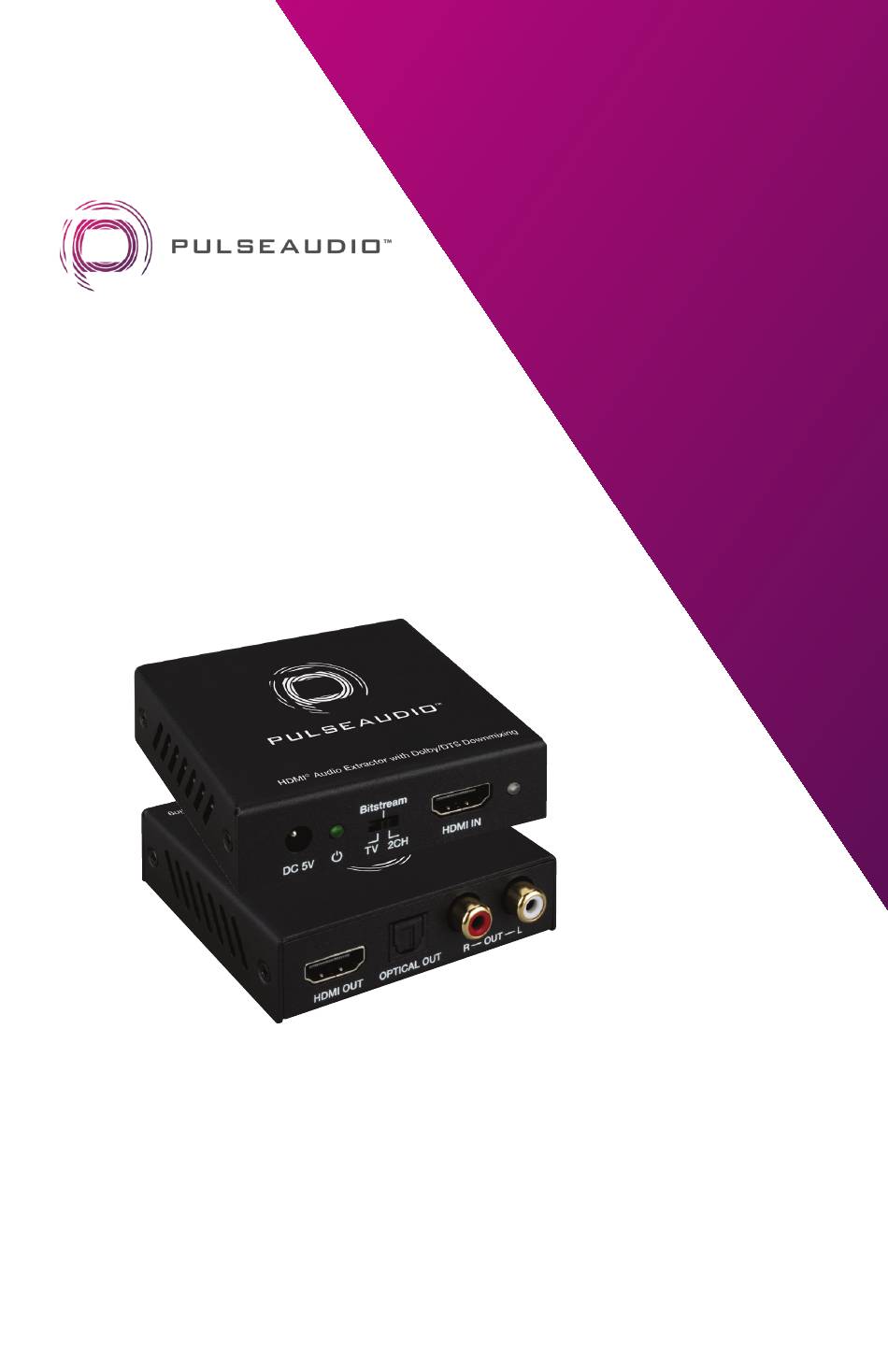

- Page 1 HDMI® Audio EXTRACTOR with Dolby/DTS Downmixing PART NUMBER PA4KAE-DD Extracts audio signals from an HDMI source signal pulseaudio1.com | vanco1.com | 800.626.6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS. -
Page 3: Package Contents
FEATURES The Pulse Audio PA4KAE-DD is an audio extractor which can de-embed or break out audio from an HDMI 4K HDR signal source without affecting the HDMI 2.0 output. With both digital and analog audio outputs, the PA4KAE- DD is a perfect solution for breaking out audio to an external amplifier or distributed audio system at the source end, or to connect a sound bar at the display end. -
Page 4: Specifications
SPECIFICATIONS HDMI Compliance ..........HDMI 2.0b HDCP Compliance ..........HDCP 2.2 and HDCP 1.4 Video Resolutions ..........Up to 4K@60Hz (YUV4:4:4), 4K@30Hz, 1080P@120Hz, and 1080P 3D@60HzSound Channel Color Space ............RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth ............10-bit, 12-bit HDMI Audio Formats (Pass-through) ..LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Optical Audio Formats ........LPCM 2CH, Dolby Digital 2/5.1 ch,... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS FRONT PANEL DC 5V: Connect the included 5v 1A power supply to AC wall outlet for power Power LED: Power indicator TV/Bitstream/2CH: Manual switch to select between: Bitstream (multi-channel audio, Dolby, and DTS audio formats) 2CH (stereo PCM audio formats) TV –... -
Page 6: Connect And Operate
Player ® SAFETY AND NOTICE The PA4KAE-DD has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the PA4KAE-DD should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 7: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@ vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 8 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at pulseaudio1.com...
