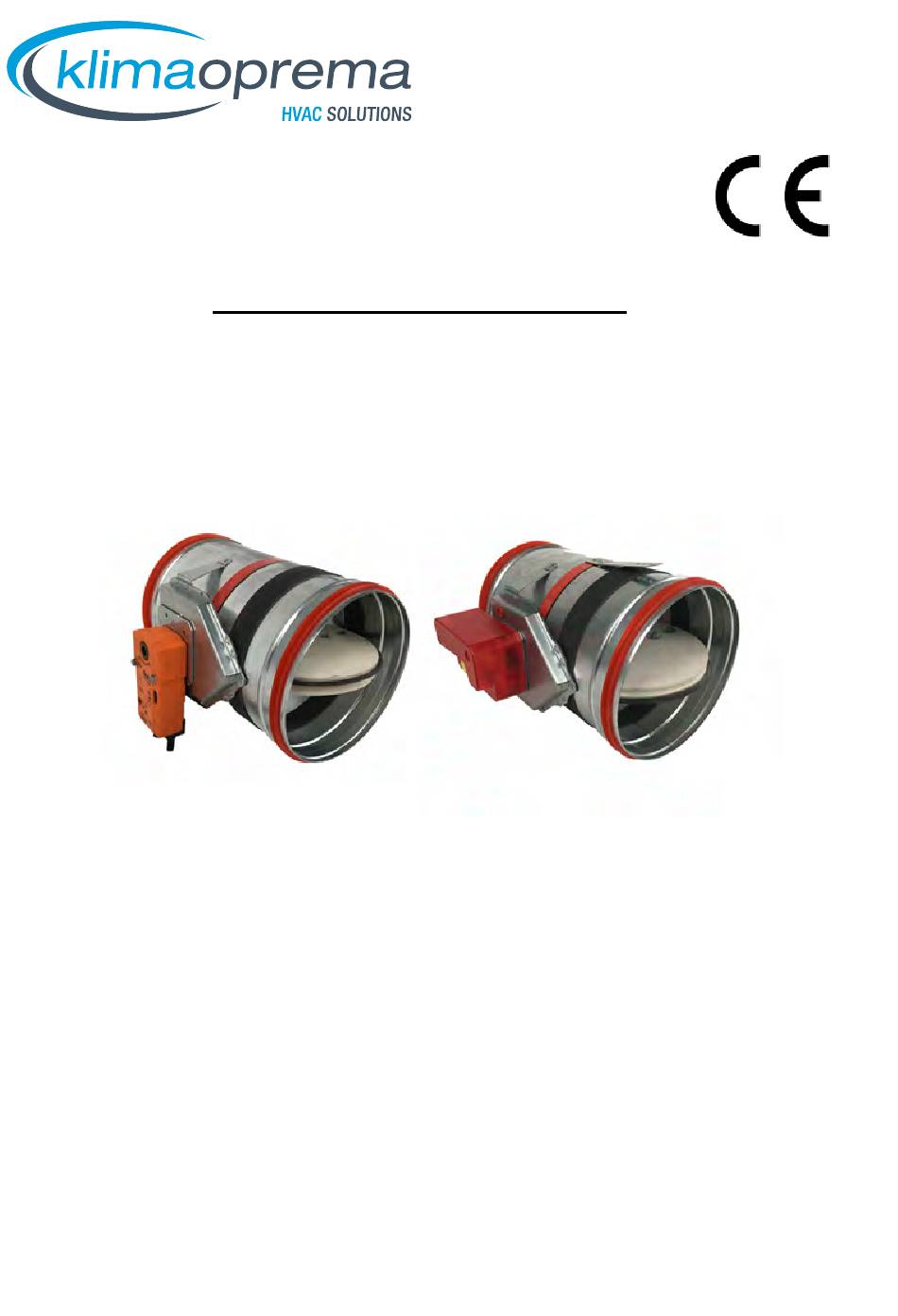

TECHNICAL MANUAL
FDC25/FDC40
Circular Fire damper
SUMMARY
1. PRODUCT PRESENTATION.......................................................................................................................................................2
2. DIMENSIONAL RANGE..............................................................................................................................................................2
3. DIMENSIONS...............................................................................................................................................................................3
4. STORAGE AND HANDLING......................................................................................................................................................4
5. INSTALLATION AND IMPLEMENTATION ...........................................................................................................................4
6. CONTROL MECHANISMS........................................................................................................................................................ 1 3
7. ELECTRICAL CONNECTIONS ................................................................................................................................................ 1 5
8. OTHER MECHANISMS.............................................................................................................................................................. 1 7
9. EVOLUTION OR SERVICE KITS ........................................................................................................................................... 1 9
10. MAINTENANCE........................................................................................................................................................................ 1 9
11. DOP.............................................................................................................................................................................................20
Advertisement
Table of Contents
Summary of Contents for Hvac Klimaoprema FDC25
-
Page 1: Table Of Contents
Klimaoprema d.d. Gradna 78A, 10430 Samobor, Croatia + 385 1 3362513 + 385 1 3362905 info@klimaoprema.hr www.klimaoprema.hr TECHNICAL MANUAL FDC25/FDC40 Circular Fire damper SUMMARY 1. PRODUCT PRESENTATION....……………………………………………………………..............2 2. DIMENSIONAL RANGE..….……………………………………………………....................2 3. DIMENSIONS………..………………………………………………………………………...................3 4. STORAGE AND HANDLING…………………………………………………………..................4 5. INSTALLATION AND IMPLEMENTATION …………………………………..................4 6. -
Page 2: Product Presentation
1. PRODUCT PRESENTATION 3. DIMENSIONS Fire dampers FD25/FD40 are installed in ventilation ducts between fire compartments in order to stop the spread of FDC25 fire and smoke trough the duct. They have a modular (manual or magnet) or motorized mechanism, entirely outside n/2+12 n/2+22 the wall. -
Page 3: Storage And Handling
4. STORAGE AND HANDLING 5.2 INSTALLATION AND SEALING: As a safety element, the fire damper must be stored, handled and installed carefully. Pay attention to: 5.2.1 Concrete wall and reinforced concrete wall installation • unload in a dry area • avoid any shocks The wall is composed of concrete blocks (minimum density of 550 kg/m3) and with a minimum thickness of 100 mm. - Page 4 5.2.3 Gypsum blocks wall 70mm 5.2.4 Gypsum blocks wall 100mm The wall is composed of gypsum blocks (minimum density of 995kg/m3), and with minimum thickness of 70mm. The wall is composed of gypsum blocks (minimum density of 995kg/m3), and with minimum thickness of 100mm. Width of the Width of the Mounting kit...
- Page 5 5.2.5 Flexible wall mounting 5.2.6 Flexible wall mounting The wall is composed of 2x2 GFK plates, 12.5 mm thick, installed on a 48 mm wide steel construction. The interior of the The wall is composed of 2x2 GKF plates (example PROMATECT 100, 12,5 mm thick), installed on a steel construction of wall is filled with mineral wool of 100 kg / m3 density.
- Page 6 5.2.7 Installation remote from flexible/rigid wall 5.2.8 Installation in ceiling (Weichschott) The wall is composed of 2x2 GFK plates, 12.5 mm thick, installed on a 48 mm wide steel construction. The interior of the Installation material: Fire damper FDC, Mineral wool >140kg/m3, Fire protection coating, (HILTI weichschott system) wall is filled with mineral wool of 100 kg / m3 density.
-
Page 7: Control Mechanisms
6. CONTROL MECANISMS 5.2.9 Installation in flexible wall (Weichschott) MANUAL FUSE ONLY MECHANISM (Non-evolutive) Installation material: Fire damper FDC, Mineral wool >140kg/m3, Fire protection coating, (HILTI weichschott system) Self-operating mechanism equipped with a thermal fuse. The Manual fuse only control mechanism closes the damper blade automatically if the temperature in the duct exceeds 72 °C. -
Page 8: Electrical Connections
7. ELECTRICAL CONNECTIONS FD25 MANUAL FUSE ONLY MECHANISM To open the damper, insert the screwdriver into the To close the damper, press the thermal fuse head with shaft (parallel to the ventilation duct axis) and turn a screwdriver • Electrical wiring of the S option counterclockwise Electronic control board FC = Limit switch - end... -
Page 9: Other Mechanisms
8. OTHER MECHANISMS Belimo Operation Damper is delivered in closed position. When electric actuator is connected to the power supply damper will open. When the damper reaches the end position (damper open), in which is it blocked, the electromotor will stop. Closing fire damper takes place automati¬cally when a power failure occurs. -
Page 10: Evolution Or Service Kits
9. EVOLUTION OR SERVICE KITS negative (direct-current) or neutral (alternating current) Designation Code positive (direct-current) or faze (alternating current) common micro switch closed damper normally closed micro switch closed damper Fuse kit FD-JHERM-72 normally open micro switch closed damper common micro switch open damper normally closed micro switch open damper normally open micro switch open damper Double contact S kit... -
Page 11: Dop
11. DOP... - Page 12 NOTES:...
- Page 13 Klimaoprema d.d. Gradna 78A, 10430 Samobor, Croatia Tel. +385 (0)1 33 62 513 | Fax. +385 (0)1 33 62 905 info@klimaoprema.hr www.klimaoprema.hr...
