TABLE OF CONTENTS Important Safety Instructions Introduction Connectors and Indicators How to connect the KINEHUB LED description WARNING: DO NOT USE ANY ATTACHMENTS THAT ARE NOT RECOMMENDED BY THE MANUFACTURER, AS THEY MAY CAUSE DAMAGE OR MALFUNCTIONS.
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

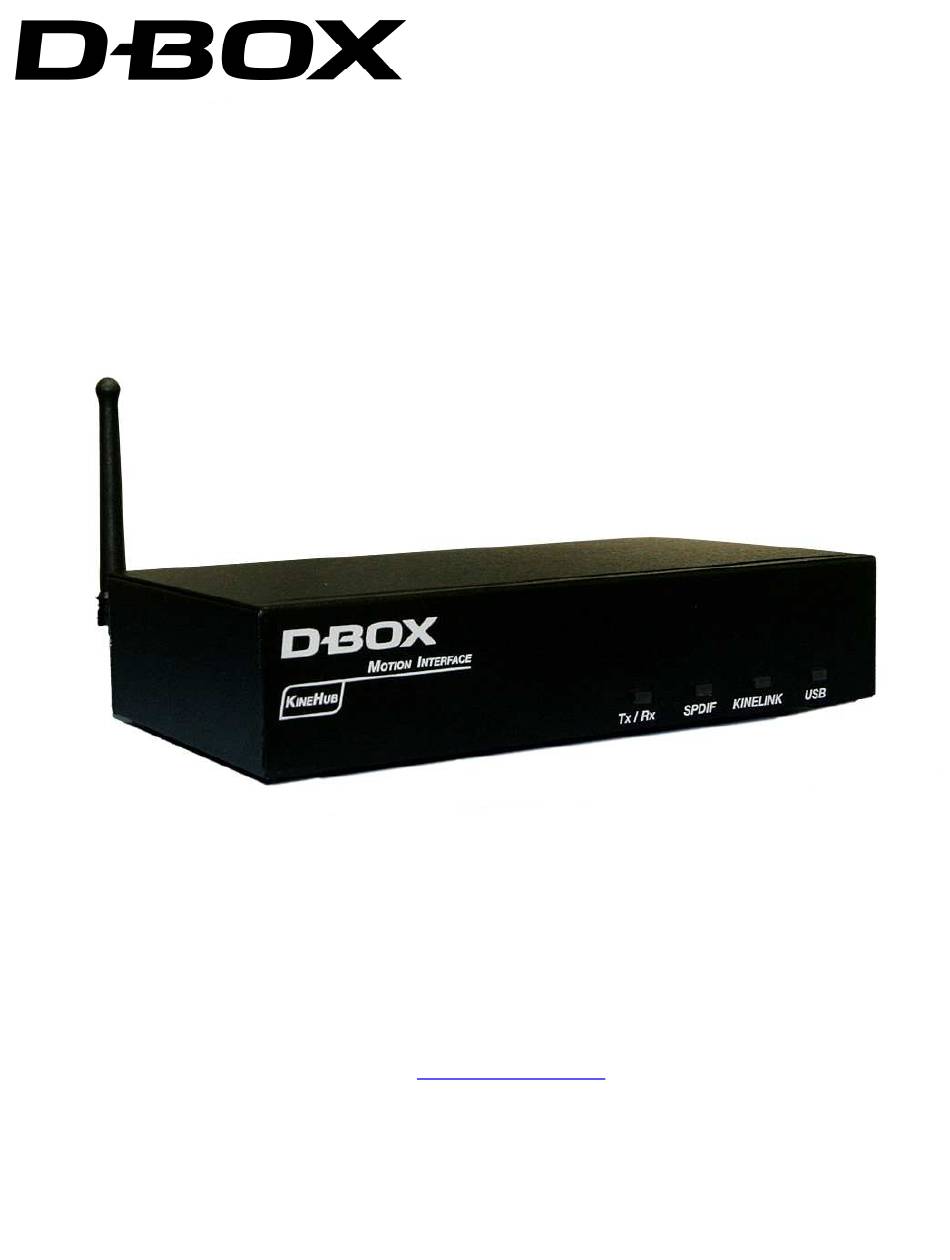

INTRODUCTION KineHub is a versatile multi-function module that connects a motion decoder to up to 12 motion platforms. CONNECTORS AND INDICATORS Legend: * For future use. Legend: * For future use.
ORANGE: Indicates that a wireless Kinelink stream is detected in standby state. RED: Indicates an error in the wireless Kinelink stream. Q: The KINEHUB is connected but the system is not responding properly? A: Connect the RJ-45 cable from the Actuator Control Module directly into the Motion Controller. You will be able to verify all the parameters in the system through the Motion Controller.
Page 7
KINEHUB GUIDE DE L’UTILISATEUR Support Technique : 1-888-442-3269 ext. 264 Télécopieur : 450-442-3230 Courriel : techsupport@d-box.com Visitez notre site web au : www.d-box.com 914-0061-A...
Page 8
TABLE DES MATIÈRES Importantes instructions de sécurité Introduction Connecteurs and Indicateurs Comment connecter le KINEHUB Description DEL AVERTISSEMENT: NE PAS UTILISER DES ACCESSOIRES NON-RECOMMANDÉS PAR LE MANUFACTURIER, CAR ILS PEUVENT CAUSER DES DOMMAGES ET DES PROBLÈMES DE FONCTIONNEMENT.
IMPORTANTES INSTRUCTIONS DE SÉCURITÉ 1. Lire les instructions. 2. Conserver les instructions. 3. Portez attention aux avertissements. 4. Suivre toutes les instructions. 5. Ne pas utiliser cet appareil près de l’eau. 6. Nettoyez avec un linge sec seulement. 7. Ne pas bloquer les ouvertures de ventilation. Installez conformément avec les instructions du manufacturier. 8.
INTRODUCTION Le KineHub est un module multifonctions qui relie un décodeur de mouvements à une ou plusieurs plate-formes (1 à 12). CONNECTEURS ET INDICATEURS Legende: * Pour utilisation future. Legende: * Pour utilisation future.
A: Branchez le câble RJ-45 du ACM (Actuator control module) directement dans votre Motion Controller. Vous pourrez vérifier les paramètres du système par le Motion Controller. Si vous êtes incapable d’identifier le problème, contactez le support technique de D-BOX au 1-888-442-3269 ext.264 ou par courriel au techsupport@d-box.com.
