EGS Appleton CPP-2023 Installation And Applications Instruction

Instruction Sheet for Appleton's 20 Amp "CPP" Plug
Class I, Groups B,C,D
Class II, Groups F,G
Class III

Applications:

• Locations where receptacles are used with stationary
or portable electrically
lighting systems, conveyors, heaters, motor-generator
sets, air conditioner compressors and pumps.
• Locations where damp or corrosive conditions are
encountered.
• Class I –classified areas such as petrochemical
plants, petroleum refineries, paint and chemical plants
or any location where ignitable vapors or gases are
present.
• Class II –locations such as process industries where
there are dust hazards from handling such products
as flour, grain and starch or any location where
ignitable amounts of dust are present or amounts
which would otherwise effect performances.
The CPP-2023 plug is designed for use with the following receptacles in Class I, Groups B,C,D; Class II, Groups
F,G; and Class II, Division 1 and 2 hazardous locations:
CPSA-2350
CPSL-2350
CPE1-2350
EFD150-NL
The CPP-2023 plug is designed for use with the following receptacles in Class I, Groups C,D; Class II, Groups
F,G; and Class II, Division 1 and 2 hazardous locations:
CPE2-2350
EFD250-NL
CPR-23
EGS Electrical Group • 7770 North Frontage Road • Skokie, IL 60077
AMPS DIAGRAM
20
operated devices such as
CPSA-2375 CPSC-2350
CPSL-2375 CPST-2350
CPE1-2375 CPE1-23100
EFD175-NL EFD110-NL
CPE2-2375 CPE2-23100
EFD275-NL EFD210-NL
APPLICATIONS INSTRUCTION
CABLE DIA.
WIRE/POLE (INCHES)
2W, 3P .536 - .639

Operational Data:

• Lift receptacle door and insert plug all the way into the
receptacle.
• Turn plug clockwise limit (37˚). This closes internal
contacts and completes circuit.
• Release plug.
• To remove plug, apply inward pressure on plug and
turn to counter-clockwise limit (37˚). Pull plug straight
out.

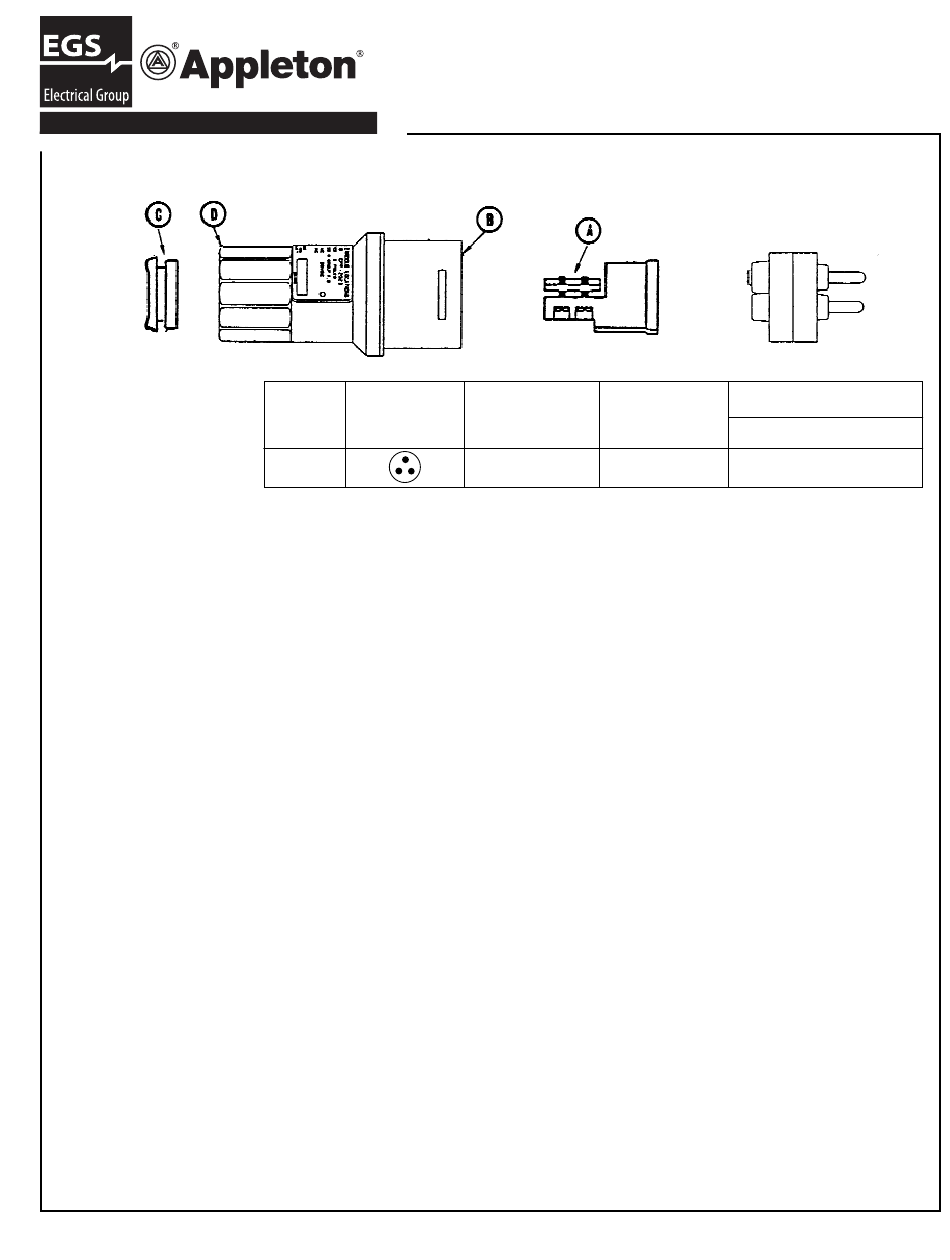

Features:

A. Heavy duty cable grip exceeds UL Standard 1010,
150 lb. pull-out test for classified locations.
B. Twisting plug locks it in place, cannot be accidentally
pulled out.
C. Special neoprene plug bushing accommodates
flexible cord ranging from .536 to .639 inch diameter.
D. Longer plug housing for better gripping and easier
plug insertion and withdrawal.
CPSC-2375 CPSE-2350
CPST-2375 CPSX-2350
CPC1-2350 CPC1-2375
EFDC150-NL EFDC175-NL
CPC2-2350 CPC2-2375
EFDC250-NL EFDC275-NL
330107-1
INSTALLATION AND
CATALOG NUMBER
125-250V A.C.
CPP-2023
CPSE-2375
CPSX-2375
CPC1-23100
EFDC110-NL
CPC2-23100
EFDC210-NL
Rev. A 06/25/02 Page 1
