volkano VK-8023-BK Instruction Manual

Omni Series
UNIVERSAL
LAPTOP CHARGER
INSTRUCTION MANUAL
Please read and retain these instructions for future reference.
• Output Voltage Ranging Between 12 V DC and 20 V DC.
• 8 Tips to Fit Most Popular Laptop Models
• Auto Voltage Selection
• High Power - 90 Watt
• Includes New 12 V Tip for Slimline Intel Celeron and i3 Models and AMD A4 Models
• Overload & Overvoltage Protection

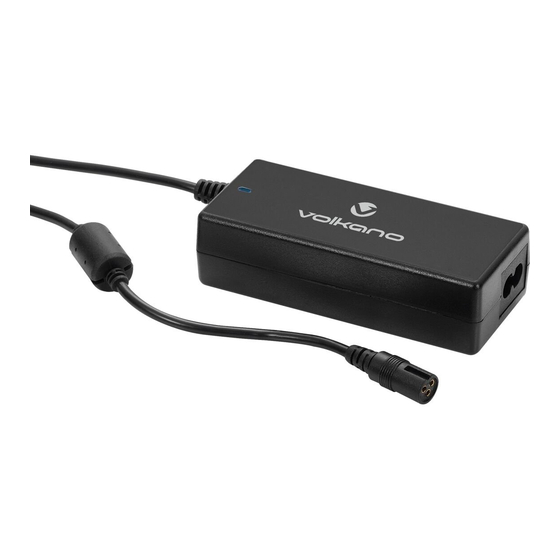

• Volkano Omni Series Universal Laptop Charger
• AC Power Cable
• 8 Assorted Tips
• Instruction Manual
• Total Power Output: 90 Watt
• Connection Type: 8 Assorted Tips
• Output Power: 12 – 20 V DC
• LED Indicator: Yes
• Input Voltage: 100 – 240 V AC
1. Led Indicator
2. AC Power Input
3. DC Connector
VK-8023-BK

HIGHLIGHTS

PACKAGE CONTENTS

SPECIFICATIONS

IDENTIFYING PARTS

1
2
3
1
Please see the below list of supplied interchangeable DC tips, their voltage type and
recommended laptop brand.
Notebook DC Connectors Specification:
TIP TYPE BRAND
M4 18.5 V Compaq, HP
Acer, Compaq, Delta, HP, Fujitsu,
M5 19 V
Gateway, Toshiba, Liteon and ASUS
M9 19.5 V DELL
M12 18.5 V HP and COMPAQ
M15 19 V ACER
M18 12 V CONNEX ILIFE and MECER*
M28 20 V Lenovo
M29 19.5 V HP
* NOT FOR USE WITH INTEL ATOM BASED 5 VOLT DEVICES
2
