Summary of Contents for Bayrol PM5-REL-4

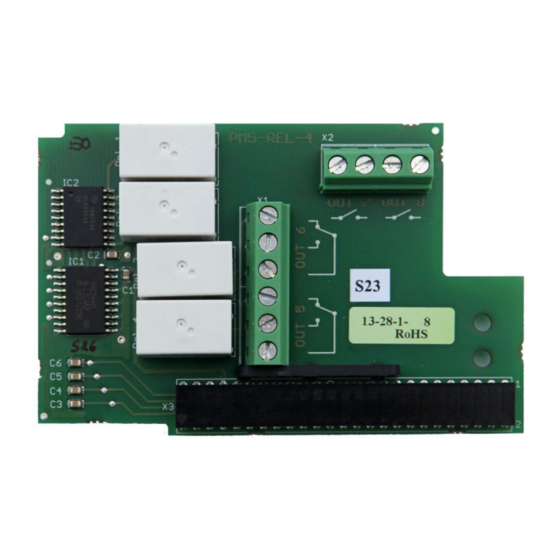

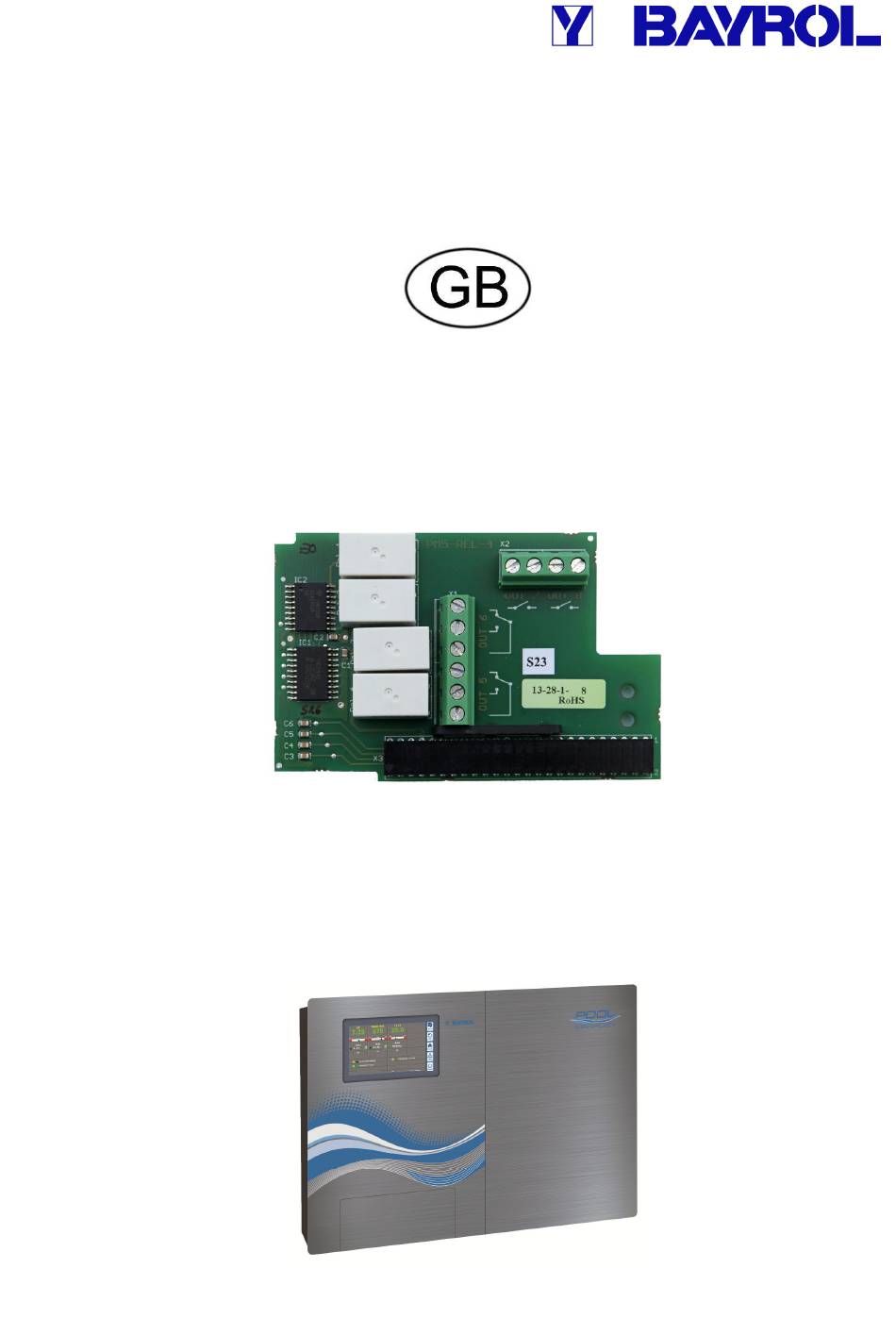

- Page 1 User Manual PM5-REL-4 Relay Module Plug-in module with 4 relay switch outputs (max. 3A at 230V~/30V=) Order No.: 127 016 Status as at 10.04.2013 Compatible with ® PoolManager ® PoolManager Analyt...
- Page 2 Please refer to the different user qualifications as defined in your PoolManager ® or Analyt user manual. Overview The PM5-REL-4 Relay Module is a plug-in module for the BAYROL Measuring, Control und Dosing Systems PoolManager ® and Analyt of the 5th generation (from 2.
- Page 3 Insert the PM5-REL-4 plug-in module 1. Each of the plug-in connectors 1 to 3 can be used for the PM5-REL-4 plug-in module. For an optimal cable 4. Insert the PM5-REL-4 plug-in module carefully into route, we recommend to use plug-in connector 3 (on the plug-in connector 3 (on the right).
- Page 4 5. Now insert the aluminium rail at its original position. assignment of a relay switch output. Take care that the PM5-REL-4 plug-in module is exactly located in the corresponding slot of the The relay switch outputs of the PM5-REL-4 plug-in aluminium rail as shown on the second photo below.
