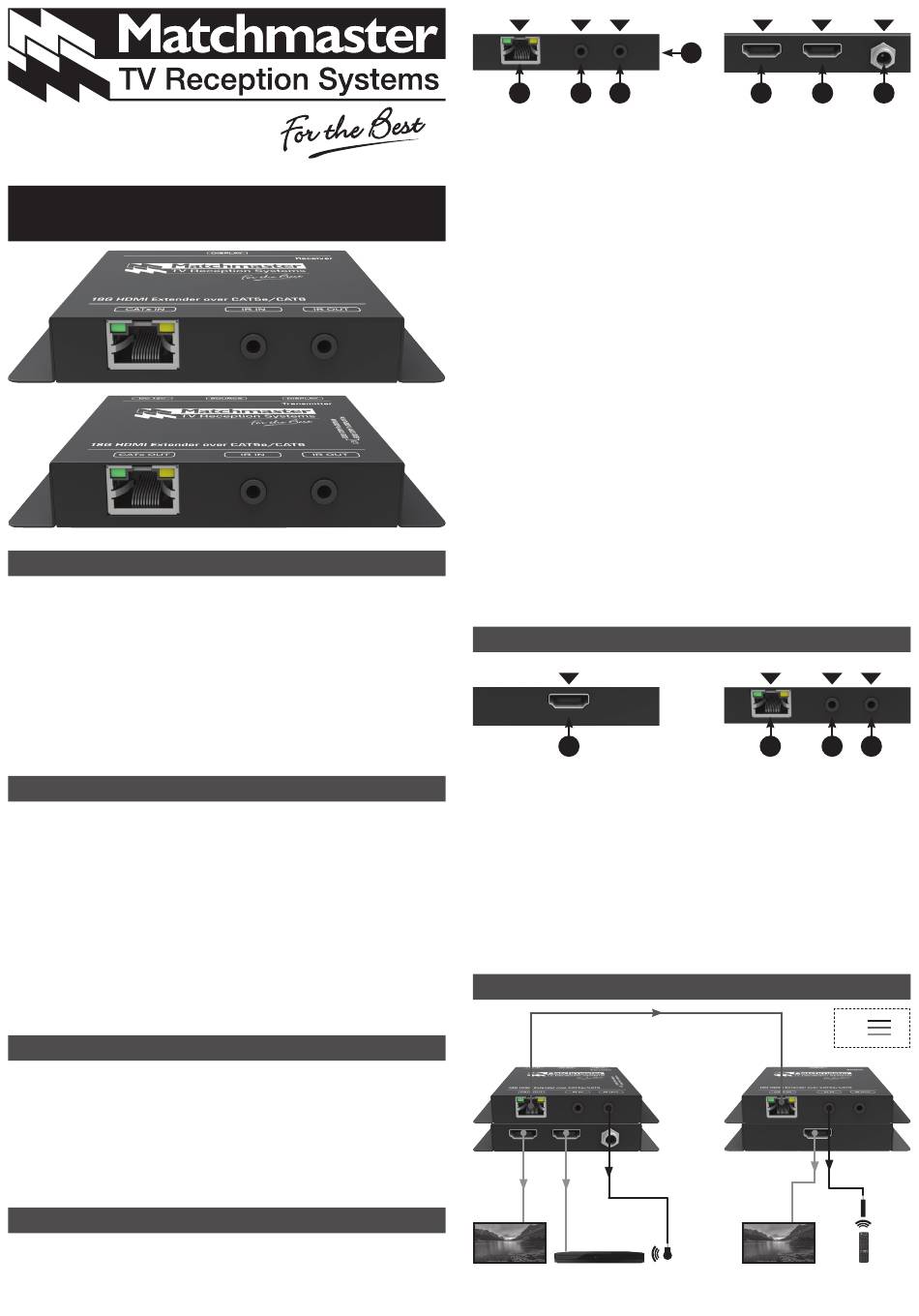

Matchmaster 34MM-4K50 Instruction Manual

34MM-4K50
INSTRUCTION MANUAL
STATEMENT
18G HDMI V2.0 Cost-effective Extender Set over CAT5e/CAT6

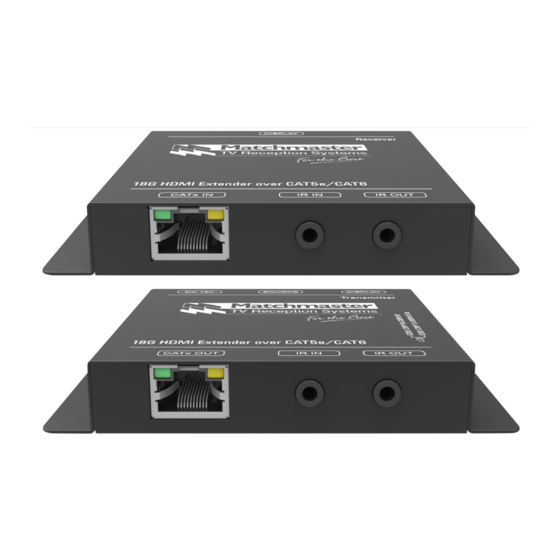

The 34MM-4K50 is a cost-effective point-to-point extender
set for HDMI V2.0 and IR signals; this kit supports 4K/
UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well
as HDMI data rates up to 18Gbps, HDCP 2.2 compliant; It
provides HDMI transmission up to 230 feet (70 meters) for
4K@60Hz 4:4: 4 or 1080p, over single CAT5e/6 cable. It
supports video resolution down-scaling, the 4K input can be
automatically downscale to 1080p output for compatibility
with 1080p display.

FEATURES

• Supports HDMI V2.0, up to 4K@60Hz 4:4:4, HDR 10, 18G,
HDCP 2.2.
• Extends 4K or 1080p HDMI signal up to 230 feet (70m)
over a single CAT5e/6 cable.
• HDMI loop out on transmitter.
• Bi-directional IR pass-through.
• Supports video resolution down-scaling, the 4K input can
be automatically degraded to 1080p output on receiver
for compatibility with legacy 1080p display device.
• Features visually lossless compression with no latency.
• Smart EDID management.
• Compact design, easy to install and simple to operate.

PACKING LIST

• 1x Transmitter (Tx)
• 1x Receiver (Rx)
• 1x IR Receiver
• 1x IR Emitter
• 2x Velcro Strips
• 1x Power Adaptor (12V DC 1A)
• 1x User Manual

TRANSMITTER PANEL DESCRIPTION

CAT x OUT IR IN IR OUT
1 2 3
1. CATx OUT: RJ45 port to connect the CATx IN port of
receiver by CATx cable. It supports 12V PoC to power the
receiver. The orange LED illuminates when there is a valid
HDMI signal input. The green LED illuminates when power
is applied.
2. IR IN: 3.5mm mini jack to connect IR receiver for IR pass-
through.
3. IR OUT: 3.5mm mini jack to connect IR emitter for IR
pass-through.
4. DISPLAY: Type-A female HDMI port to connect HDMI
display device.
5. SOURCE: Type-A female HDMI port to connect HDMI
source device.
6. DC 12V: DC connector for the power adapter connection.
7. EDID Management:
• EDID BYPASS: Press the button with paper clip or other
sharp tool to learn the EDID from the remote display
connected to the Receiver's HDMI out.
• EDID COPY Tx/3s: Press and hold the button for
3 seconds to copy the EDID from the local display
connected to the Transmitter's HDMI out.
• DEFAULT: Factory default, the source device learns
EDID from the TV which has the lowest resolution. Press
and hold the button while the product is in turned-off
period, and then release the button after 6 seconds of
power on can restore the default setting.
Note: If the standard resolution of the local display is lower than the
receiver's, the unit will output the video with the lower resolution to ensure
video can be shown on both displays.

RECEIVER PANEL DESCRIPTION

DISPLAY
1
1. DISPLAY: Type-A female HDMI port to connect HDMI
display device.
2. CATx IN: RJ45 port to connect the CATx OUT port of
transmitter by CATx cable. It supports 12V PoC and the
receiver can be powered from the transmitter. The orange
LED illuminates when there is a valid HDMI signal input.
The green LED illuminates when power is applied.
3. IR IN: 3.5mm mini jack to connect IR receiver for IR
pass-through.
4. IR OUT: 3.5mm mini jack to connect IR emitter for IR
pass-through.

CONNECTION DIAGRAM

Tx
Living Room TV 4K Blue-Ray
DISPLAY SOURCE
7
4 5
CAT x IN IR IN IR OUT
2
Rx
IR Emmiter Bedroom TV
DC 12V
6
3 4
IR:
Catx:
HDM:
IR Receiver
Display Remote
