Summary of Contents for Schlumberger Diver-NETZ

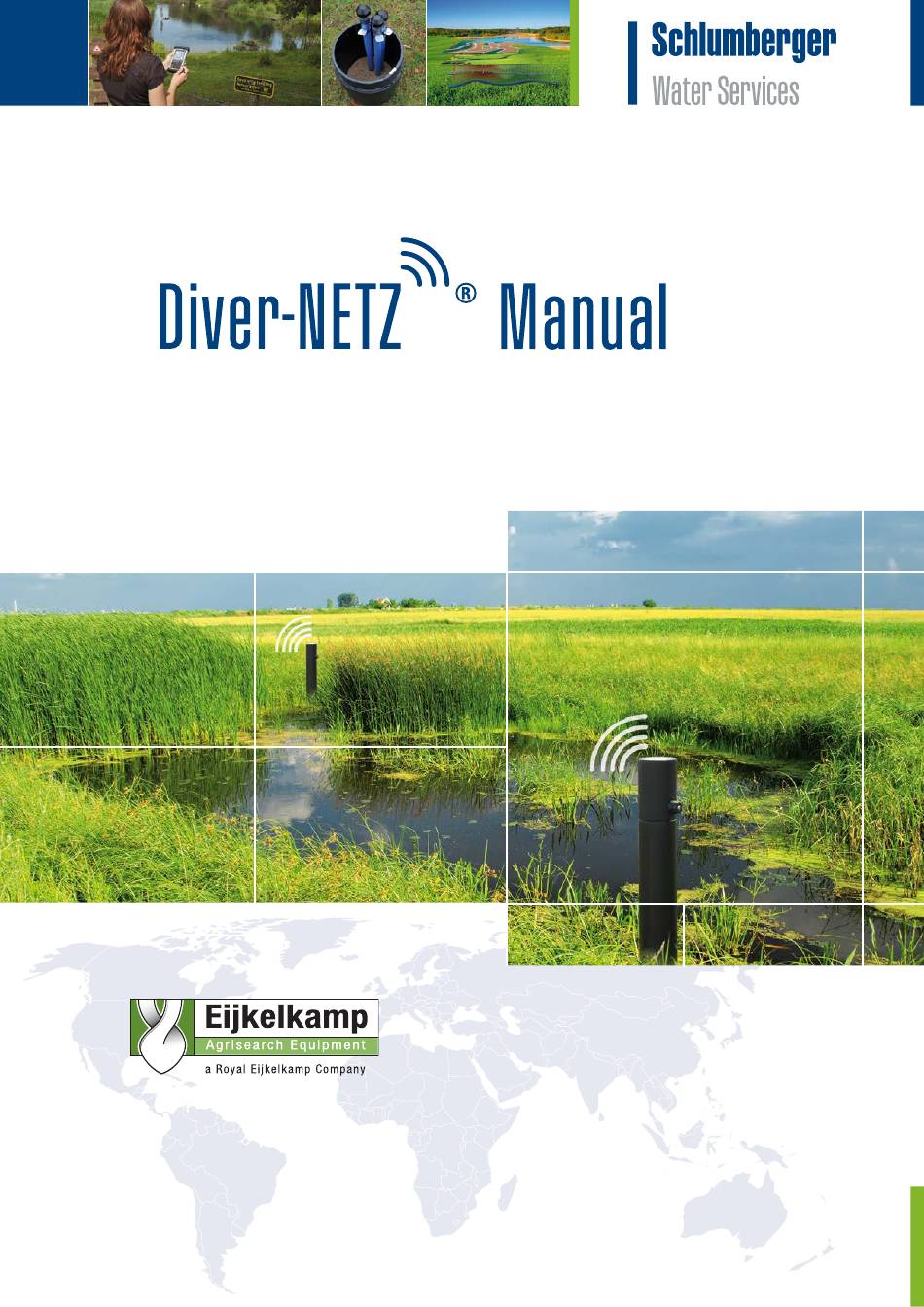

- Page 1 P.O. Box 4, 6987 ZG Giesbeek Nijverheidsstraat 30, 6987 EM Giesbeek, The Netherlands T +31 313 880200 F +31 313 880299 E info@eijkelkamp.com http://www.eijkelkamp.com www.swstechnology.com February 2014 copyright of SLB...
- Page 2 Schlumberger Water Services (Netherlands) BV Schlumberger Water Services PO Box 553...
- Page 3 This equipment may not be modified, altered or changed in any way without signed written permission from Schlumberger Water Services (Netherlands) BV. Unauthorized modification may void the equipment authorization from the FCC and will void the Schlumberger Water Services (Netherlands) BV warranty. FCC and IC RF Radiation Exposure Statement: This device complies with FCC and Industry Canada RF radiation exposure limits set forth for the general population (uncontrolled exposure).
- Page 4 IC REQUIREMENTS FOR CANADA This class B digital apparatus meets all requirements of the Canadian Interferencecausing equipment regulations. Cet appareil numérique de la classe B respecte toutes les exigences du règlement sur le matériel brouilleur du Canada. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 5: Table Of Contents
Preparing for installation 4.1. Diver-NETZ Mobile 4.2. Diver-NETZ Static 4.3. Equipment testing 4.4. Setting-up of the Diver-Hub webportal Installing Diver-NETZ in the field 5.1. Installing the Diver, DXT cable and Diver-DXT 5.2. Installing Diver-Gate(S) Collecting data 6.1. Diver-NETZ Mobile 6.2. - Page 6 Appendices Appendix I FAQ Diver-NETZ Appendix II DXT cable technical specifications Appendix III Diver-DXT technical specifications Appendix IV Diver-Gate(M) technical specifications Appendix V Diver-Gate(S) technical specifications Appendix VI Installation Diver-Gate driver Appendix VII Pairing the Diver-Gate(M) Appendix VIII Configuration of the Diver-Gate(S) www.swstechnology.com...
-
Page 7: Introduction
NETZ is a wireless method for reading out Diver data and programming Divers. A physical connection between the read-out equipment and the Diver is no longer necessary. From wireless field data collection and recording, to project execution in the office, Diver-NETZ is a complete network of first-class technologies that integrates field instrumentation with the industry’s latest wireless communication and data management capabilities. - Page 8 Diver-NETZ Mobile Diver-DXT Server < 500m DXT cable GPRS Radio Status Bluetooth Diver-Gate (M) Charge FTP server+ Diver-Gate(M) Data management solution Diver Diver-NETZ Static Diver-DXT Server < 500m DXT cable GPRS FTP server+ Data management Diver-Gate(S) solution Diver Page 2 www.swstechnology.com...
-
Page 9: Site Assessment
Evaluation of various antenna choices to optimize performance (only for Static solution). During the site assessment a complete set of Diver-NETZ equipment can be physically brought to the field for testing purposes. Additionally, other tools (such as a GSM/GPRS signal analyzer) can also be used during the site assessment. -
Page 10: Diver-Netz Components
3. Diver-NETZ components The components of the Diver-NETZ system are: • Diver datalogger(s) • DXT cable • Diver-DXT • Diver-Gate(M) • Diver-Gate(S) • Diver-NETZ software Additional components of Diver-NETZ are: • Diver-DXT plastic protective cap available in 2 models Cap for 1 Diver-DXT Cap for up to 4 Diver-DXT •... -
Page 11: Diver-Gate(M)
of the Diver-DXT will automatically synchronize once a day with the clock of the attached Diver datalogger. After activation the radio module is awake during the day from 7:00 AM until 23:00 PM, waking up every 14 seconds. During the night from 23:00 PM to 7:00 AM the radio is asleep and only wakes up once every 5 minutes. The radio can’t be deactivated (turned off) by the user. - Page 12 Control functionalities The following connectors and buttons are available on the Diver-Gate(M): • On/Off button to turn the device on or off. • USB port to connect Diver-Gate(M) to a PC via a micro USB cable. Furthermore the USB port is used to charge the internal battery of the Diver-Gate(M).
-
Page 13: Diver-Gate(S)
Power options The Diver-Gate(M) contains an internal rechargeable battery. The battery lifetime of a fully charged battery is maximum 10 hours under normal conditions. Before taking the Diver-Gate(M) in the field for collecting data it is advisable to completely charge the battery. 3.5. - Page 14 Radio antenna SMA connector GSM antenna UART port SMA connector External power supply Pinhole buttons There are four light-emitting diode (LED) indicators to indicate the charge status, the status of the radios (GSM/ GPRS and the Diver-DXT radio) and the general operating status. •...
-
Page 15: Diver-Netz Software
Battery pack consisting of 3 cells 3.6. Diver-NETZ software Different software applications can be used to communicate with Diver-NETZ components and/or visualize data: • Configuration tool: is a software tool to configure the Diver-Gate(S) settings (FTP, GSM, wake-up time and frequency). -
Page 16: Universal Sim Card
The Diver-Gate(S) is equipped with a Universal SIM card. In case the client wishes to use his own SIM cards he or she needs to contact SWS. 3.8. Diver-NETZ workflow The sections and illustrations below describe the Diver-NETZ workflows for the Mobile and Static solution in more detail. Diver-NETZ Mobile The Diver-Gate(M) is operated by the user via dedicated software on a mobile device (smartphone, tablet or laptop) or on a PC/laptop. - Page 17 Program Diver and baro datalogger remotely (start, stop, restart, change location name). All Diver-NETZ files can be imported into a local database on the SWS server. This database is connected to a dedicated webportal named Diver-Hub. Clients can access the portal through a secure login to connect to their Diver-NETZ data.
-
Page 18: Preparing For Installation
4. Preparing for installation This chapter describes the activities to undertake before deploying Diver-NETZ in the field. Diver-NETZ Mobile and Diver-NETZ Static solutions are discussed separately. 4.1. Diver-NETZ Mobile Before going into the field, the user needs to make sure the following steps are undertaken: •... -
Page 19: Diver-Netz Static
Diver-Gate(M). The Bluetooth range is approximately 10 m. The Diver-Gate(M) can only be paired with one device. 4.2. Diver-NETZ Static Before going into the field, the user needs to make sure the following steps are undertaken: Installation of Diver-Gate driver •... - Page 20 • Setting-up of the Diver-Hub webportal Installation of Diver-Gate driver The Diver-Gate driver is a computer program that controls the Diver-Gate(S) (or Diver-Gate(M)) when connected to a computer through a USB cable. The driver can be downloaded as an executable from the swstechnology website (www.swstechnology.com).
- Page 21 Installation of SIM card The SIM card is installed in tray of the SIM card holder. See illustration for more details. Configuration of the Diver-Gate(S) During the configuration of the Diver-Gate(S) the user will be able to program the following required settings: •...
-
Page 22: Equipment Testing
4.3. Equipment testing It is recommended to test the equipment before deploying it in the field. 4.4. Setting-up of the Diver-Hub webportal SWS will setup the webportal for the client based on the information provided by the client. A Diver-Hub template is available with all information needed to setup the portal. -
Page 23: Installing Diver-Netz In The Field
5.1. Installing the Diver, DXT cable and Diver-DXT When deploying both the Diver-NETZ Mobile and/or the Diver-NETZ Static solution in the field, numerous sets of Divers, DXT cables and Diver-DXTs (assuming they have been connected to each other) must first be installed at a monitoring point. -
Page 24: Installing Diver-Gate(S)
Diver-Gate(M) and the appropriate software. 5.2. Installing Diver-Gate(S) This section is specific for the Diver-NETZ Static solution. Since the Diver-Gate(S) can connect to the Diver-DXT and the Diver via radio there are many more installation options for the Diver-Gate(S). Depending on the amount of Diver-DXTs/Divers allocated to one Diver-Gate(S), the Diver-Gate(S) can be placed either within or outside a well cover. -
Page 25: Collecting Data
6.1. Diver-NETZ Mobile In order to collect data from the Diver-NETZ Mobile solution it is necessary to visit the field with a Diver-Gate(M) and a PC equipped with Diver-Office 2012.1 (or higher) or mobile device equipped with Diver-Mobile for Windows Mobile or Diver-Mobile for Android. -
Page 26: Maintenance
7. Maintenance 7.1. Maintaining the Diver-DXT The Diver-DXT has a built-in datalogger for the barometric pressure and ambient temperature. The sensor is located under the upper part of the Diver-DXT (see figure below). This sensor should be in open contact with the air pressure. - Page 27 Appendix I www.swstechnology.com February 2014 copyright of SLB...
-
Page 28: Faq Diver-Netz
FAQ Diver-NETZ Diver-NETZ Mobile and Diver-NETZ Static How do I store and handle the equipment? Before installation, the equipment should be stored in a safe place. However, it is important to know what the effects of storage are for the instrument. The Diver-DXT has a built-in battery which cannot be switched off. This means that the instrument is always active and consumes energy from the battery. - Page 29 How does Diver-NETZ Mobile work? The figure below depicts the setup of the Diver-NETZ. From left to right: The Diver is suspended on a Diver-DXT cable with on top the Diver-DXT. The Diver-DXT sends information (data) wirelessly to the Diver-Gate(M). The Diver-Gate(M) can be wirelessly connected through Bluetooth to a Windows Mobile based device.
- Page 30 Can I use a Pocket-PC? Yes, you can use a Pocket-PC with Diver-Mobile installed on it. The following hard- and software requirements are needed to install Diver-Mobile: • Windows Mobile version 6.1 and higher • Minimum of 4 GB of Flash memory (SD card) •...
- Page 31 Make sure you use the correct Network ID. For selecting the correct Network ID see the Diver-Mobile Manual. • The radio connection can be distorted by Wifi signals transmitting at the same radio band of Diver-NETZ • Check if the Radio LED on the Diver-Gate(M) is blinking during scanning and continuously on during data transfer.
- Page 32 Can I use my own FTP server? Yes, this is possible. In the Diver-Gate(S) you can configure the address of your own FTP server. Schlumberger Water Services can provide you with information regarding the requirements and steps to undertake this.
- Page 33 • Check if the Diver-Gate(S) makes a connection with the GSM network and strength of GPRS signal. This information can be retrieved from a communications log of the Diver-Gate(S). Please contact Schlumberger Water Services for more information. www.swstechnology.com February 2014...
-
Page 34: Appendix Ii
Appendix II www.swstechnology.com February 2014 copyright of SLB... - Page 35 Specifications Technical specifications DXT cable AS2xxx* Protection IP67** Length accuracy ±1% (≥1 cm) Cable stretch <1% Available lengths 1, 5, 10, 15, 20, 30, 40, 50, 60, 80, 100, 150, 200, 250, 300 m Maximum length 300 m Cable length adjustment up to 40% of maximum length Temperature range -20°C to 80°C...
-
Page 36: Appendix Iii
Appendix III www.swstechnology.com February 2014 copyright of SLB... - Page 37 Technical specifications Diver-DXT AS338 General Diameter Ø 49-23 mm Length 141 mm (including chassis connector) Weight Approx. 84 gr Housing material High Heat ABS Polylac® casing, Viton® and MBR o-rings, Cu Zn/Ni connector Protection IP67 (for max 7 days ) Operating temperature -20 °C to 60 °C (within specs) Storage / transport temperature...
- Page 38 Technical specifications Diver-DXT Environment Operating temperature -20 °C to 60 °C (within specs) Operating elevation range -300 to 5,000 m MSL (mean sea level) Pressure Up to MP (in air) Random vibration MIL-STD-810: 10 Hz, 0.02 g2/Hz , 60-1,000 Hz 0.02 g2/Hz , 1,000-2,000 Hz 6 dB/oct Mechanical shock ASTM D 3332: Free-fall drop 0.1 to 0.7 m...
-
Page 39: Appendix Iv
Appendix IV www.swstechnology.com February 2014 copyright of SLB... - Page 40 Technical specifi cations Diver-Gate(M) AS345 General Dimension 138 x 62 x 34 mm (with protection guard) Weight Approx. 181 gr Housing material ABS casing Protection IP52 (with protection guard) Operating temperature -20 °C to 60 °C (within specs) Storage / transport temperature -40 °C to 85 °C Power supply Internal rechargeable lithium ion battery,...
-
Page 41: Appendix V
Appendix V www.swstechnology.com February 2014 copyright of SLB... - Page 42 Technical specifi cations Diver-Gate(S) AS340 General Dimension 134 x 58 x 30 mm (without connectors) Weight Approx. 144 gr Housing material ABS casing Protection none Operating temperature -20 °C to 60 °C (within specs) Storage / transport temperature -40 °C to 85 °C Power supply 7-15 V DC Battery life...
-
Page 43: Appendix Vi
Appendix VI www.swstechnology.com February 2014 copyright of SLB... -
Page 44: Installation Diver-Gate Driver
Installation Diver-Gate driver Download the driver from the swstechnology website (Link: http://www.swstechnology.com/dataloggers/ wireless-accessories/diver-gate) Run the executable (Diver-Gate_Drivers_Setup.exe). A Setup window will appear. Click Next Driver is ready to be installed. Click Install www.swstechnology.com February 2014 copyright of SLB... - Page 45 Installation Wizard will appear. Click Next To complete the installation of the driver click Finish To complete the setup of the driver click Finish www.swstechnology.com February 2014 copyright of SLB...
-
Page 46: Appendix Vii
Appendix VII www.swstechnology.com February 2014 copyright of SLB... -
Page 47: Pairing The Diver-Gate(M)
Pairing the Diver-Gate(M) The following steps illustrate how to pair a Diver-Gate(M) with a Windows Mobile device to enable the Bluetooth connection. • Attach the pairing dongle to the Diver-Gate(M). • Turn on the Diver-Gate(M). • Activate the Bluetooth function on a mobile device (usually found under the Settings menu) and set it to be discoverable or visible to other devices. -
Page 48: Appendix Viii
Appendix VIII www.swstechnology.com February 2014 copyright of SLB... -
Page 49: Configuration Of The Diver-Gate(S)
Configuration of the Diver-Gate(S) The following steps give more information about configuring the Diver-Gate(S): Connect Diver-Gate(S) with the PC using the micro USB cable (this cable is not provided by SWS). Plug the battery (or power supply) in the Diver-Gate(S). In case the battery is already connected wakeup the Diver-Gate(S) by pressing the pinhole button. - Page 50 This window allows you to configure the project name, login and password for the destination folder on the FTP server. Login and password information will be provided by SWS. Click Next to continue. This window enables you to specify the Network ID applied to the specific Diver-Gate(S). After filling in the needed information, click Next.
- Page 51 This window enables you to set up the radio settings of DXT (number of Diver-DXT connected to a Diver-Gate(S)). Based on this number the software will automatically determine the recommended radio settings. The maximum number of Diver-DXT’s connected to a Diver-Gate(S) is 17. Click Next to continue. The following window enables you to set-up the wake up settings (data transmission frequency and wake-up time) of the Diver-Gate(S).
- Page 52 The configuration of the Diver-Gate(S) is finished. By selecting Create Overview’ a LOG file will be created with an overview of all configuration settings applied to the Diver-Gate(S). Once the Status LED on the Diver-Gate(S) stops blinking the configuration tool can be closed by clinking Exit.
