Siemens VDO Pro Cockpit Instructions Manual

Gauge Dimensions
Siemens VDO Limited Warranty
VDO North America warrants all merchandise against defects in factory workmanship and materials for a period of 24 months after purchase. This
warranty applies to the first retail purchaser and covers only those products exposed to normal use or service. Provisions of this warranty shall not
apply to a VDO product used for a purpose for which it is not designed, or which has been altered in any way that would be detrimental to the
performance or life of the product, or misapplication, misuse, negligence or accident. On any part or product found to be defective after examination
by VDO North America, VDO North America will only repair or replace the merchandise through the original selling dealer or on a direct basis. VDO
North America assumes no responsibility for diagnosis, removal and/or installation labor, loss of vehicle use, loss of time, inconvenience or any other
consequential expenses. The warranties herin are in lieu of any other expressed or implied warranties, including any implied warranty of merchant-
ability or fitness, and any other obligation on the part of VDO North America, or selling dealer.
(NOTE: This is a “Limited Warranty” as defined by the Magnuson-Moss Warranty Act of 1975.)
Siemens VDO . http://sso-usa.siemensvdo.com . Phone: 1-800-265-1818
3DQHO
*DXJH
0RXQWLQJ
%UDFNHW

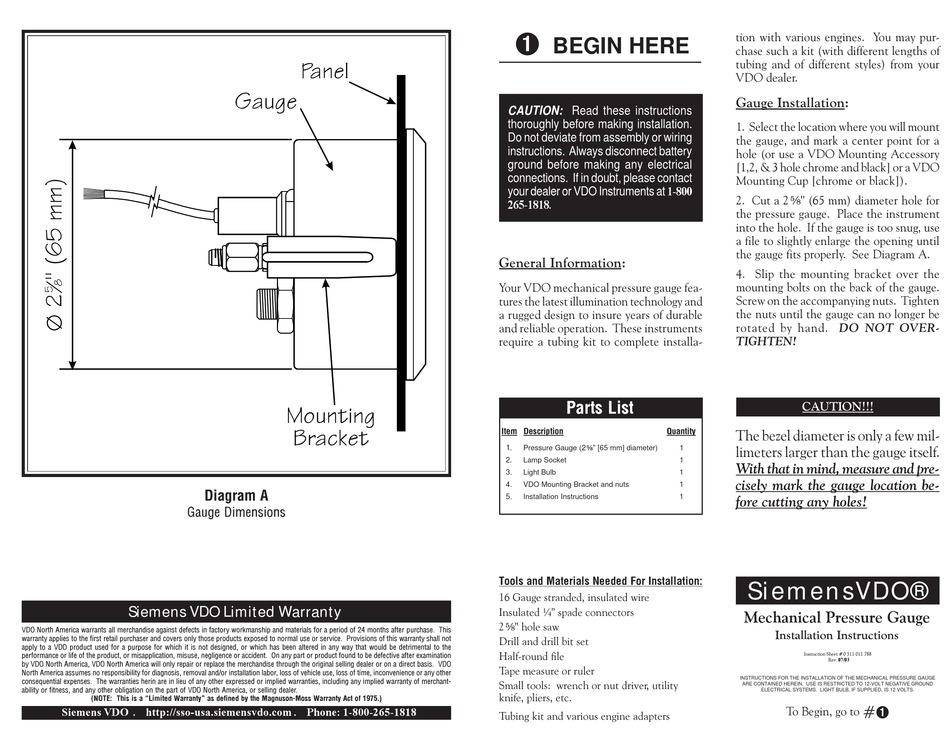

Diagram A
BEGIN HERE
CAUTION: Read these instructions
thoroughly before making installation.
Do not deviate from assembly or wiring
instructions. Always disconnect battery
ground before making any electrical
connections. If in doubt, please contact
your dealer or VDO Instruments at 1-800
265-1818.
General Information:
Your VDO mechanical pressure gauge fea-
tures the latest illumination technology and
a rugged design to insure years of durable
and reliable operation. These instruments
require a tubing kit to complete installa-
Parts List
Item Description Quantity
1. Pressure Gauge (2 ⁵⁄₈" [65 mm] diameter)
2. Lamp Socket
3. Light Bulb
4. VDO Mounting Bracket and nuts
5. Installation Instructions
Tools and Materials Needed For Installation:
16 Gauge stranded, insulated wire
Insulated ¼" spade connectors
2 ⁵⁄₈" hole saw
Drill and drill bit set
Half-round file
Tape measure or ruler
Small tools: wrench or nut driver, utility
knife, pliers, etc.
Tubing kit and various engine adapters
tion with various engines. You may pur-
chase such a kit (with different lengths of
tubing and of different styles) from your
VDO dealer.
Gauge Installation:
1. Select the location where you will mount
the gauge, and mark a center point for a
hole (or use a VDO Mounting Accessory
[1,2, & 3 hole chrome and black] or a VDO
Mounting Cup [chrome or black]).
2. Cut a 2 ⁵⁄₈" (65 mm) diameter hole for
the pressure gauge. Place the instrument
into the hole. If the gauge is too snug, use
a file to slightly enlarge the opening until
the gauge fits properly. See Diagram A.
4. Slip the mounting bracket over the
mounting bolts on the back of the gauge.
Screw on the accompanying nuts. Tighten
the nuts until the gauge can no longer be
rotated by hand. DO NOT OVER-
TIGHTEN!
CAUTION!!!
The bezel diameter is only a few mil-
limeters larger than the gauge itself.
1
1
With that in mind, measure and pre-
1
cisely mark the gauge location be-
1
fore cutting any holes!
1
SiemensVDO ®
Mechanical Pressure Gauge
Installation Instructions
Instruction Sheet # 0 511 011 788
Rev. 07/03
INSTRUCTIONS FOR THE INSTALLATION OF THE MECHANICAL PRESSURE GAUGE
ARE CONTAINED HEREIN. USE IS RESTRICTED TO 12-VOLT NEGATIVE GROUND
ELECTRICAL SYSTEMS. LIGHT BULB, IF SUPPLIED, IS 12 VOLTS.
To Begin, go to
#
