Summary of Contents for Technibel PA 338 X

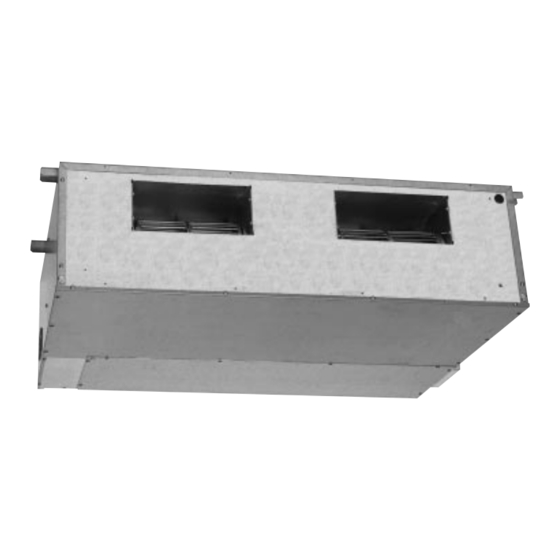

- Page 1 CP(V) 338 X / CP 338 R CP(V) 408 X / CP 408 R CP(V) 508 X / CP 508 R CP(V) 708 X PA-X/R PA 338 X PA 408 X PA 508 X PA 708 X PA 338 R...
- Page 2 MARKING This product marked conforms to the essential requirements of the Directives: - Low voltage no. 73/23 EEC, modified 93/68 EEC, - Electromagnetic Compatibility no. 89/336 EEC, modified 92/31 and 93/68 EEC. 1 - INTRODUCTION • The equipment must be installed, started-up and maintained by authorised and qualified personnel, in accordance with local rules and professional standards, following the installation instructions supplied with the appliance.
- Page 3 4 - USING THE REMOTE CONTROL UNIT 4.1 - COOLING MODEL ONLY • The control module is available separately. See instructions given with the unit. 4.2 - HEAT PUMP MODEL 4.2.1 - PRESENTATION • Keys: 1 - Increase temperature set-point. 2 - Decrease temperature set-point.
- Page 4 B) • Select the ventilation operating mode by using key 4. • Selection is carried out by successive presses on this key until the selection of the desired mode is indicated by a light. However, the device does not take into account the modification of the mode until after about 3 seconds. Consequently, when rapidly going through the different modes, the device does not take into account the intermediate modes and stays at its initial status.
- Page 5 B) OPTIONS • Remote switching to standby. It is possible to control the switching of the air-conditioner to standby by an external signal (e.g. from a time programming clock). In this case, all the lights extinguish (the control remains powered up). As soon as this signal stops, the control returns to the operating mode selected previously.
- Page 6 Due to our policy of continuous development, our products are liable to modification without notice. R.D. 28 Reyrieux BP 131 01601 Trévoux CEDEX France Tel. 33 4 74 00 92 92 - Fax 33 4 74 00 42 00 R.C.S. Bourg-en-Bresse B 759 200 728...
