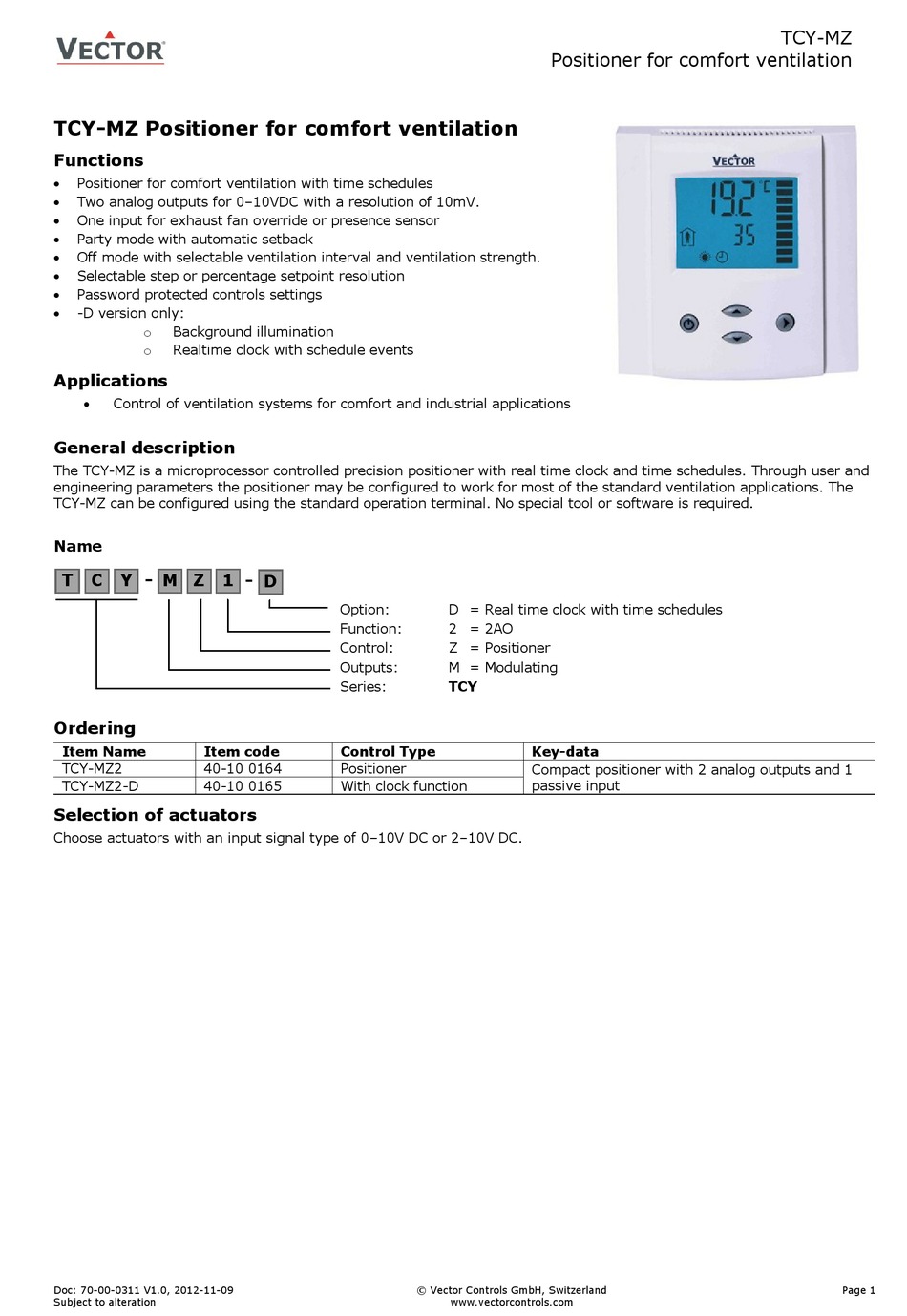

Vector TCY-MZ Manual

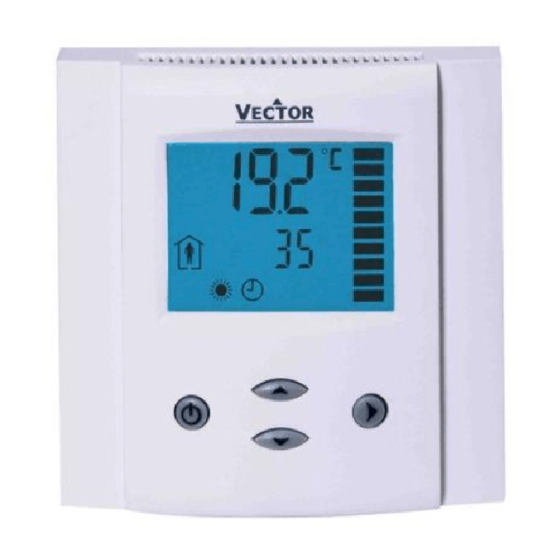

TCY-MZ Positioner for comfort ventilation
Functions
 Positioner for comfort ventilation with time schedules
 Two analog outputs for 0–10VDC with a resolution of 10mV.
 One input for exhaust fan override or presence sensor
 Party mode with automatic setback
 Off mode with selectable ventilation interval and ventilation strength.
 Selectable step or percentage setpoint resolution
 Password protected controls settings
 -D version only:
Background illumination
o
Realtime clock with schedule events
o
Applications
 Control of ventilation systems for comfort and industrial applications
General description
The TCY-MZ is a microprocessor controlled precision positioner with real time clock and time schedules. Through user and
engineering parameters the positioner may be configured to work for most of the standard ventilation applications. The
TCY-MZ can be configured using the standard operation terminal. No special tool or software is required.
Name
- M
T C Y Z 1 - D
Ordering
Item Name Item code
TCY-MZ2 40-10 0164
TCY-MZ2-D 40-10 0165
Selection of actuators
Choose actuators with an input signal type of 0–10V DC or 2–10V DC.
Doc: 70-00-0311 V1.0, 2012-11-09
Subject to alteration
Option: D = Real time clock with time schedules
Function: 2 = 2AO
Control: Z = Positioner
Outputs: M = Modulating
Series: TCY
Control Type
Positioner
With clock function
© Vector Controls GmbH, Switzerland
www.vectorcontrols.com
Positioner for comfort ventilation
Key-data
Compact positioner with 2 analog outputs and 1
passive input
TCY-MZ
