morse 82A-GT Series Quick Start Quide

The Specialist In Drum Handling Equipment
Models with AC, DC or Air Power Drum Lift
Capacity: 600 Lb. (272 kg)
MADE
IN
USA
Model # 82A-GT
• Overall width: 48.5" (123.2 cm), Overall length: 43" (109.2 cm)
• Turning radius: 53" (135 cm)
• Legs are 9" (22.9 cm) high and reach 20.75" (52.7 cm) in front of upright stanchion
• (2) 4" (10.2 cm) swivel casters at back
• (2) 6" (15.2 cm) wheels at front
• Horizontal 55-gallon drum reaches 18.5" (47 cm) beyond the front wheels of the
V-shaped base
• Reach onto pallet up to 20" (50.8 cm) high
• Lift upright 55-gallon drum up to 20" (50.8 cm) from floor. Heavy duty hydraulic lift
cylinders include a velocity fuse to provide a full line shut-off in the event of a line
failure.
• Maximum dispensing height: 26" (66 cm) for horizontal drum
• Capacity: 600 Lb. (272 kg)
morsedrum.com
Copyright 2020 - Morse Mfg. Co., Inc.
Drum Movers and Palletizers with Geared Drum Tilt
Model # 82A-GT

Dimensions

service@morsedrum.com
82A-GT Series
Drum Palletizers with Geared Tilt
Drum movers to palletize and dispense drum with
geared drum tilt control
This innovative design combines a V-shaped base to serve the corner of a
pallet, with geared tilt control to dispense a drum.
Models with
Powered
Drum Lift
(315) 437-8475
Spec Sheet F82A (Updated 21 Apr, 2020)

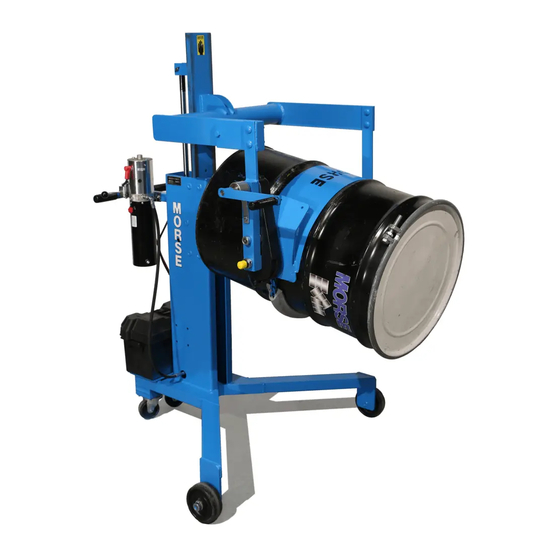

Hand Crank
Geared Drum
Tilt. Shown with
recommended
MORStop Tilt-Brake
option.
V-Shaped
Counterweighted
Base enables
Palletizing Drum
Model # 82A-GT-125
Move a drum onto
and off a pallet
Straddle a pallet up
to 41" (104 cm) wide
and 7" (17.8 cm) tall
103 Kuhn Rd.
Syracuse, NY, 13208 USA
1
