As with any new hobby or project, it will take time to get good at using our
tool and building furniture. You must first have a plan or sketch of what
you want to build, along with a tools and materials list before you begin.
This will allow you to obtain the raw materials, tools and other items
you'll need before you get started and realize you forgot something.
Another important issue is reading the natural twist, stress or other
deformities in the logs and using these skills to your advantage allowing
your pieces to become more unique as your abilities grow. Also as
important is to not over complicate your first few pieces so you can have
a "positive" experience.
Thank you for purchasing our tools!

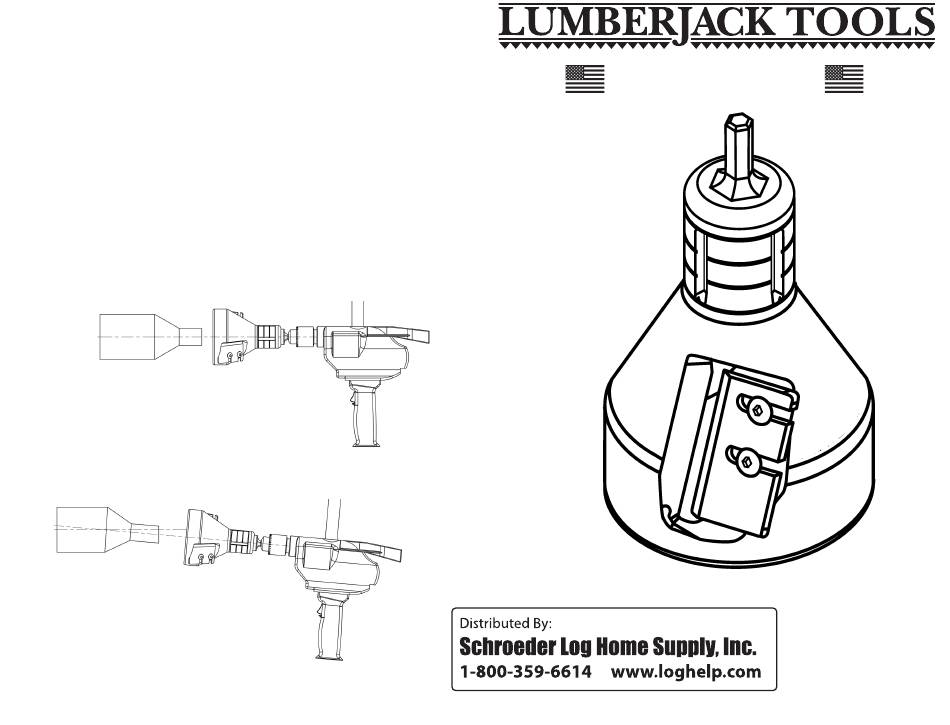

Figure: 1
Proper Cutting Technique
• Log and drill "on-center"
• Result - Straight Tenon
Improper Cutting Technique
• Log and drill "off-center"
• Result - Crooked Tenon
Lumberjack Tools, Inc.
P.O. Box 63928 • Colorado Springs, CO 80962 • 719-282-3043
Made in the U.S.A.
"In-Sight" Measurement
System

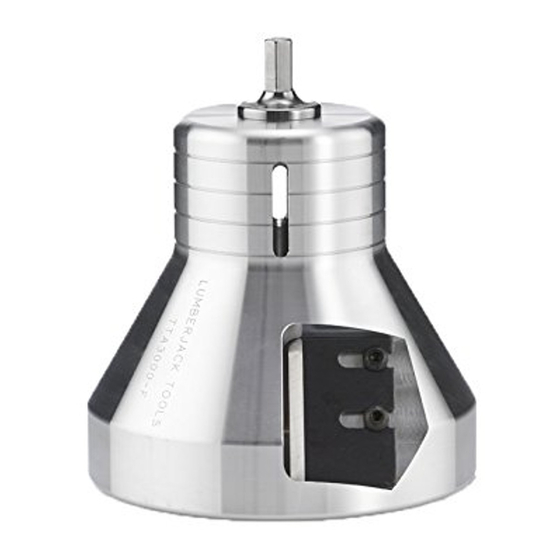

INDUSTRIAL SERIES – Dual Blade Tenon Cutters
REV: 07/08/11
MODELS:
Industrial Series TTA0750
Industrial Series TTA1000
Industrial Series TTA1500
Industrial Series TTA2000
Industrial Series TTA2500
Industrial Series TTA2563
Industrial Series TTA3000
Industrial Series TTA2000L
Industrial Series TTA2000E
Advertisement
Table of Contents
Summary of Contents for Lumberjack Industrial Series
- Page 1 Figure: 1 Proper Cutting Technique • Log and drill “on-center” • Result - Straight Tenon Improper Cutting Technique INDUSTRIAL SERIES – Dual Blade Tenon Cutters • Log and drill “off-center” MODELS: Industrial Series TTA0750 • Result - Crooked Tenon Industrial Series TTA1000...
- Page 2 Thank you for purchasing our Dual Blade - Industrial Series Tenon Cutter! • WARNING: IF THE LOG COMES LOOSE OR UNCLAMPED WHILE MAKING A TENON, DO NOT DROP THE DRILL OR Lumberjack Engineers, along with our craftsmen, have designed the safest, TRY TO GRAB THE LOG.
- Page 3 GETTING STARTED: SAFETY: WARNING: Securing the log is probably the most important SAFETY GENERAL SAFETY RULES factor that will arise while building log furniture. • never operate this tool under the influence of alcohol, drugs or • Obtain the log you what to tenon. Cut it to length and make sure medication.
- Page 4 USING THE In-Sight Measurement System: SAFETY continued: • this tool must be maintained by keeping the blades sharp and clean of buildup. Radial Measurement • when excessive force is required to cut, resharpen or replace the Rings every 1/2” blades. A sharp tool is a safe tool! 1-1/2”...
