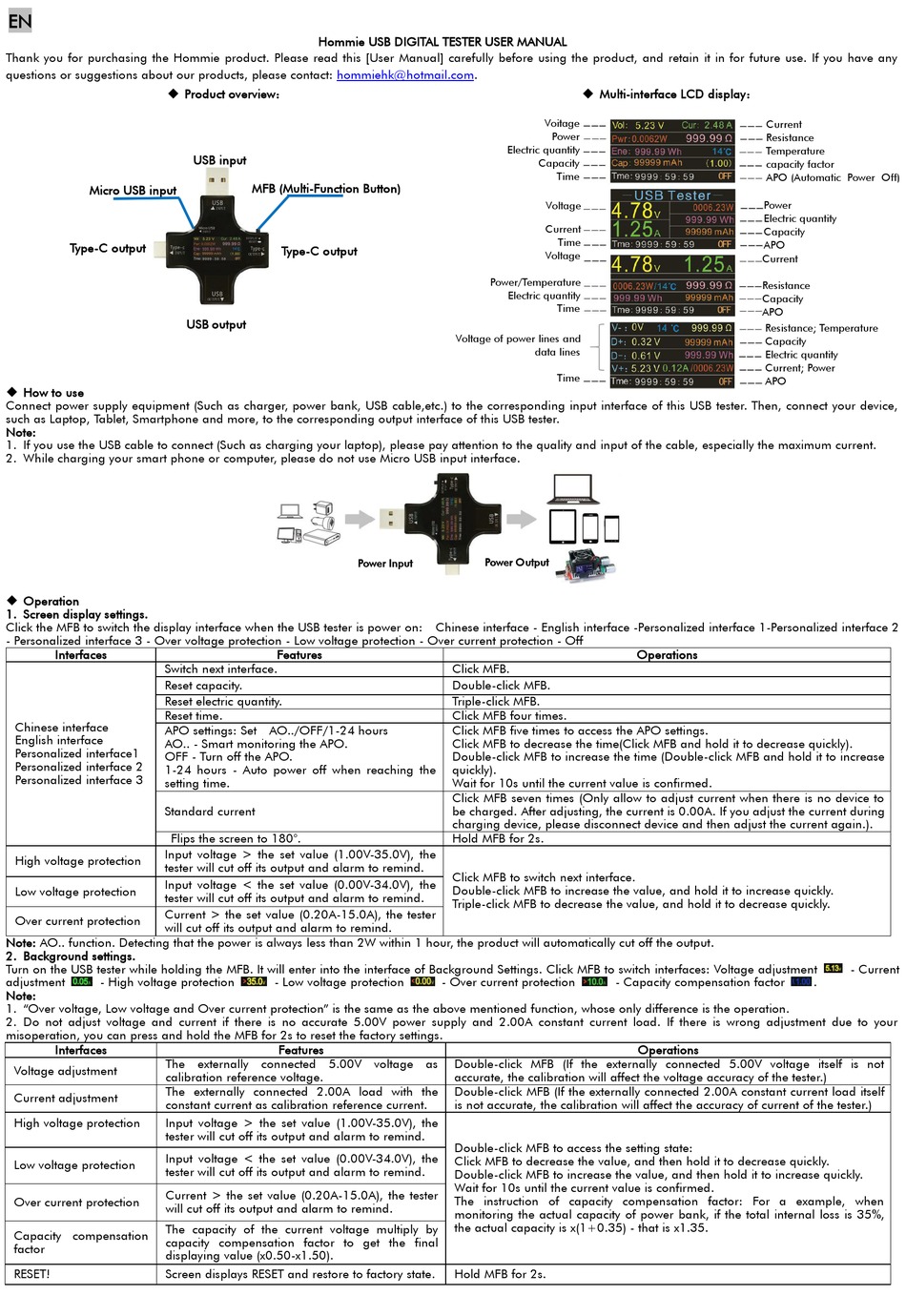

Hommie j7-c User Manual

EN
Thank you for purchasing the Hommie product. Please read this [User Manual] carefully before using the product, and retain it in for future use. If you have any
questions or suggestions about our products, please contact: hommiehk@hotmail.com.
 Product overview：
Micro USB input
Type-C output
 How to use
Connect power supply equipment (Such as charger, power bank, USB cable,etc.) to the corresponding input interface of this USB tester. Then, connect your device,
such as Laptop, Tablet, Smartphone and more, to the corresponding output interface of this USB tester.
Note:
1. If you use the USB cable to connect (Such as charging your laptop), please pay attention to the quality and input of the cable, especially the maximum current.
2. While charging your smart phone or computer, please do not use Micro USB input interface.
 Operation
1. Screen display settings.
Click the MFB to switch the display interface when the USB tester is power on:
- Personalized interface 3 - Over voltage protection - Low voltage protection - Over current protection - Off
Interfaces
Switch next interface.
Reset capacity.
Reset electric quantity.
Reset time.
Chinese interface
APO settings: Set AO../OFF/1-24 hours
English interface
AO.. - Smart monitoring the APO.
Personalized interface1
OFF - Turn off the APO.
Personalized interface 2
1-24 hours - Auto power off when reaching the
Personalized interface 3
setting time.
Standard current
Flips the screen to 180°.
Input voltage > the set value (1.00V-35.0V), the
High voltage protection
tester will cut off its output and alarm to remind.
Input voltage < the set value (0.00V-34.0V), the
Low voltage protection
tester will cut off its output and alarm to remind.
Current > the set value (0.20A-15.0A), the tester
Over current protection
will cut off its output and alarm to remind.
Note: AO.. function. Detecting that the power is always less than 2W within 1 hour, the product will automatically cut off the output.
2. Background settings.
Turn on the USB tester while holding the MFB. It will enter into the interface of Background Settings. Click MFB to switch interfaces: Voltage adjustment
adjustment - High voltage protection
Note:
1. "Over voltage, Low voltage and Over current protection" is the same as the above mentioned function, whose only difference is the operation.
2. Do not adjust voltage and current if there is no accurate 5.00V power supply and 2.00A constant current load. If there is wrong adjustment due to your
misoperation, you can press and hold the MFB for 2s to reset the factory settings.
Interfaces
The externally connected 5.00V voltage as
Voltage adjustment
calibration reference voltage.
The externally connected 2.00A load with the
Current adjustment
constant current as calibration reference current.
Input voltage > the set value (1.00V-35.0V), the
High voltage protection
tester will cut off its output and alarm to remind.
Input voltage < the set value (0.00V-34.0V), the
Low voltage protection
tester will cut off its output and alarm to remind.
Current > the set value (0.20A-15.0A), the tester
Over current protection
will cut off its output and alarm to remind.
The capacity of the current voltage multiply by
Capacity compensation
capacity compensation factor to get the final
factor
displaying value (x0.50-x1.50).
RESET! Screen displays RESET and restore to factory state.
Hommie USB DIGITAL TESTER USER MANUAL
USB input
MFB (Multi-Function Button)
Type-C output
USB output
Features
- Low voltage protection
Features
Electric quantity
Power/Temperature
Electric quantity
Voltage of power lines and
Power Output
Power Input
Chinese interface - English interface -Personalized interface 1-Personalized interface 2
Click MFB.
Double-click MFB.
Triple-click MFB.
Click MFB four times.
Click MFB five times to access the APO settings.
Click MFB to decrease the time(Click MFB and hold it to decrease quickly).
Double-click MFB to increase the time (Double-click MFB and hold it to increase
quickly).
Wait for 10s until the current value is confirmed.
Click MFB seven times (Only allow to adjust current when there is no device to
be charged. After adjusting, the current is 0.00A. If you adjust the current during
charging device, please disconnect device and then adjust the current again.).
Hold MFB for 2s.
Click MFB to switch next interface.
Double-click MFB to increase the value, and hold it to increase quickly.
Triple-click MFB to decrease the value, and hold it to decrease quickly.
- Over current protection
Double-click MFB (If the externally connected 5.00V voltage itself is not
accurate, the calibration will affect the voltage accuracy of the tester.)
Double-click MFB (If the externally connected 2.00A constant current load itself
is not accurate, the calibration will affect the accuracy of current of the tester.)
Double-click MFB to access the setting state:
Click MFB to decrease the value, and then hold it to decrease quickly.
Double-click MFB to increase the value, and then hold it to increase quickly.
Wait for 10s until the current value is confirmed.
The instruction of capacity compensation factor: For a example, when
monitoring the actual capacity of power bank, if the total internal loss is 35%,
the actual capacity is x(1+0.35) - that is x1.35.
Hold MFB for 2s.
 Multi-interface LCD display：
Voitage
Power
Capacity
Time
Voltage
Current
Time
Voltage
Time
data lines
Time
Operations
- Capacity compensation factor
Operations
Current
Resistance
Temperature
capacity factor
APO (Automatic Power Off)
Power
Electric quantity
Capacity
APO
Current
Resistance
Capacity
APO
Resistance; Temperature
Capacity
Electric quantity
Current; Power
APO
- Current
.
