  • Page 1 B150 60 cm Fan oven...

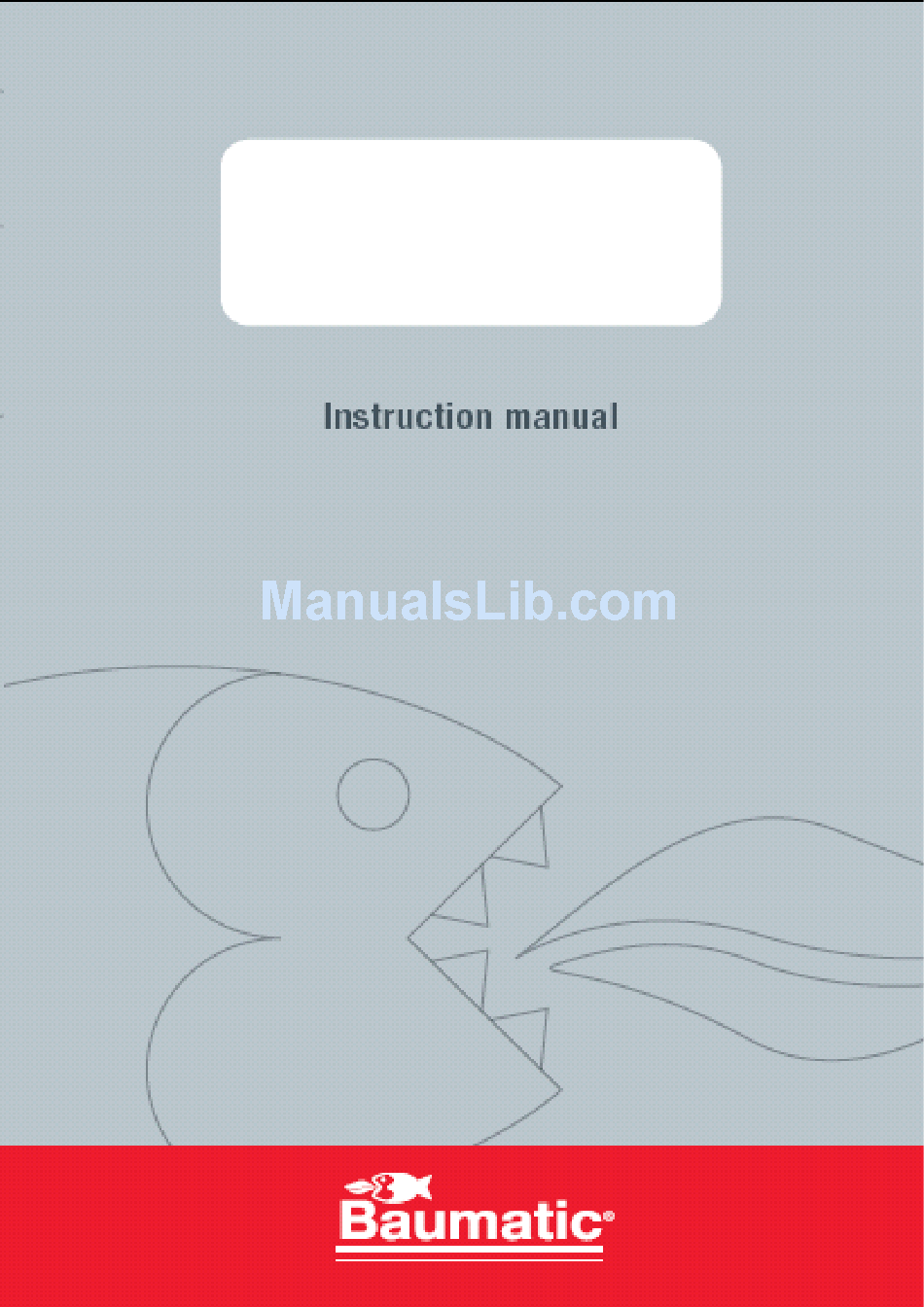

  • Page 2 ELECTRIC SINGLE 60cm OVENS USER AND INSTALLATION INSTRUCTIONS...
  • Page 3 For future reference please record the following information which be found on the Rating Plate and the date of purchase which can be found in the invoice: Model Number ……………………. Serial Number ……………………. Date of Purchase …………………….
  • Page 4 CONTENTS General Information Warning and Safety Instructions Instructions for Use Instructions for Installation Technical Data Conditions of Guarantee page 3-4 page 5-6 pages 7-14 pages 15-21 page 22 back cover...

  • Page 5: General Information

    Installation Instructions. The use for any other purpose or in any other environment without the express agreement of Baumatic Ltd, would invalidate any warranty or liability claim Your new appliance is guaranteed against electrical or mechanical defects subject to certain exclusions noted in Baumatic Ltd Conditions of Guarantee.
  • Page 6 CE Marking – 93/68 Low Voltage – 73/23 EMC – 89/336 Safety Standards – EN 60 335-1, EN 60 335 – 2 – 6. As Baumatic have a policy of continued product improvement, the right is reserved to adjust and make any modifications deemed necessary without notification.

  • Page 7: Safety Instructions

    Baumatic therefore strongly advise that babies and young children are prevented from being near or touching the appliance at any time.
  • Page 8 NICEIC registration recommended. Baumatic Ltd declines any responsibility for injury or damage to persons or property as a result of improper use or installation of this appliance. Heat, steam and moisture will be created during use, take care to avoid injury and ensure that the room is adequately ventilated.

  • Page 9: Instructions For Use

    The functions that can be selected are as follows: OVEN LIGHT (Select function for AS2, AS8, AS11, B150, B180, B200, B205, B495, B497, B550. Automatic when cooking mode is selected for all other models). The oven light remains on whilst the oven is in use.

  • Page 10: Full Grill

    LOWER ELEMENT MODE (AS2, AS11). This is for slow cooking or for warming up meals. FAN OVEN MODE (all models ). This provides even heating with the fan and allows different dishes to be cooked on different levels at the same time. FAN ASSIST MODE 1 (B200, B205, B495, B497, B550, AS8).

  • Page 11: Cooking Guidelines

    WARNING • Keep the oven door closed when using the GRILL. • Do not use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil under the grill – the high reflectivity of the foil can damage the grill element. HELPFUL HINTS •...
  • Page 12 USING THE 6 BUTTON ELECTRONIC TIMER (AS2, AS8, AS11, B180, B187, B200, B205, B495, B497, B550) Description of button functions: 1. Minute Minder 2. Cooking auto-function (duration) 3. End of cooking time (end time) 4. Manual operation 5. Reducing numbers programs 6.
  • Page 13 2) COOKING DURATION MODE: Set the oven to the required temperature and briefly press the ‘duration’ button (2). Set the required cooking duration time using the + or – buttons. The ‘pot’ symbol will remain illuminated and ‘AUTO’ will appear in the display. The timer will revert to time mode after 5 seconds.
  • Page 14 5) MINUTE MINDER MODE: Briefly press the ‘Minute Minder’ button (1). Set the required time by pressing the + or – buttons. The ‘bell’ symbol will appear in the display. The timer will revert to time mode after 5 seconds. When the set time has elapsed, an audible signal is emitted, to cancel the alarm mode briefly press the ‘timer’...

  • Page 15: Cleaning The Appliance

    USING THE min TIMER (B150) This run-back timer can be used independently of an oven cooking cycle for up to 60 minutes of timing. 1) To set the timer, turn the knob fully clockwise until it stops and then back to the required time.

  • Page 16: Removing The Oven Door

    VITREOUS ENAMEL PARTS Use only a cleaner that is recommended for this type of material – avoid chloride-based products such as bleach. DOOR GLASS Do not use any abrasive medium that could cause damage. Remember that if the surface of the glass panel becomes scratched, this could lead to a dangerous failure.

  • Page 17: Instructions For Installation

    When unpacked, check that the following parts are included with the appliance: • Baumatic Instruction and Installation Book • 1 oven shelf (B150, B180) or 2 oven shelves (all other models). • 1 set comprising Grill Pan, Trivet and handle. •...

  • Page 18: Installation Notes

    INSTALLATION NOTES 1. Ensure that the aperture for oven installation is the correct size as per Fig. 2 at page 22. 2. Ensure that the rear panel of the furniture housing has been removed. 3. All ovens with which this instruction book is provided may be installed without the need for any additional ventilation cut- outs.
  • Page 19 Fig.2 Installation distances for 60cm wide single electric ovens (shape of top casing may vary) Fig.3: Ventilation and cut-out requirements for installation of a single electric oven into a standard kitchen unit.
  • Page 20 Fig.4: Ventilation and cut-out requirements for installation of a single electric oven into a tall housing unit.

  • Page 21: Electrical Connection

    ELECTRICAL CONNECTION Before connecting the appliance, make sure the supply voltage marked on the Rating Plate corresponds with the mains supply voltage. WARNING – THIS APPLIANCE MUST BE EARTHED This appliance should be wired into a 13A double pole switched fused spur outlet having 3mm contact separation and placed in an easily accessible position adjacent to the appliance.

  • Page 22: Maintenance

    Before carrying out any maintenance, disconnect the appliance from the electricity supply. During the guarantee period, in case of need all service interventions should be referred back to the Baumatic Ltd Service department. Please note that intervention or repair by any unauthorised personnel will invalidate such guarantee.

  • Page 23: Replacing The Oven Light

    Remove all internal accessories to facilitate replacement of the liners. Replacement liners may be purchased directly from the Baumatic Spares Department (details as per back cover). Please quote product-type reference B600 and/or your appliance’s serial number...

  • Page 24: Electrical Details

    230V ac 50Hz Supply Connection: 13A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: AS2, AS8, AS11, B150, B180, B180, B187, B200, B205, B495, B497, B550 Mains supply lead: 3x 1.5mm2 type H05 RR-F <HAR> Oven Light Bulb: 25W/300°C Screw type pigmy...
  • Page 25 Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
  • Page 26 Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone...

  • Page 27: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
