Summary of Contents for DUALSUN solar heating system

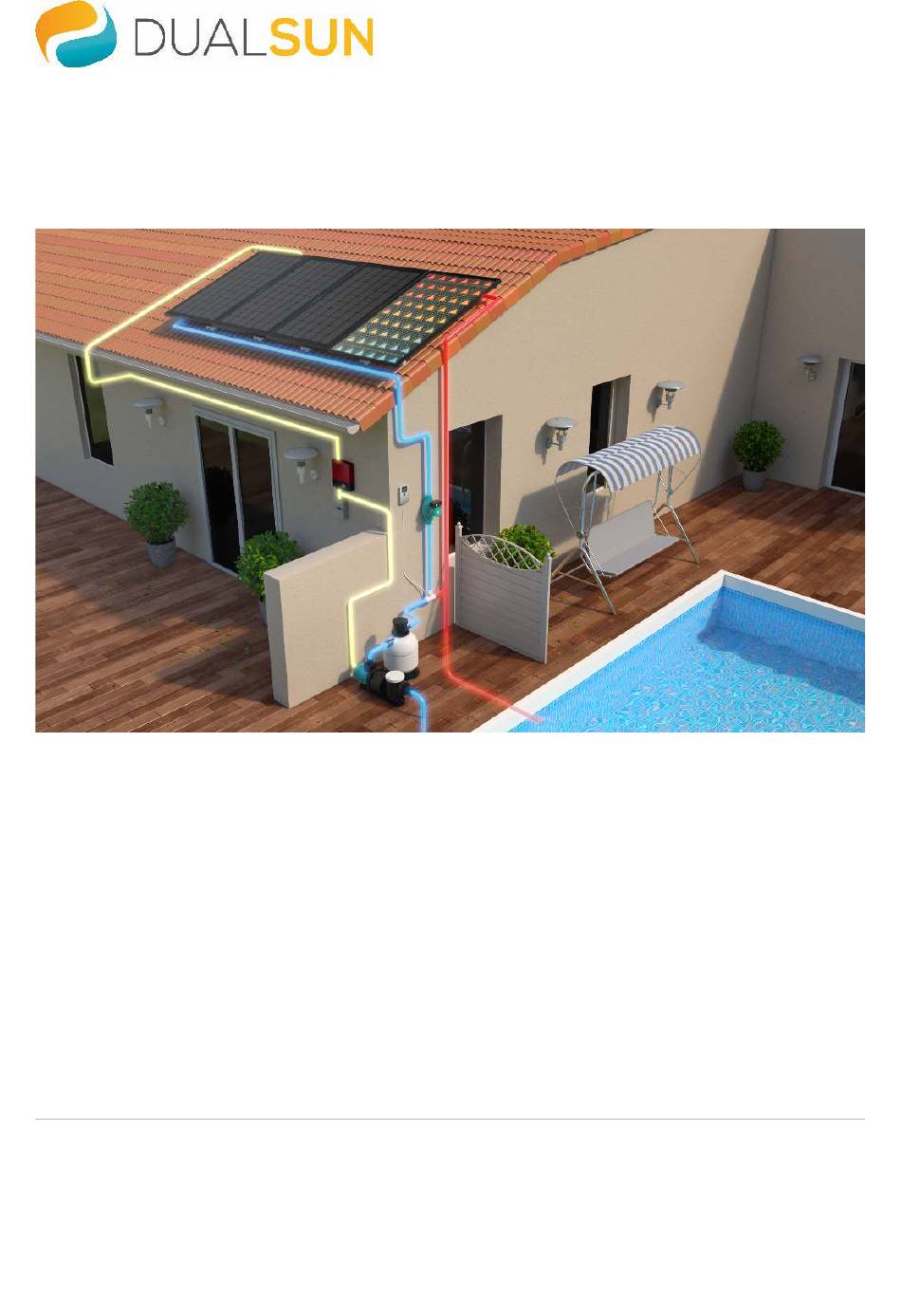

- Page 1 English Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools v3.6 2020...
-
Page 2: Table Of Contents
2.2. Recommended hydraulic flow rates for the DualSun SPRING panel ........7 2.3. Maximum allowable pressures for the DualSun SPRING panel ..........8 3. Installation of the DualSun solar heating system for individual swimming pools ......... 9 3.1. Operating principle and limits .................... 10 3.2. -
Page 3: Introduction
Please read this installation manual thoroughly and in detail in order to be able to fully exploit the functionality of the product. DualSun disclaims all liability for defetcs and damages that would result from non-compliance with the installation instructions (improper use, incorrect installation, handling error, etc.). -
Page 4: Solar Thermal Standards
• Notice d'installation, utilisation, maintenance DualSun SPRING • Notice d'installation, utilisation, maintenance - Ssystème de chauffage solaire DualSun pour piscine individu- elle - Annexe dimensionnement pompe de filtration 1.3.1. Pipes and fittings Use PVC pressure pipes and fittings with anti-UV treatment and Ø 40 outside or Ø 50 outside section. DO NOT USE ABS PIPES: they are rarely UV treated like PVC pipes and do not last as long. -
Page 5: Pvc Stripper And Glue
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 1.3.2. PVC stripper and glue It is important to strip and glue each PVC element well. Comply with the manufacturers' recommendations for use. Immediately after stripping each part, first glue the fitting thoroughly, then the end of the pipe. Fit the end of this pipe into the fitting by turning slightly so that the glue is evenly distributed and until each element is properly in place. -
Page 6: The Dualsun Spring Hybrid Panel
• Electricity through photovoltaic cells, • Heat via a heat exchanger, completely integrated into the panel. This heat is captured at the DualSun SPRING panel exchanger by a heat transfer fluid. The latter transports the heat to the heat transfer device, which restores the calories of the heat transfer fluid to thermal storage or directly to the tank to be heated. -
Page 7: Technical Characteristics Of The Dualsun Spring Panel
Maximum allowable pressures for the DualSun SPRING panel [8] 2.1. Technical characteristics of the DualSun SPRING panel The physical, photovoltaic and thermal characteristics of the nybrid DualSun SPRING panel can be consulted in the datasheet published in in our online library. -
Page 8: Maximum Allowable Pressures For The Dualsun Spring Panel
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 2.3. Maximum allowable pressures for the DualSun SPRING panel CAUTION It is imperative never to exceed the following pressures in DualSun panels: Maximum operating pressure = 1.5 bar... -
Page 9: Installation Of The Dualsun Solar Heating System For Individual Swimming Pools
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 3. Installation of the DualSun solar heating system for indi- vidual swimming pools Operating principle and limits [10] Constitution of the DualSun solar pool heating kit [11]... -
Page 10: Operating Principle And Limits
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 3.1. Operating principle and limits (1) = Pool filtration pump (9) = T 50/40/40 (10) = Non-return valve Ø50 (2) = Sand filter (11) = T 50/50/50... -
Page 11: Constitution Of The Dualsun Solar Pool Heating Kit
The DualSun swimming pool heating kit is made up of the elements marked (3) to (11) in the diagram above. This kit allows the connection of DualSun SPRING solar panels in bypass on the swimming pool filtration cir- cuit, without additional pump, by means of a BY-PASS system by motorized 3-way valve. -
Page 12: Constitution Of The Dualsun Solar Pool Drain Kit
For aesthetic reasons, it is possible to paint PVC pipes: take a good quality paint, anti UV if possible. 2. Selection of the diameter of the transfer pipes We have defined a chart to choose the diameter of the pipes according to the number of DualSun SPRING panels connected to the solar swimming pool heating system. -
Page 13: Operation Of The Filtration Pump And Verification Of Its Characteristics
For example, for a swimming pool water temperature of 24 ° C, the filtration time must be equal to 12 hours daytime. The solar heating system will bypass the filtration flow, but it is not intended to activate the filtration. Normally during the period of use of the swimming pool, the ambient temperature is higher than the tempera- ture of the swimming pool, therefore the filtration flow is systematically bypassed in the panels to recover the available energy. -
Page 14: Installation Of The Dualsun Bs/2 Solar Controller
3.7. Installation of the DualSun BS/2 solar controller 3.7.1. General The solar panels must be slaved to an automatic DualSun BS/2 controller allowing the pool to be maintained at the desired temperature. The principle of operation of a solar control system is to direct the water from the filtration circuit into the solar... -
Page 15: Technical Characteristics Of The Dualsun Bs/2 Solar Control Unit
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 3.7.3. Technical characteristics of the DualSun BS/2 solar control unit • Inputs : 4 Pt1000 temperature probes • Outputs : 1 semiconductor relay • Cut-off capacity : 1 (1) A 240 V ~ (semiconductor relay) •... -
Page 16: Electrical Connections Of The Dualsun Bs/2 Solar Control Unit
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools • Make all the electrical connections (5) according to the connection plan, see Electrical connections of the Du- alSun BS/2 solar control unit [16]. • Replace the cover on the housing (6). Screw the housing with the corresponding screw 3.7.5. - Page 17 Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 1. Wiring of the DualSun BS / 2 solar controller: Power supply 3-way valve Temperature probes Electrical DualSun 3-way DualSun Probes DualSun network regula- valve ter- regulation...
- Page 18 • S2 swimming pool temperature sensor: The DualSun temperature sensor is a PT1000 sensor, supplied with the BS/2 solar control unit with a clamp. • It is placed on the PVC pool filtration pipe using the clamp, between the filtration pump and the sand fil- ter.
-
Page 19: Dualsun Bs/2 Control Buttons
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 3.7.6. DualSun BS/2 control buttons The DualSun BS/2 solar control is controlled with the 3 keys loca- ted under the screen: • Key (2) = Advance in the menu or increase the values (+) •... -
Page 20: Technical Data Of The Motorized 3-Way Valve
In the "automatic" position, the motorized 3-way valve, installed on the swimming pool's filtration circuit and controlled by the DualSun BS/2 solar control, will direct the water towards the solar collectors, provided that the temperature difference between these and the swimming pool water is not lower than the value indicated by the "Temperature difference"... - Page 21 Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools The 3-way valve operations are automatic and take less than a minute to switch from one state to another. The 3-way valve must not be installed with its motor at the bottom.
-
Page 22: Electrical Connection Of The Motorized 3-Way Valve
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 3.8.3. Electrical connection of the motorized 3-way valve Wiring to be carried out directly between the terminal block of the DualSun BS/2 control unit and the terminal block of the 3-way valve: 3-way valve ter-... -
Page 23: Commissioning Of The Dualsun Individual Swimming Pool Heating System
They can accept a water salinity of up to 7 grams per liter - temperature 40 ° C. The procedure for commissioning the DualSun BS/2 solar control unit and the motorized 3-way valve is to be carried out as follows: •... - Page 24 Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools Step 1: Checking that the 3-way valve is correctly fitted - Checking that the 3-way valve is correctly fitted - OFF mode: ON mode: • Check that MAN1 is OFF •...
- Page 25 Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools IMPORTANT Installation in a frost risk area: It is imperative to carry out a drain test before the final commissioning of the installa- tion, see Shutdown of the DualSun individual solar pool heating system [26] When the installation is running, the solar control unit displays the following symbols: •...
-
Page 26: Shutdown Of The Dualsun Individual Solar Pool Heating System
5. Shutdown of the DualSun individual solar pool heating system To stop the DualSun individual swimming pool solar heating system, stop the 3-way valve by switching MAN1 to OFF and close the isolation valves (2). IMPORTANT For frost risk areas, emptying the installation is compulsory and requires fitting the Du- alSun drain kit. -
Page 27: Guarantees
This warranty takes effect on the invoice date of the equipment. 6.1. Commissioning report The commissioning report can be downloaded from the DualSun online library IMPORTANT It is important to fill it out correctly in order to activate the DualSun guarantees. -
Page 28: General Recommendations
Installation, use, maintenance manual - DualSun solar heating system for individual swimming pools 7. General recommendations Please read this manual carefully before starting the installation, the advice provided will help you en- sure the safe installation, use and maintenance of your DualSun device.
