BBA54 / BBA54-12

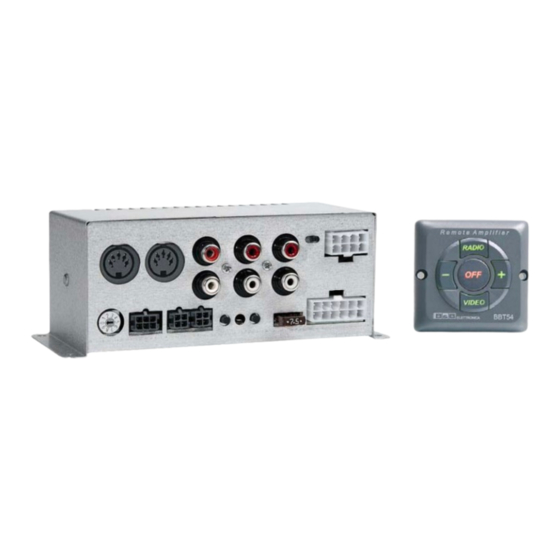

Remote Stereo Amplifier
Operating instructions
B & B elettronica srl
41100 MODENA (Italy) - Via Malavolti, 49
Tel. +39 059 254575 Fax. +39 059 254636
www.bbelettronica.it
e-mail: bb@bbelettronica.it
8
10
3
6
2
5
volume
1
volume
2
RADIO
select radio + power-on for amplifier
3
VIDEO
select video + power-on for amplifier
4
OFF
amplifier off
5
microphone 1 operating light
MK1
6
microphone 2 operating light
MK2
7
GAIN
reduce gain
8
GAIN
increase gain
9
LED light
LED
10
9
7
1
4
Advertisement
Table of Contents
Summary of Contents for B&B BBA54

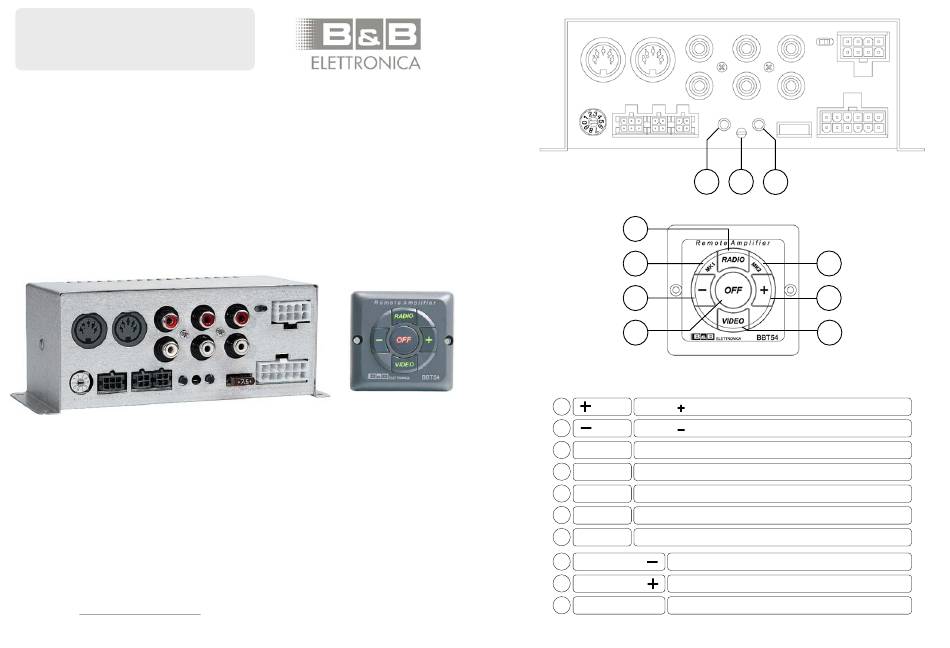

- Page 1 BBA54 / BBA54-12 Remote Stereo Amplifier Operating instructions volume volume RADIO select radio + power-on for amplifier VIDEO select video + power-on for amplifier amplifier off microphone 1 operating light microphone 2 operating light GAIN reduce gain B & B elettronica srl...
- Page 2 Weight 0,750 Kg utilization of this device. Please, follow the instructions to carry out the “BBA54” amplifier connections: Inputs chapter 4 CONNECTIONS Radio power 1÷12 V RMS on 200 Ohm...
- Page 3 BBA54-12 Technical Specifications Operating the BBA54 and BBA54-12 without the keypad 2 When power is supplied the amplifier goes into standby mode (BBA54 or BBA54-12) ALC = Automatic Level Control (only active when the keypad is connected) and supplies power to the connected radio .
- Page 4 3 Operating the BBA54 and BBA54-12 with the keypad When power is supplied the amplifier goes into standby mode (BBA54 or BBA54-12) and supplies power to the connected radio . By pressing the relevant (Radio-Tape/CD) button for the required source...
