Summary of Contents for DSE DM-WFC2

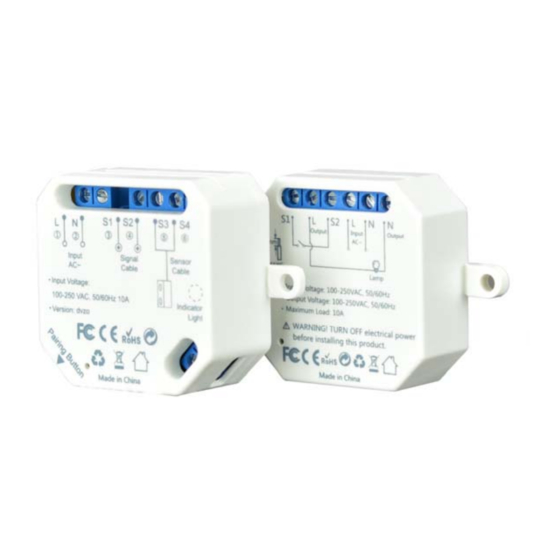

- Page 1 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:1 WiFi remote controls DM-WFC2 DM-WFC3 DM-WFL1 Installation manual How to install the DM Series wifi remote control DSE SRL - ITALY - WWW.DSE.EU...
- Page 2 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:2 What did you buy These wifi remote controls are devices that can add the remote control via the Internet via WiFi to any electrical device. You can connect these remotes to your WiFi network and then operate them at your leisure with the included app, both in local wifi connection and through the Internet, when you are not at home.
-
Page 3: Electrical Connection
Electrical connection DM-WFC2 DM-WFC2 is a switch with stable ON / OFF switching, remote controlled via wifi. You can use it to supply power to any 220V up to 10A electrical appliance, such as lighting, acoustic indicators, irrigation, etc. It also has a switch input to be able to operate parallel to a traditional local control. - Page 4 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:4 USE OF LOCAL CONTROL You will learn to use the wifi command shortly in the app explanations. As for the local switch, remember that each time the switch is activated, both during opening and closing, the state of the ON / OFF relay will change.
- Page 5 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:5 Electrical connection DM-WFC3 DM-WFC3 is a remote control for electric locks, gate openers or garage doors. It provides an impulsive contact that activates the device and also a status contact that you can optionally connect to signal to the remote control if the door is open or closed.
- Page 6 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:6 Electrical connection DM-WFL1 DM-WFL1 is an E27 lamp holder that can be controlled via WiFi. You can simply screw it between the original lamp holder and the bulb. It is ideal for outdoor lighting on poles.
- Page 7 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:7 Placement When choosing the installation location of the product, pay attention to these precautions CHECK THE WIFI COVERAGE Before placing the remote control in its final position, remember that this device must connect to your wifi network in order to function.
- Page 8 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:8 Download the Smart Life app In order to use the product with your mobile phone, you must first connect the device to your wifi network. To do this you need the Smart Life APP which you can download for free from Google Play or Apple Store.
-
Page 9: Configure The Remote Control
1 - Press ADD DEVICE 2 - Choose the type of device according to the following table DM-WFC2 = SWITCH (WIFI) - Do not use the Zigbee version DM-WFC3 = DOOR OPENER or SMART GARAGE DOOR OPENER DM-WFL1 = SWITCH (WIFI) - Do not use the Zigbee version... - Page 10 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:10 3 - Now power your device and check the red LED that is seen transparently through the external plastic, on a new piece it should be flashing. If it does not flash, press the PAIRING button on the device for 5 seconds, until the red LED starts to flash.
- Page 11 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:11 4 - Now you have to choose your wifi network to connect to and enter the access password. If you have networks at different frequencies remember that the device only supports 2.6 GHz WiFi networks.
- Page 12 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:12 DSE SRL - ITALY - WWW.DSE.EU...
-
Page 13: Use The Remote Control
INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:13 Use the remote control Now that you have configured your device you can control it with the app. Thanks to the P2P cloud server you can also control it through the Internet. The icons and options you see in this section may vary slightly depending on the type of remote you purchased. - Page 14 INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:14 RECORD - Here you can see the history of your activations ALARM - Some remote controls that have a status detection allow you to receive notifications on the phone whether the status is open or closed.
-
Page 15: Advanced Options
INSTALLATION MANUAL DM-WFC2 / 3 WFL1 - WIFI REMOTE CONTROLS Page:15 Advanced options From the device command page you can access some advanced options by pressing the edit icon (pencil) at the top right VOICE COMMAND You can connect your remote control with other voice command devices.
