Summary of Contents for Festivo MED

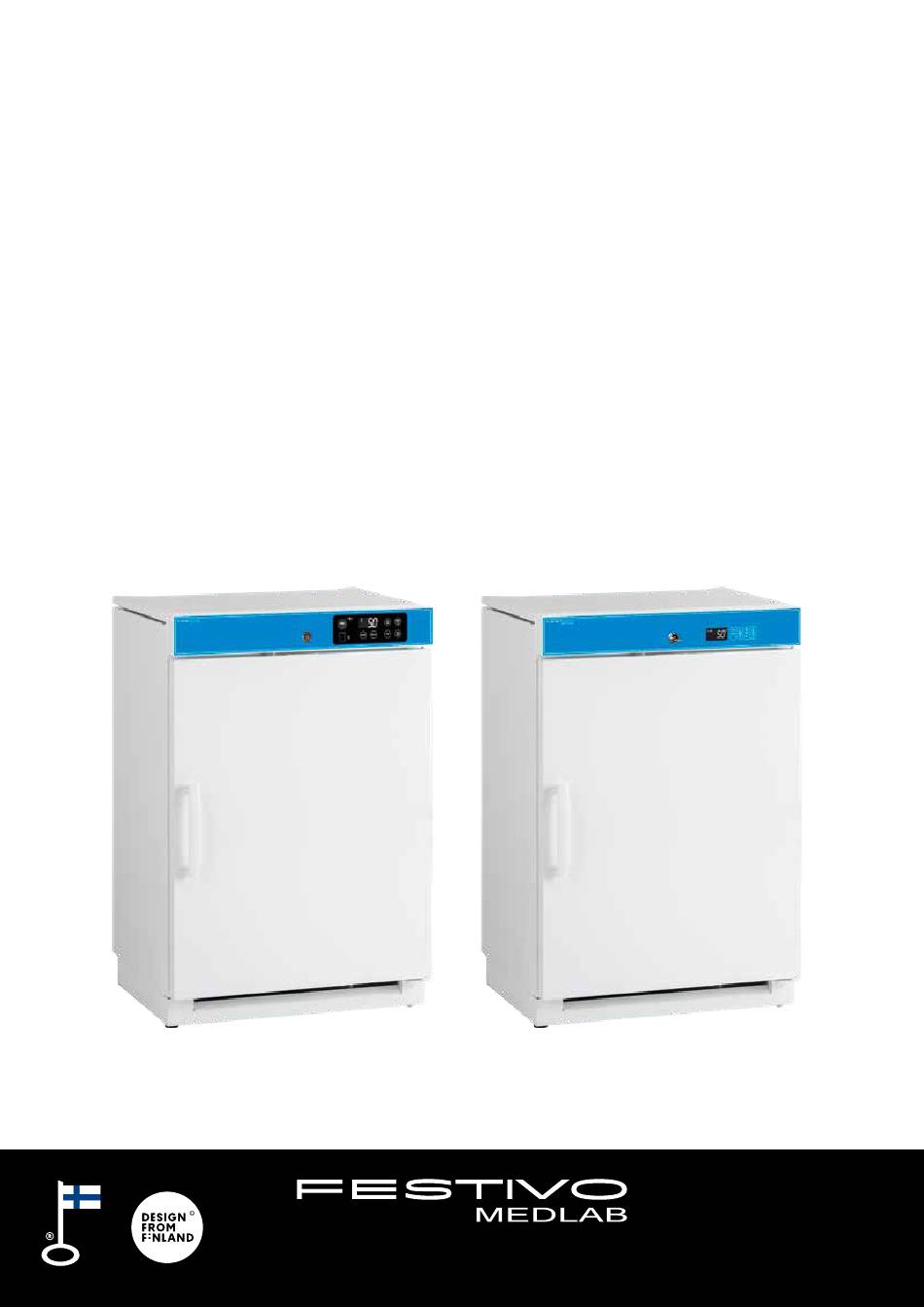

- Page 1 Installation and operation manual Medical and Laboratory Cabinets • MED, MEDLAB / MED SAVE, MEDLAB SAVE medicin and laboratory cabinets • BB bloodbank Rev 092020b...
-
Page 3: Table Of Contents
Contents Purpose of use Reception Installation Introduction Control unit MED XW70L Control unit keys Use of temperature control Functiondisplaylights Alarms Pr1userlevelparametersfortemperatureanddooralarmsandtheirdelay timesaswellassensortemperaturevalues ControlunitMEDSAVEXW757K Functiondisplaylights Use of temperature control Settheclocktime Storageoftemperatureandalarmdata HowtoexportdataandalarmstoUSB Clearingtemperatureandalarminformationfromthedevicesmemory Alarms Pr1userlevelparametersfortemperatureanddooralarmsandtheirdelay timesaswellassensortemperaturevalues P4controlsensor Batterybackup(standardonBBmodels,optionalonMEDmodels) Cleaning Noisesgeneratedbythecabinet’srefrigerationsystem Operationfailures... -
Page 4: Purpose Of Use
Purpose of use The Med, Medlab and BB refrigerators and freezers and combination cabinets are specifically designed for use in the health care and laboratory sectors. They are for the storage of temperature sensitive pharmaceuticals or samples. The operator is responsible that if the cabinet is being used for the storage special items that the equipment is compliant with the standards required for such storage. -
Page 5: Introduction
Adjust the cabinet to ensure it is horizontal in all directions, by using the adjustable feet, check with spirit level if necessary, always ensure that all feet are in contact with the ground. Fasten a double-door refrigeration cabinet, a combination cabinet, glass door cabinet and MEDLAB 320 to the wall so as to prevent it from falling forward. - Page 6 Note! Cabinetsareveryhermetic.Freezer(F)cabinetdoordoesnotopenjustafterclosing.Wait foramomentuntilthepressureisequalizedanddooropensslightly. Note! Toavoidevaporatorcorrosion,itisimportanttokeepgoodswithhighacidcontent/ vinegaretc.inairtightcontainers. Note! Donotpreventventilationonthefloor.Productsmustneverbeplaceddirectlyonthe floorofthecabinet,butonlyonthebottomshelf.Whenplacinggoodsontotheshelves ensuretheydonotoverhangthefrontoftheshelves,asthiswillalsointerruptair circulation.Nevercoverthefanonthebackwall,ortheventsonthebothsidesofthe backwall. ENGLISH...
-
Page 7: Control Unit Med Xw70L
MED XW70L Control unit MED XW70L SIngle- and double door refrigerators, single door freezer cabinets Double door combination cabinets Lower part chiller Upper part chiller or freezer Control unit keys Not in use Temperature control key Temperature control key manual defrost... -
Page 8: Use Of Temperature Control
MED XW70L Use of temperature control Switch on the cabinet • Switch the power on by pressing the key Adjust temperature • Press once key , then the display will show the set temperature. • Adjust temperature with keys •... -
Page 9: FunctionDisplayLights
MED XW70L Functiondisplaylights Light on Compressor is running Light flashing Time delay to protect compressor after start-up Light on The evaporator fan is on Light flashing Fans delay after defrost in progress. Light on Defrost is on Light flashing Time delay after defrost... -
Page 10: Alarms
MED XW70L Alarms HA High temperature alarm The temperature inside the cabinet has exceeded the set alarm temperature. The alarm can be instigated by sudden icing of the evaporator. Initiate additional manual defrost. See instructions on the previous page. Ensure the cabinet has not been loaded with warm products. -
Page 11: Pr1 User Level Parameters For Temperature And Door Alarms And TheirDelayTimesAsWellAsSensorTemperatureValues
MED XW70L Pr1 user level parameters for temperature and door alarms and theirdelaytimesaswellassensortemperaturevalues Press simultaneously A text “ALC” will appear on the screen. To change the parameter ALC, ALU, ALL, ALd or did search with the arrow buttons and press at the desired parameter. -
Page 12: ControlUnitMedSaveXw757K
MED SAVE XW757K ControlunitMEDSAVEXW757K SIngle- and double door refrigerators, single door freezer cabinets Double door combination cabinets Lower part chiller Upper part chiller or freezer USB connector for copying data stored in the controller LED light switch (standard in GD models) -
Page 13: FunctionDisplayLights
MED SAVE XW757K Functiondisplaylights Light on Compressor is running Light flashing Time delay to protect compressor after start-up Light on The evaporator fan is on Light flashing Fans delay after defrost in progress Light on Defrost is on Light flashing... -
Page 14: Use Of Temperature Control
MED SAVE XW757K Use of temperature control 1. Switch on the cabinet • Switch the power on by pressing the key 3 seconds. 2. Adjust temperature • Checking temperature settings: Press the button shortly, and the temperature setting displays on the screen. -
Page 15: SetTheClockTime
MED SAVE XW757K • Press button once. ”Lot” will appear on the display for a moment followed by the minimum temperature logged. • wait for 5 seconds and the display will revert to the normal state. 6. Reset the the minimum and maximum temperatures recorded •... -
Page 16: StorageOfTemperatureAndAlarmData
MED SAVE XW757K Storageoftemperatureandalarmdata Press the button for 3 seconds. Use the arrow keys to select parameter “YES” and confirm the function with the button , so the recording starts and the indicator light is displayed . The device stores the information in its memory. -
Page 17: Alarms
MED SAVE XW757K When the temperature data is erased from the memory, “rSA” i.e., the stored alarms is displayed. Press the button and use the arrow button to select ”YES”. Confirm the selection with , whereby the alarm information is erased from the memory. -
Page 18: Pr1 User Level Parameters For Temperature And Door Alarms And TheirDelayTimesAsWellAsSensorTemperatureValues
MED SAVE XW757K Pr1 user level parameters for temperature and door alarms and theirdelaytimesaswellassensortemperaturevalues 1. Pr1 user level parameters for temperature and door alarms Press simultaneously buttons for about 3 seconds whereby text “Pr1” will be displayed. Press the button... - Page 19 MED SAVE XW757K 2. P1 probe Alarms AlCalarmmode(rELorAbS) rEL (selected as factory default): • the temperature alarm limit changes when the temperature changes. For example, with the setting Set = 4 and AlU = 4 and AlL = 2, alarms come at + 8C and + 2 °...
-
Page 20: P4ControlSensor
Check that the sensor is in the middle of the liquid so it does not catch the edges of the bottle. Batterybackup(standardonBBmodels,optionalonMED models) Connect the cabinet to the mains and turn the key (A) 90° to the right, whereby the battery backup is switched on. -
Page 21: Cleaning
Cleaning Clean spillages immediately. Ensure effective operation of the equipment and the quality of the products being stored, by defrosting and cleaning the equipment regularly, we recommend at least once per month. Remove all products and store them in a back-up store. Note! Switchoffthecabinetfromthemainelectricalsupplybyremovingcableandplugfromthe wallsocket. -
Page 22: NoisesGeneratedByTheCabinet'sRefrigerationSystem
MEDLAB 400 cabinets has been equipped with a filter system for air pollutants. Lift up the lower panel on both edges and pull it out. Remove the filter behind the bottom cover plate and wash the filter with running water and e.g. dishwasher detergent. -
Page 23: OperationFailures
Operationfailures In case of alarm: • see chapter ”Alarms” If the cabinet fails to cool check that: • door is closed. If the door has been slightly open for a long time evaporator can be frozen. Start the manual defrost. Repeat the manual defrost after cabinet has been reached the set temperature. -
Page 24: Guarantee
The guarantee does not cover: • incidental scratches/marks or other minor faults caused when unpacking or during installation that does not effect operation or performance of the equipment Festivo Service Puh. (03) 553 8681 service@festivo.fi Note! The manufacturer or his selling agent is not at any time, or under any circumstances liable for food loss howsoever it occurs. -
Page 25: ChangeOfTheDoor'sHandedness,1-DoorModels80,120,200
Changeofthedoor’shandedness,1-doormodels80,120,200 Remove the cover plugs (A) and unscrew the screws (B) • Lift up the cover and remove it from the cabinet. Remove the hinges and the door • Remove the hex bolts and the hinge plate (C). • Turn the top edge of the door slightly outward and lift the door off from the bottom hinge pin. -
Page 26: ChangingTheHandednessOfDoor,OneDoorModels320And400
• Remove the bottom cover plate (D) by pulling it strongly outward from both ends. • Remove the hex bolts and the hinge plate (E). Install the hinges and the door back • Attach the top hinge (C) as the bottom hinge on the other side, turn the door upside down and place it on the bottom hinge. - Page 27 Remove the door according to the previous instructions. Turn the door 180 degrees upside down and install it again following the instructions. Install the handle back • Move the plastic bushing inside the upper hole into the lower hole. • Install the opening pusher ordered from the maintenance and the handle back into their places.
-
Page 28: ChangeOfTheDoor'sHandedness,2-DoorModels160/160And400
Changeofthedoor’shandedness,2-doormodels160/160and400 Note! MEDLABCGD/F400model,pleasecontactservice. Upper door become the lower door and vice versa by turning the doors 180°. 1. Remove upper door and lock panel in the middle • Remove the upper door hinge and door by following the previous instructions. •... - Page 29 3. Move the center hinge • Remove and turn the center hinge part 180° and mount it on the opposite side. Re-install the lock pane 4. Re-install the hinge parts and doors • Place the upper edge of the lower door in hinge part. Support the lower edge of the door and mount the lower hinge part.
-
Page 30: Din58345AccessoryPackageForMedSaveControlUnit
There is a potential-free connection point (A) at the back of the cabinet for alarms. DIN 58345 equipment package includes a battery backup for MED SAVE controller power failure and temperature registering during 12 hours, lockable battery back-up user switch (B), and antifreeze function. - Page 31 RJ45connectioncable Alarmswitchfactorysetting: 4/blue 5/blue-white Also a separate sensor for continuous temperature control can be connected to RJ45 cable, which can then be monitored through the property control centre (VAK). We recommend a customer sensor installation at the factory. Connect RJ45 cable (D) to connector A (connector A, see picture on previous page).
- Page 32 Festivo appliances are manufactured in Hollola, Finland, where our research & development, factory, administration and service are also situated. Festivo is a genuine Finnish product. The Festivo label on the front panel of your cooling appliance is guarantee of high Finnish quality, evolving from long experience, strong materials, and construction, proven over decades.
