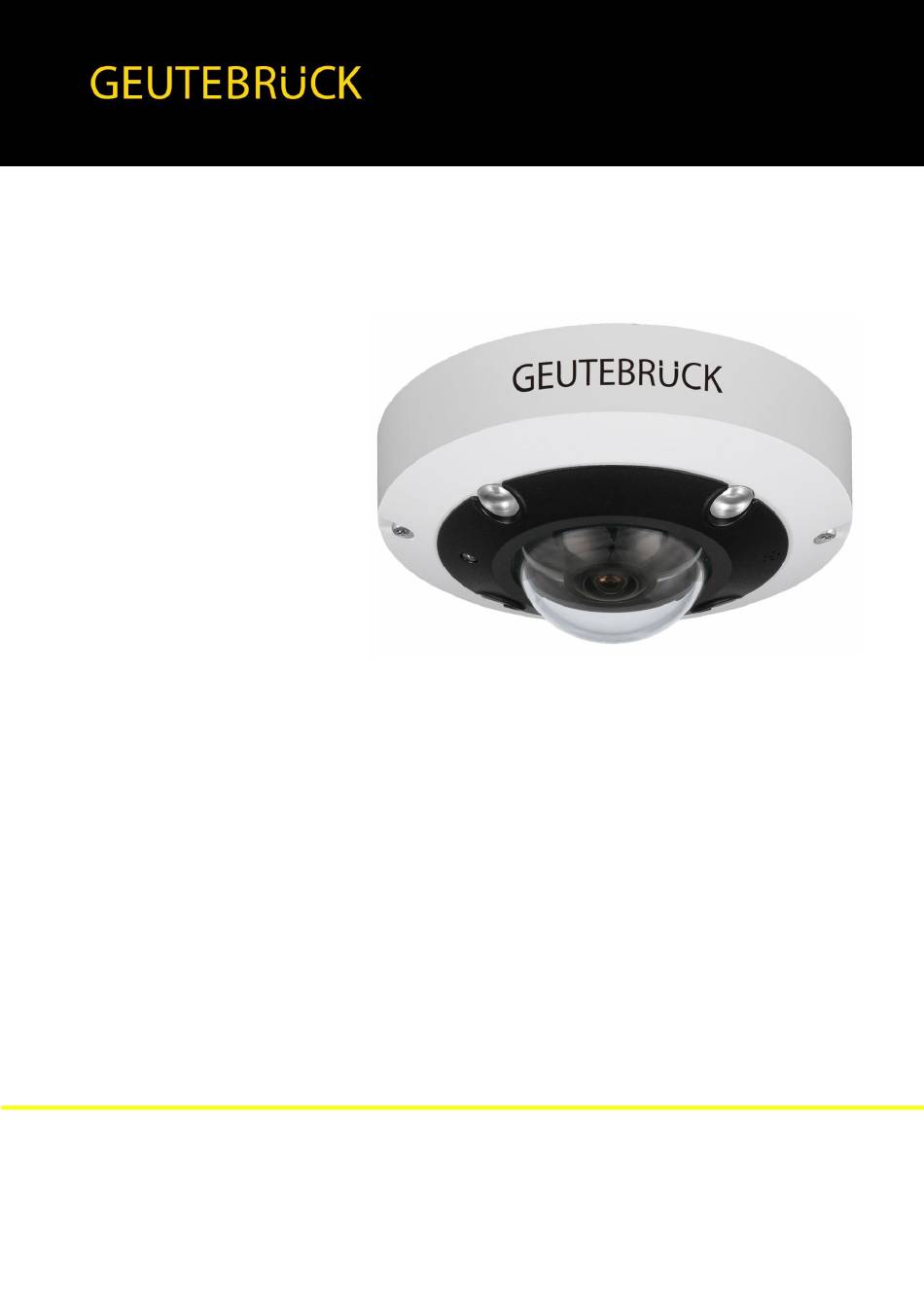

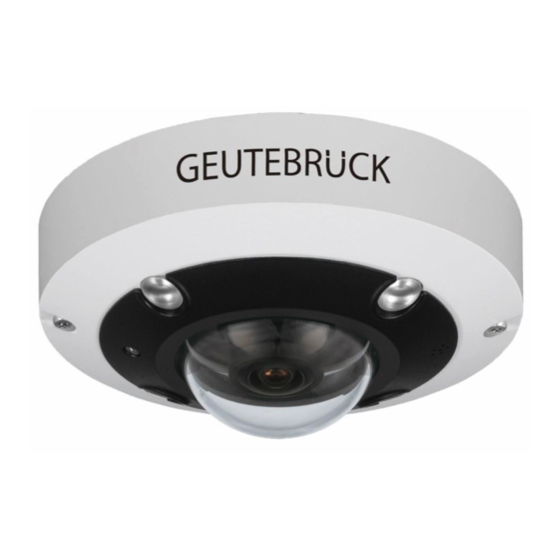

- Page 1 G-Cam/EHC-4781/4888 Panorama 360° IP-Kamera Installation / EN...
-
Page 2: Preface
Preface The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Copyright Under copyright laws, the contents of this user manual may not be copied, photocopied, translated, reproduced or reduced to any electronic medium or machine-readable format, in whole or in part, without prior written permission of the company. -
Page 3: Regulation
Regulation This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002 / 96 / EC. -
Page 4: Warnings And Cautions
Warnings and Cautions Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. Installing electricity wiring carefully ⚫ Ask qualified personnel of electrical wiring for the installation. The camera is capable of surge protection;... -
Page 5: Table Of Contents
Table of Contents Preface ..............................2 Regulation............................3 Warnings and Cautions ........................4 Overview ............................6 1.1. Features ..........................6 1.2. Package Contents ......................... 7 1.3. Connectors (Indoor only) ....................... 8 1.4. Function Cables ( Outdoor only) .................... 9 Camera Cabling .......................... 10 2.1. -
Page 6: Overview
1. Overview The DNN Network Fisheye IP Camera is a high performance surveillance solution features 360° wide coverage without blind spots. The fisheye camera supports up to 12 Megapixels resolution streaming and maintains at 20fps that allows the video stream can be viewed smoothly. Moreover, the fisheye camera supports various view mode (digital PTZ, panoramic view, etc.) which allows users to choose based on their own preference. -
Page 7: Package Contents
1.2. Package Contents Please check the package containing the following items listed below. DNN IR Fisheye Self-Tapping Screw (x3) IP Camera Plastic Anchor (x3) Security Torx Quick Guide NOTE: The supplied self-tapping screws are for soft substances / materials such as wood. For other installation environments such as cement wall, users MUST pre-drill and use plastic anchors before fastening the supplied self-tapping screws on the wall. -
Page 8: Connectors (Indoor Only)
1.3. Connectors (Indoor only) Please loosen the security screws and open the cover to reach the connectors. The diagram below shows the connectors of the camera. Definition for each connector is given as follows. Connector Definition Remarks RJ-45 For network and PoE connections DC 12V –... -
Page 9: Function Cables ( Outdoor Only)
NOTE: To avoid audio quality degradation, do NOT connect built-in microphone and external audio-input device (via Line-in) at the same time. So does the audio-output connection. NOTE: It is not recommended to record with the microSD card for 24/7 continuously, as it may not be able to support long term continuous data read/write. -
Page 10: Camera Cabling
2. Camera Cabling Please follow the instructions below to complete the cable connections. NOTE: This camera must be installed by qualified personnel and the installation should conform to all local codes. 2.1. Power Connection For power connection, please refer to section Connectors for the Indoor models, and see section All in One Cable for the Outdoor models. -
Page 11: Camera Installation
2.4. Camera Installation The following description demonstrates how to directly install the camera to the ceiling or to the wall. Step 1: Loosen the two security screws on the camera with the supplied security torx and open the dome cover. Step 2: Place the camera at the installation location. -
Page 12: System Requirements
Step 4: Drill a hole slightly smaller than the supplied plastic screw anchor on each marked screw hole. Then insert the plastic screw anchors into the drilled holes. Step 5: Thread the cables through the cable entry hole. Match the two screw holes on the camera with the plastic screw anchors at the installation location. -
Page 13: Access Camera
4. Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe. Accessing the Camera by Device Search Software ▪ Step 1: Double click on the program Device Search.exe. ▪ Step 2: After its window appears, click on the <Device Search>... - Page 14 Installing DCViewer Software Online For initial access to the camera, a client program, DCViewer, will be automatically installed to the PC when connecting to the camera. If the web browser doesn’t allow DCViewer installation, please check the Internet security settings or ActiveX controls and plug-ins settings (refer to section Setup Internet Security) to continue the process.
- Page 15 Ceiling Mount Installed Camera NOTE: For more details about the function buttons on the Home page, please refer to the Webbrowser Menu.
- Page 16 Wall Mount Installed Camera NOTE: For more details about the function buttons on the Home page, please refer to the Webbrowser Menu.
-
Page 17: Setup Video Resolution
5. Setup Video Resolution Users can setup video resolution on Video Configuration page of the user-friendly browser-based configuration interface. Video Configuration can be found under this path: Streaming> Video Configuration. The default video resolution of 6M and 12M models are shown as below. The default resolution varies with different Fisheye Dewarping types, Front End Camera Dewarping and Back End Software Dewarping. -
Page 18: Configuration Files Export / Import
6. Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> File Import/Export. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 19: Setup Internet Security
▪ Step 2: Click on the <Delete> button under <Browsing History> section. In the appeared window, tick the box beside the <Temporary Internet files>. ▪ Step 3: Click on <Delete> to start deleting the files. 7.2. Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. - Page 20 ▪ Step 4: Click on <OK> to accept the settings. A prompt window will appear for confirming the setting changes, click <Yes(Y)> to close the Security Setting window. ▪ Step 5: Click on <OK> to close the Internet Options screen. ▪...
- Page 25 Technical alterations reserved. GEUTEBRÜCK GmbH Im Nassen 7-9 | D-53578 Windhagen Tel. +49 (0)2645 137-0 | Fax-999 www.geutebrueck.com info@geutebrueck.com...
