REQUIREMENTS
Ready to Use Chemical Solution
Solution Pressure
Flow Rate
Compressed Air
Liquid tubing - pump to tee
Liquid tubing - tee to foam sticks
Tubing from air supply
OPTIONS
Air and Chemical Tubing (Order in 10' Increments)
Air, Polyflow, 1/4" x 1'
Solution, Pump to Tee, Polyflow, 1/2" x
1'
Solution, Tee to Foamer, Polyflow, 3/8"
x 1'
Alternate Check Valve (Viton Standard)
TL Check Valve, PVC / EPDM, 3/8"
WEIGHT & DIMENSIONS
Single Package
Shipping Weight
Shipping Dimensions
Additional Package
Shipping Weight
Shipping Dimensions
OVERVIEW

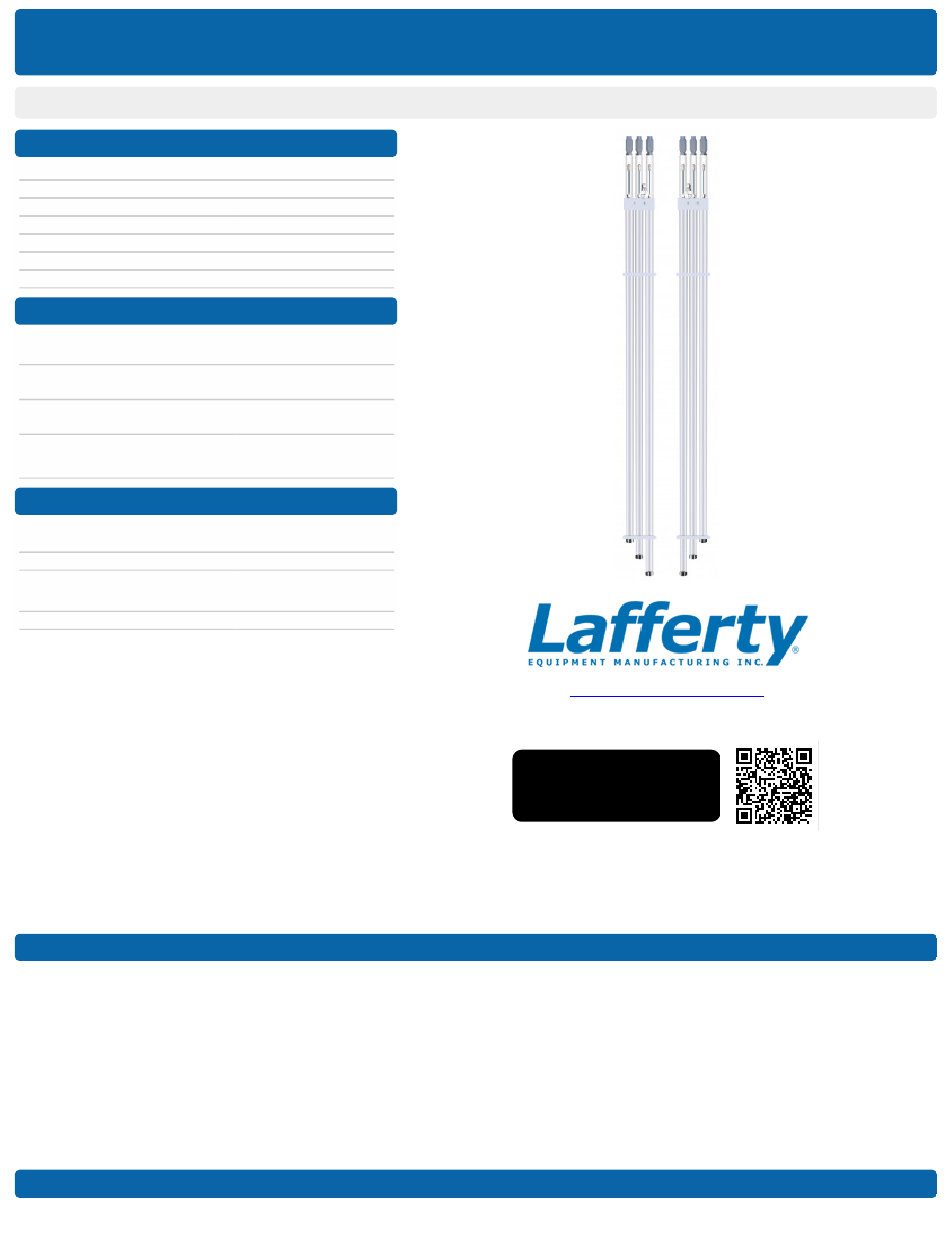

The Triple Foam Stick Set is a foam applicator designed for car-wash pre-soak, brush lubrication or to apply any 3 foaming products. This unit receives 3 ready-to-use
chemicals from a pumping system and injects compressed air to increase the solution volume and create thick, rich, clinging foam. The foam is then evenly projected
through the 7 foot foam stick assemblies. A fixed flow rate allows the user to use just one air valve to adjust the foam quality for all 3 foam sticks simultaneously. This
system is great for retrofitting and for new installations.
Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road • North Little Rock, Arkansas 72118
Lafferty Equipment Manufacturing, Inc.
Installation & Operation Instructions
Model # 910310 · Triple Foam Stick Set
40 - 60 PSI
up to 1.55 GPM
up to 1.5 CFM
1/2" I.D.
3/8" I.D.
1/4" I.D.
# 475200FT
# 475400FT
# 475300FT
# 491456-E
19 lbs.
91" x 8" x 5"
19 lbs.
91" x 8" x 5"
www.laffertyequipment.com
501-851-2820
W A R N I N G ! R E A D A L L
I N S T R U C T I O N S B E F O R E
U S I N G E Q U I P M E N T !
