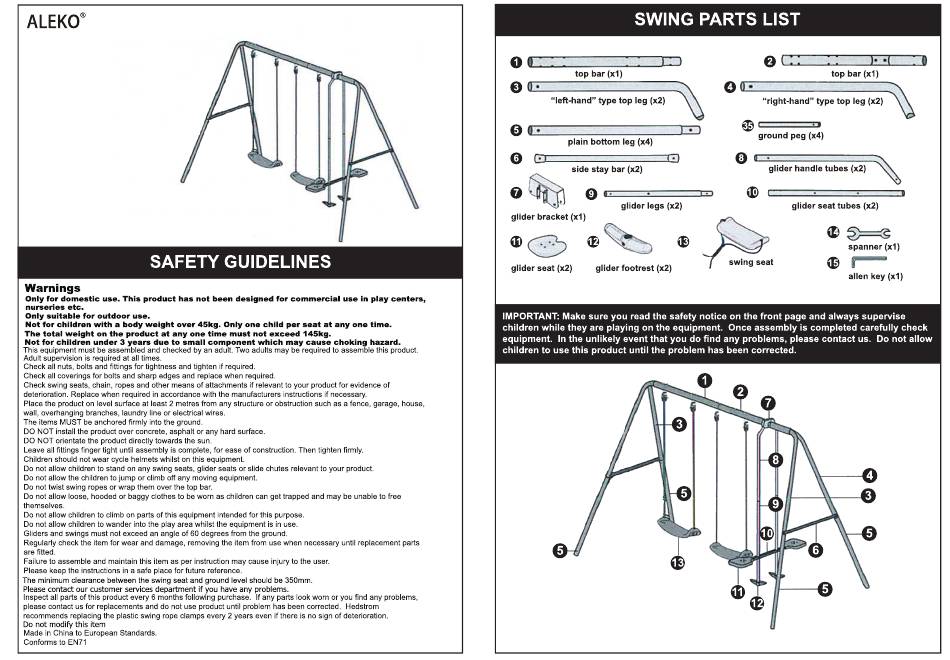

- Page 1 Double Swing and Glider Playset- BSW05 FOR CHILDREN AGED 3 TO 10 YEARS...
- Page 2 Step 4. Completely disassemble S1 U-Bolts then place u-shaped bolt through the hole in the bearing assembly found at the end of the Swing Seat ropes. Step 5. Tighten open-ended S1 nut down onto u-shaped bolt, place 1 S1 washer on each end of the bolt and insert into Top Bar through 2 sets of vertical holes on Swing side.
- Page 3 Step 7. Insert 1 Plain Bottom Leg into both Left and Right-Hand Top Legs, and place an F2 bolt through the leg junction (Fig. 4). Step 8. Attach flat side of Side Stay Bar to the protruding thread side of the F2 bolt, and apply washer and round-ended cap nut to secure Leg and Side bar assembly.
- Page 4 Step 6. Insert 1 G9 Plastic Spacer into either side of the holes near the center of the Glider Legs (Fig. 8). M6 BOLT 60mm (x4) Step 7. Attach the Glider Seat Tubes to either side of the Glider Legs by placing a G4 fastener through the same holes that the G9 Spacers have been installed in.
