Summary of Contents for Osram ENCELIUM EDGE

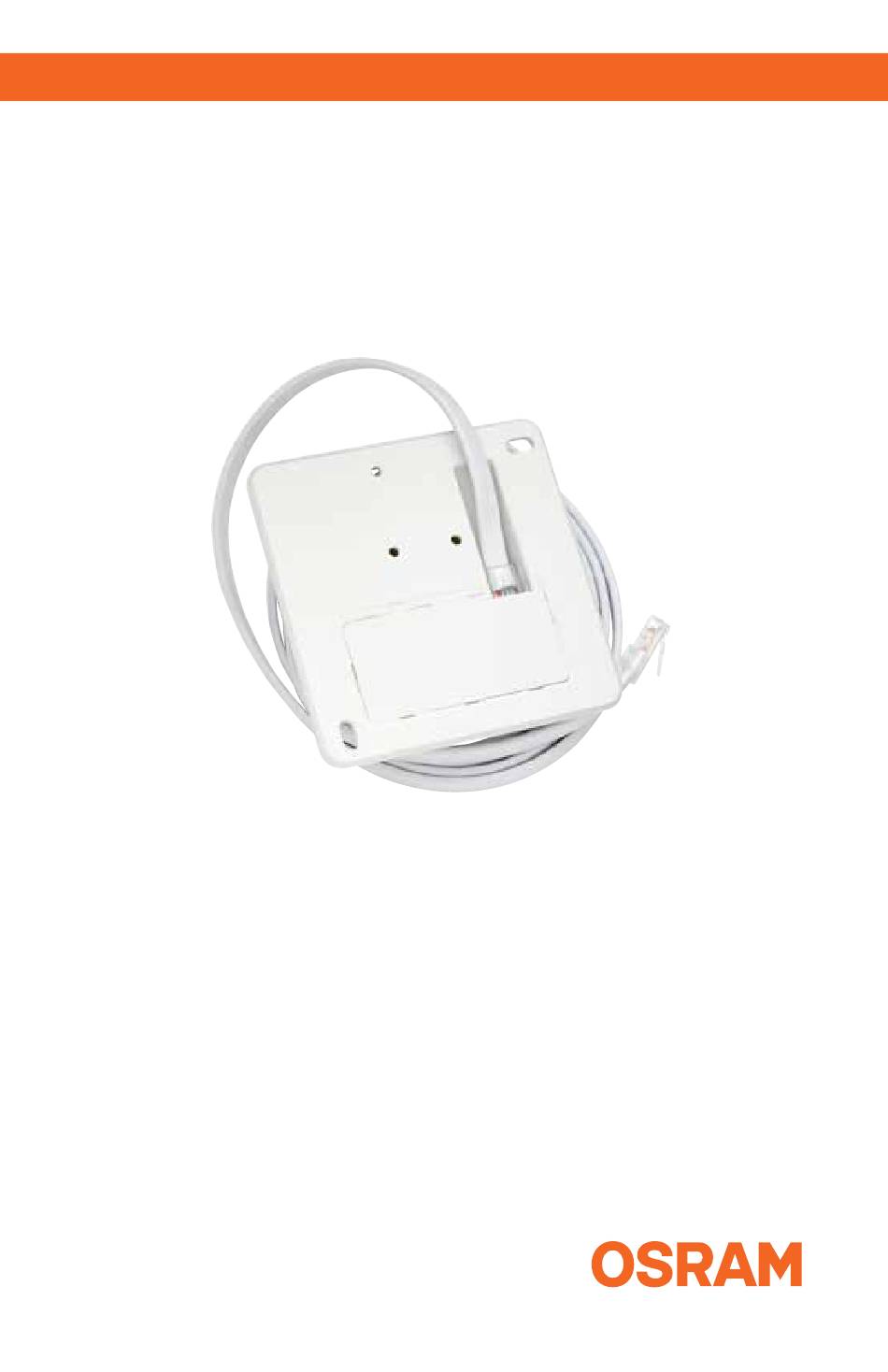

- Page 1 ENCELIUM EDGE Controller ™ Power Supply Unit Wiring and installation guide Light is OSRAM...
- Page 2 , typical 45 V — Output Current (typical): < 60 mA — Output Power: 3W max. Shown below are the ENCELIUM EDGE Power Supply Unit’s top and bottom views: PoE Cable to/from AC Line Input ENCELIUM EDGE Controller Top View...
- Page 3 Supply Unit ENCELIUM EDGE Controller Power Supply Unit - Junction Box connection details PoE Cable Installation Attach PoE cable to the ENCELIUM EDGE Controller Power Supply Unit. PoE Cable to/from ENCELIUM EDGE Controller AC Line Input to ENCELIUM EDGE Controller Power Supply...
- Page 4 Troubleshooting There are no user-serviceable parts inside the ENCELIUM EDGE Controller Power Supply Unit. Please return the device to OSRAM if service is required. Regulatory Approvals This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules.
