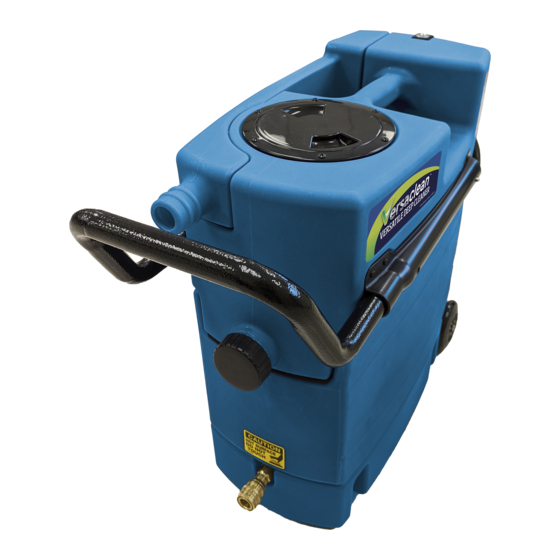

Versaclean VERSATILE Quick Start Manual

A. Recovery tank cover
B. Solution tank twist latch
C. Control panel
(see OPERATION below)
D. Vacuum hose attachment
E. Handle extension release/lock pin
F. Recovery tank drain
G. Solution hose quick-connect
H. Cord wrap

BEFORE CLEANING

1
Press release button to extend the handle for transport.
DO NOT add more than 2 gallons.
For plain water cleaning,
3
add water to solution tank.
6
Connect vacuum and solution hoses.

OPERATION

1. Turn on the Blower
Pressure Pump/Heater.
Vacuum/blower Heater: DO NOT run
heater when solution
tank is empty.
2. Begin cleaning.
Before starting, wait a minute or two
for the heated solution to reach the
hand tool.

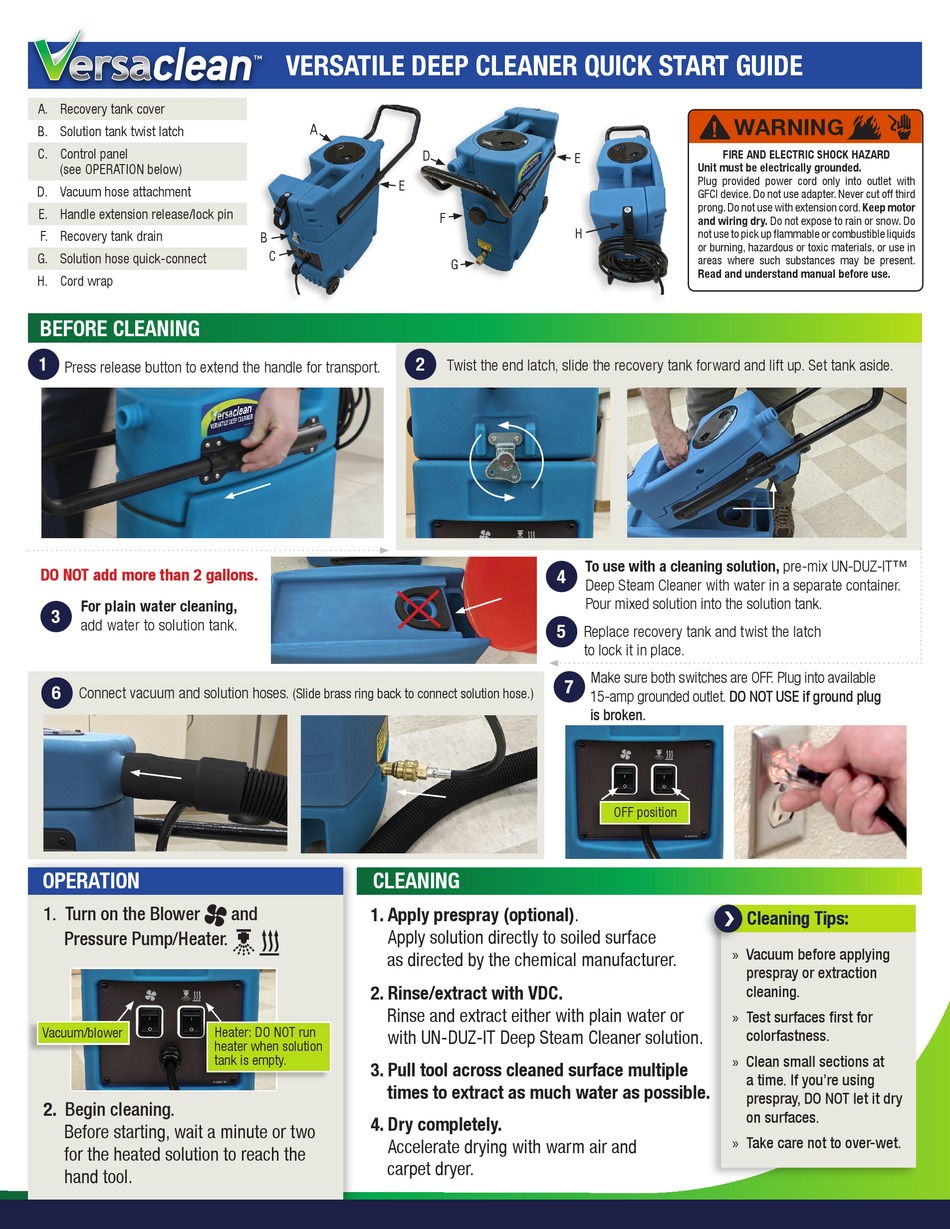

VERSATILE DEEP CLEANER QUICK START GUIDE
A
E
B
C
(Slide brass ring back to connect solution hose.)

CLEANING

and
1. Apply prespray (optional).
Apply solution directly to soiled surface
as directed by the chemical manufacturer.
2. Rinse/extract with VDC.
Rinse and extract either with plain water or
with UN-DUZ-IT Deep Steam Cleaner solution.
3. Pull tool across cleaned surface multiple
times to extract as much water as possible.
4. Dry completely.
Accelerate drying with warm air and
carpet dryer.
D
E
F
H
G
2
Twist the end latch, slide the recovery tank forward and lift up. Set tank aside.
To use with a cleaning solution, pre-mix UN-DUZ-IT™
4
Deep Steam Cleaner with water in a separate container.
Pour mixed solution into the solution tank.
5
Replace recovery tank and twist the latch
to lock it in place.
Make sure both switches are OFF. Plug into available
7
15-amp grounded outlet. DO NOT USE if ground plug
is broken.
WARNING
FIRE AND ELECTRIC SHOCK HAZARD
Unit must be electrically grounded.
Plug provided power cord only into outlet with
GFCI device. Do not use adapter. Never cut off third
prong. Do not use with extension cord. Keep motor
and wiring dry. Do not expose to rain or snow. Do
not use to pick up flammable or combustible liquids
or burning, hazardous or toxic materials, or use in
areas where such substances may be present.
Read and understand manual before use.
OFF position
Cleaning Tips:
❯
» Vacuum before applying
prespray or extraction
cleaning.
» Test surfaces first for
colorfastness.
» Clean small sections at
a time. If you're using
prespray, DO NOT let it dry
on surfaces.
» Take care not to over-wet.
