Summary of Contents for Cognex DataMan 7500 Series

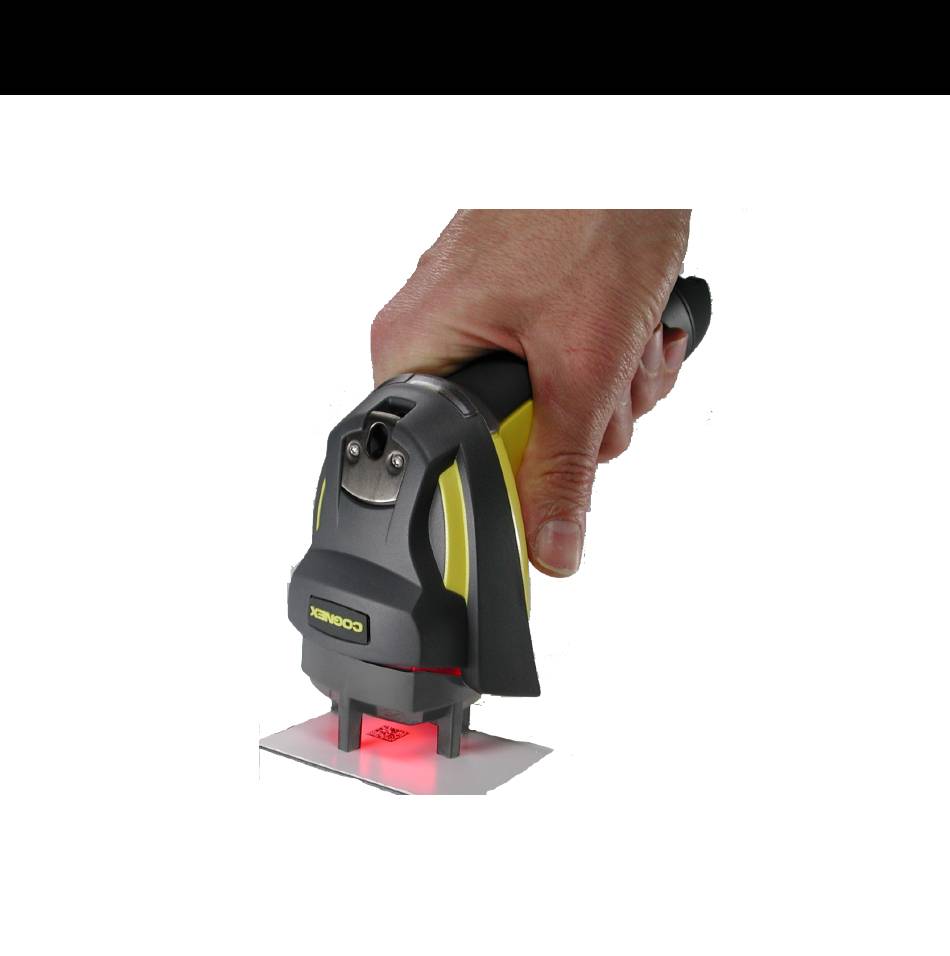

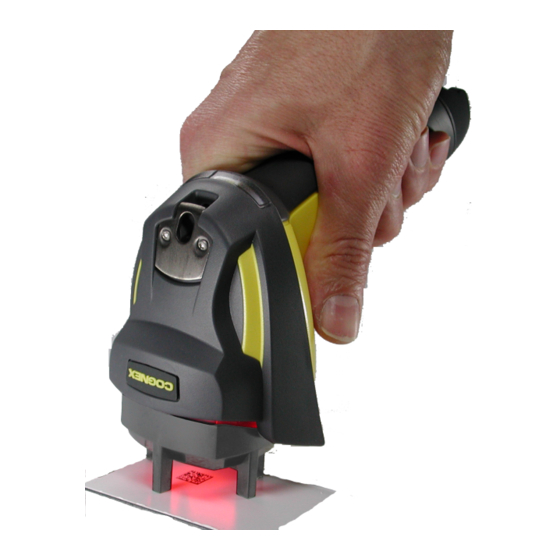

- Page 1 COGNEX DataMan™ 7500 Series Handheld Verifier Quick Reference...
- Page 2 Lot Number 20061102 If you are upgrading an existing DataMan 7500 series reader to use as a verifier, your reader must be using firmware version 2.1.1 at a mini- mum. To update the firmware: Connect your reader to the DataMan Setup Tool.
- Page 3 Getting Started: Stand-off Installation Start the DataMan Setup Tool and connect to your reader. Attach the stand-off to your DataMan 7500 Series reader. Select the Code Quality Settings task pane. Place the verifier against the calibration card with the symbol centered below the reader, and squeeze the trigger.
- Page 4 Code Quality Results Code Quality Verification The Results Display task pane presents the results of the verifica- In order to perform Direct Part Mark Verification your reader must be tion on the right-hand side. calibrated as described in the previous section. To read symbols and view verification results, perform the following steps: Start the DataMan Setup Tool and connect to your reader.
- Page 5 Code Quality: Logging Data Code Quality: Formatting Output Data Use the Data Formatting task pane of the DataMan Setup Tool to construct Use the Data Logging task pane to generate a Code Quality Report for a customized output string each time you read and verify a symbol. This each symbol that you read and verify.
- Page 6 Verification Configuration: Saving the Setup Code Quality Configuration Codes Code Quality Configuration Codes (v2.1) Use the following Code Quality configuration symbols to quickly turn Once you have configured your reader with the settings you want it to use, Code Quality on and off without connecting the reader to the DataMan choose System->Save Settings to save the configuration.
- Page 7 COGNEX Copyright © 2007 Cognex Corporation All Rights Reserved. This document may not be copied in whole or in part, nor transferred to any other media or language, without the written permission of Cognex Corporation. The hardware and portions of the software described in this document may be covered by one or more of the U.S.
