Summary of Contents for LEDLux Centralina TC423

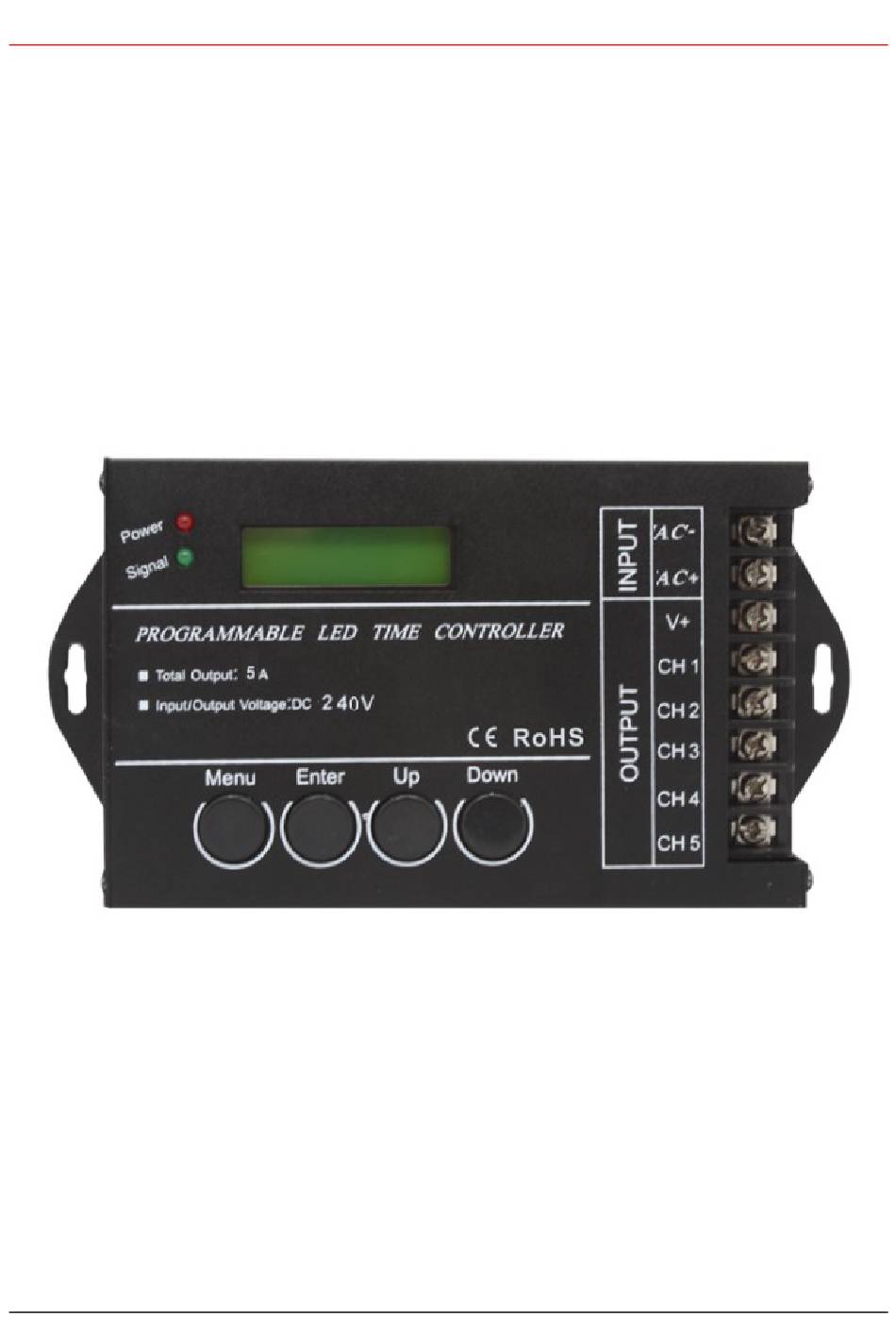

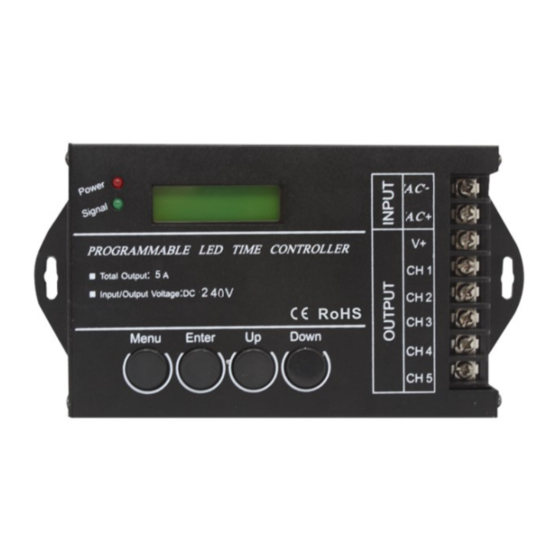

- Page 1 TC423 Programmable Time Led Controller Instruction manual Programmable Time Led Controller Instruction Manual Page 1 of 8...
- Page 2 Contents 1.Product constitute………………………………………………………………………………………………2 2.Work statements instruction……………………………………………………………………………………2 3.Technical parameters……………………………………………………………………………………………2 4.Product description………………………………………………………………………………………………2 5.Interface instruction………………………………………………………………………………………………3 6.Function instructions……………………………………………………………………………………………4 7.Typical application………………………………………………………………………………………………7 8.Warning……………………………………………………………………………………………………………7 Programmable Time Led Controller Instruction Manual Page 2 of 8...
- Page 3 1.Product constitute 1.Time programmable controller It is the core of product, after setting, can operate without PC; 2. USB line Using when connected with computer. Contains the install software of computer, software operation 3. Disk instruction and product manuals; Include product operation of the details, but does not contain 4.
- Page 4 will come into blank as long as you execute delete .This controller can control load of led changing effect no more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.
- Page 5 there are four buttons such as "Menu", "Enter", "+", "-" in it. 6.1Power saving mode When the controller in the situation of setup mode without any key press in 30 seconds , the screen background light will be closed, and if within 30 seconds there is still no any key press, the controller will go into the energy saving mode .
- Page 6 【 M o d e 】 M o d e 1 1 Figure 4 ④ Select "2. Setup" in the main menu and press "Enter" button to go into the Setting menu ; The first line of the screen shows the location of "【Setup】" in the setting menu status . The second line of the display shows "1.
- Page 7 value . Press the "Menu" button to save and return to the setting menu . Setting mode displays as shown in figure 7: 【 D a t e 】 1 3 - 0 1 - 0 1 Figure 7 III． In the status of setting menu , choose " 3 .Sound " and press "Enter" button, it will enter into sound setting mode ;...
- Page 8 8.Warning 1.Power supply voltage of this product is from AC90V to 230 V 2.When it is downloading mode , you should firstly power on the controller , and then connect usb line to the controller and computer ; 3.The power cord shall not be mutual attached in order to avoid short circuit . 4.Warranty of this product is one year, in this period we guarantee replacement or repairing with no charge, but exclude the situation of artificial damaged or overload working.
