Summary of Contents for Kathrein FTR 100
- Page 1 FTR 100 2220000012 Tag Reader User Manual...
- Page 2 In addition, KATHREIN Digital Systems GmbH reserves the right to change the product and the manual without prior notice. We do not assume any guarantee with regard to the content of this document.
- Page 3 TO MINIMISE THE RISK OF ELECTRIC SHOCK, YOU MUST NOT EXPOSE THIS PRODUCT TO WET AND MOIST CONDITIONS AT ANY TIME. All KATHREIN Digital Systems GmbH products are lead-free and meet the requirements stated under the European Directive on the Restriction of Hazardous Substances (RoHS).
-
Page 4: Important Safety Information
The warranty claim will expire in such cases! The tag reader FTR 100 is equipped with a high-quality housing. However, please observe the following safety instructions: • Operate the tag reader only with the provided batteries. - Page 5 Malfunctions and Defects If you notice any kind of defect, remove the batteries from the tag reader FTR 100 and contact your retailer or KATHREIN Digital Systems GmbH directly. Any further usage of the tag reader may lead to fire or electric shock!

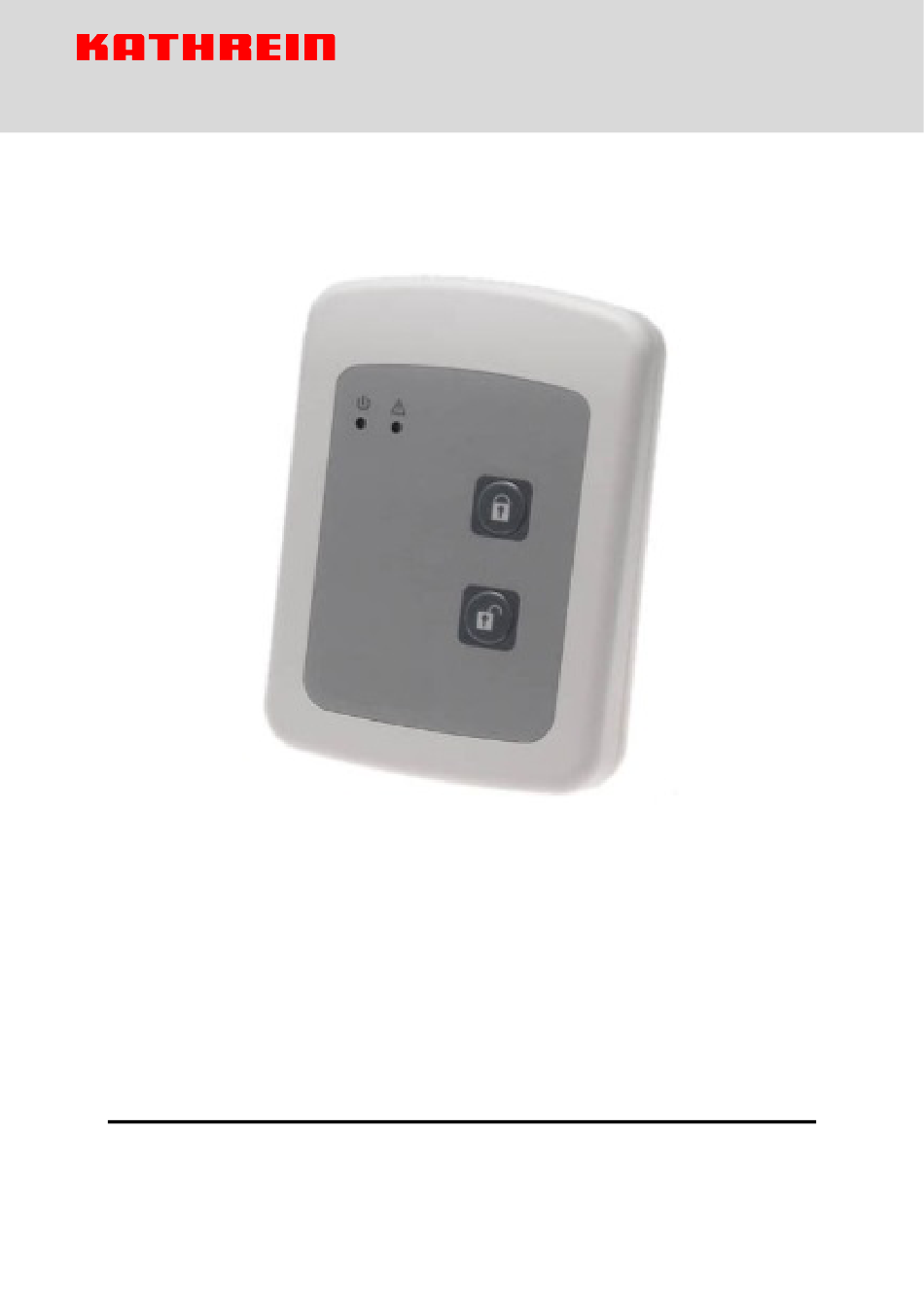

- Page 6 Tag reader FTR 100 Product description: 1. Power LED (green) 2. Status LED (red) 3. Arm button 4. Disarm button 5. Batteries 6. Function switches 7. Tamper contact 8. Tag (watertight) LED indicators: In stand-by mode, both LEDs are off.
- Page 7 6. Insert the batteries. The power LED lights up for a few seconds and a signal sounds. Connecting the tag reader FTR 100 and putting it into operation 1. Open the menu “Sensors” “Add” and press “Start” in the web interface of the alarm panel.
- Page 8 Add a tag to the tag reader: 1. Start the installation mode by pressing the Arm or Disarm button and then promptly setting switch 1 (SW1) to ON. The status LED starts flashing and one long signal is followed by two short signal sounds. 2.
- Page 9 Restoring the factory default: 1. Open the housing. Remove the batteries, and then press any button to discharge any residual voltage. 2. Set switch 2 to ON, reinsert the batteries. The tag reader signals the reset (including the deletion of the added tags) with an audio signal followed by two more signals.
-
