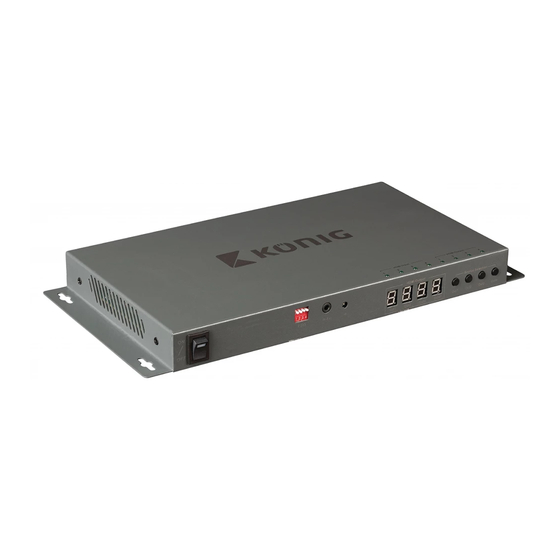

KNVMA3444
4-to-4 port HDMI™ matrix
4x HDMI™ input - 4x HDMI™ output
IP & RS232 instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNVMA3444 and is the answer not in the manual?

Questions and answers

Summary of Contents for König KNVMA3444

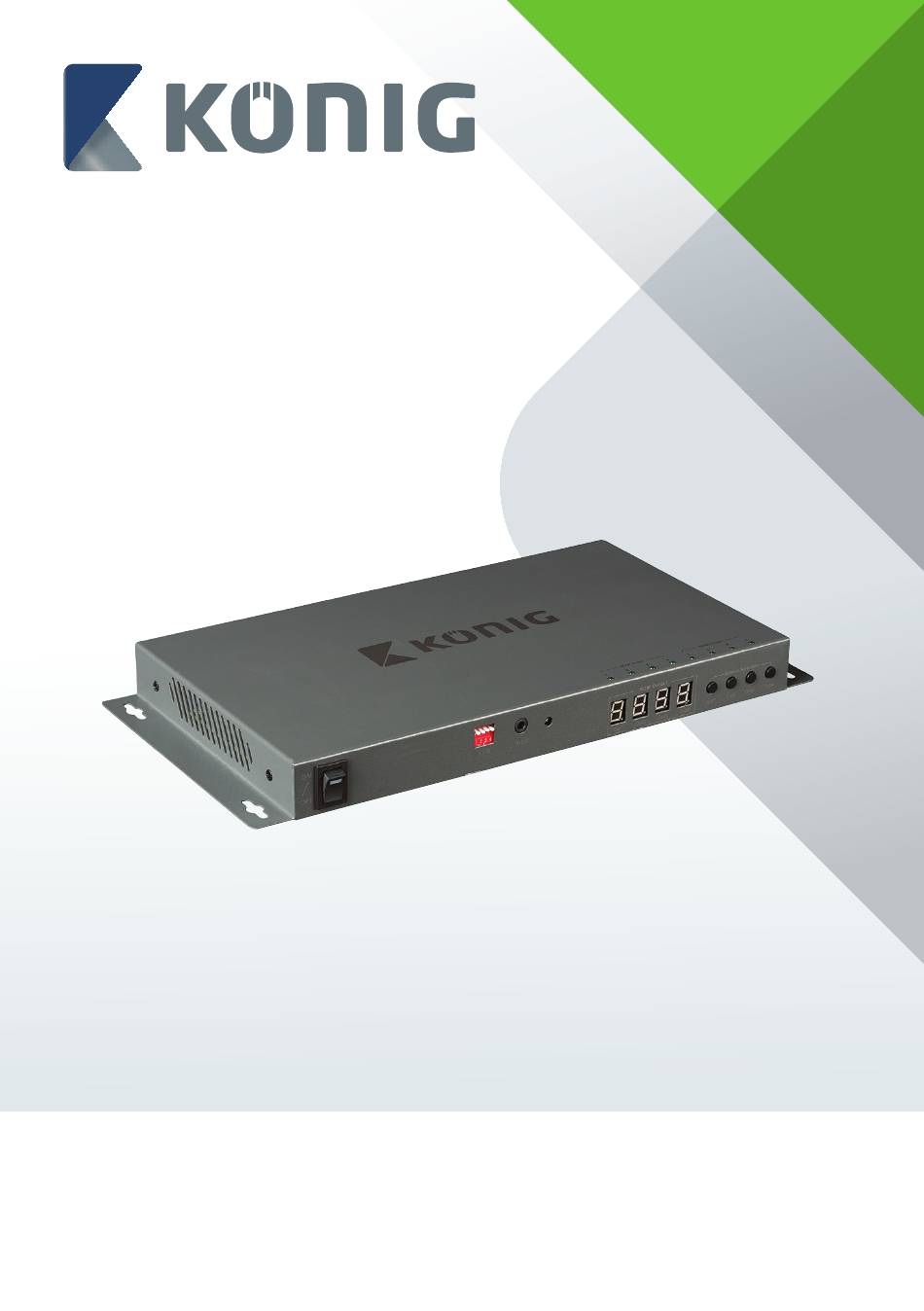

  • Page 1 Video KNVMA3444 4-to-4 port HDMI™ matrix 4x HDMI™ input - 4x HDMI™ output IP & RS232 instruction...
  • Page 3 KNVMA3444 4 - to - 4 port matrix IP control: 1) First install the file: AXR2E_Configuration_Utility_Setup_32bit_v10200.exe 2) Connect the compute to the matrix’s LAN interface with a CAT5e/6 cable, then turn on the matrix. 3) Open AXR2E configurator 4) DHCP should be opened if matrix connects directly to the computer.
  • Page 4 6) If the matrix is connected by router repeater device, such as router which open the DHCP, please ignore Step 3 and Step 4. 7) Switch to Device Management, press the Search button to find the device. 8) It will be shown in the list if the device has been found. 9) After device selected, pressing the Web Browser button to start build-in browser.
  • Page 5 Switch: channel change EDID: EDID settings...
  • Page 6 Basic Settings: Network settings Security: Change Username/Password settings...
  • Page 7 KNVMA3434 4 - to - 4 port Matrix RS232 control: Operate matrix by RS232 port and switch to Com Port Terminal. After serial parameter set, click Open Port. RS232 instruction (help: inquiry all instructions description) 1) Enter Username and Password (Username: admin) (Password: admin) 2) Channel switching instruction: swo-x-y-end, x stands for output, starting from 0.
