JEVEN UV-CONTROL G1

Installation Guide

Dokument Nr 500-00039

Revision B

Table of Contents

Need help?

Do you have a question about the UV TURBO UV-CONTROL G1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jeven UV TURBO UV-CONTROL G1

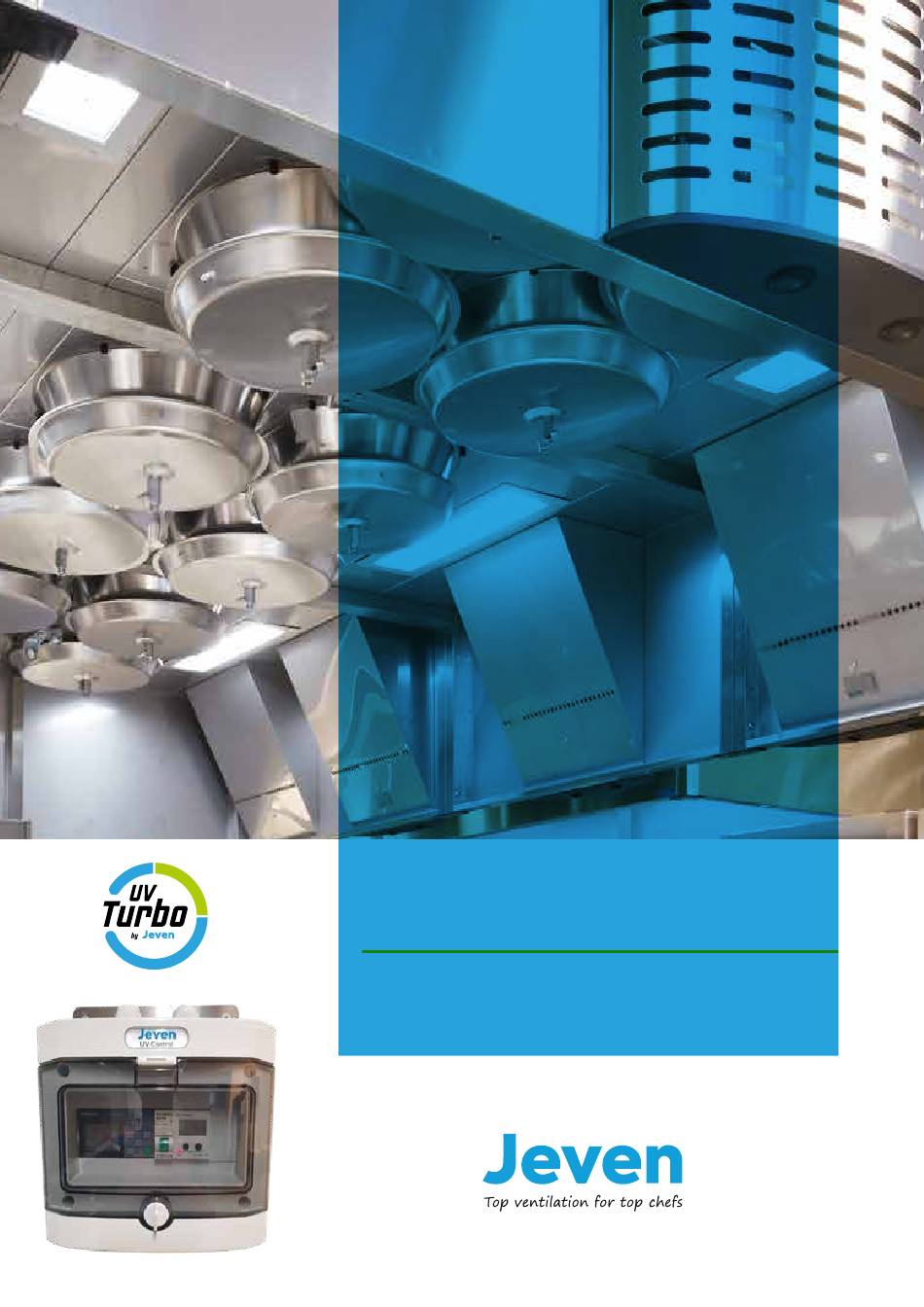

Page 1 JEVEN UV-CONTROL G1 Installation Guide Dokument Nr 500-00039 Revision B...
Page 2: Table Of Contents
SOFTWARE FEATURES ............3 TECHNICAL DATA .............3 DELIVERY CHECK .............4 ELECTRICAL INSTRUCTION ..........5 WIRING ..................6 SETTINGS AND OPERATIONS ....... 7-21 MODBUS INSTALLATION ..........22 MODBUS COMMUNICATION ........23 MODBUS CHANGE IP ADRESS ......24-26 JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 3: Product Description
When the maximum operating time is reached, there is a possibility to reset the time, if replace of an individual UV-lamp before the maximum operating time has been reached, should not the time be reset. Sum alarm from from Jeven UV-Control can be passed to an superior system by a potential-free contact. SOFTWARE FEATURES •...
Page 4: Delivery Check
DELIVERY CHECK Control that the insulation box and cables dosen’t have any defects. Defective material can not be assem- bled and put into operation. Contact Jeven AB for handling of defective material. Delivery includes: • Jeven UV-Control • Safety switch •...
Page 5: Electrical Instruction
ELECTRICAL INSTRUCTION JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 6: Wiring
WIRING JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 7: Settings And Operations
SETTINGS AND OPERATIONS Jeven UV-Control has three different possibilities for start and stop of the UV-Turbo filters, monitoring the UV-lamps and keeping track of the UV-lamps operating time. As well as the ability to adjust the alarm limit for the ampere measurement, if for example retrofitted into one or more UV-Turbo.
Page 8 2. RUN TIME 2.1 Read current run time 3. ALARM 3.1 Alarm UV-lamp 3.2 Alarm run time 3.3 Alarm cleaning 3.4 Sum alarm 3.5 Operation indication 4. PROGRAMMING ALARM LIMIT JEVEN UV-Control Installation Rätt till ändringar förbehålles Rätt till ändringar förbehålles...
Page 9 SETTINGS AND OPERATIONS 1. CONTROL FUNKTION 1.1 Manual start/stop To stop the UV-purification manual press ( Esc + ◄ ) JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 10 M, T, W, T, F S, S 07:00 10:00 Off1 Off2 16:00 14:00 Exit the program menu by pressing Esc until, time and date appear on screen, then press arrow ▲. JEVEN UV-Control Installation Rätt till ändringar förbehålles Rätt till ändringar förbehålles...
Page 11 Stop of system occurs when the voltage level is below 30VAC, the input I8 on Siemens LOGO! will go in “low” state. External -24VDC Internal 230 VAC Relay 24VDC External +24VDC External 230VAC Relay diagram JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 12 Esc + ► UV lamps have a lifespan of 8 000 h, then they should be replaced. The system will indicate when the run time of 8 000 h has been reached. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 13 3.2 Alarm run time Jeven UV-Control has built-in control of the run time of the UV-lamp, the system will give an alarm when 8 000 h are reached, which is the lifespan of the UV-lamps. Replace all UV-lamps and reset run time by pressing ESC + ▼...
Page 14 There is a possibility to set a cleaning interval in the Siemens LOGO!. The service function is OFF by default. Set the cleaning status to ON. Adjust the cleaning interval if necessary. Default time is set to 10h (On =+00010). JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 15 It is possible to get an operation indication from Simens LOGO! Connect any voltage, Max 240VAC / VDC to the potential-free relay output Q4 (NO) on the Siemens LOGO! Operation indication External Max 240VAC/VDC JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 16 Due to the low power consumption from one UV-lamp (0.1A), the current relay Finder 71.51 is program- med with the internal power transformer for a more stable current measurement. This means that the visual value shown on the Finder 71.51 display is only a fictional value. Jeven UV-Control is delivered pre-programmed and calibrated for each project/kitchen.
Page 17 To check the current alarm limit and the ability to adjust it, you need to enter the Finder 71.51 programming view. Accessing the programming view is achieved by holding down the ”Set/Reset” and ”Select” buttons at the same time for 3 seconds. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 18 Press the ”SET/RESET” button to proceed. • Window 3: Here you choose if you want to measure under or overcurrent, the system should me asure undercurrent and may not change! Press the ”SET / RESET” button to proceed. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 19 Window 6: (T1) Here you program a delay of outgoing alarm when it has detected a current loss, Finder 71.51 is programmed with a delay of 10 seconds. This value should not be changed. Press the ”SET/RESET” button to proceed. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 20 This value should not be changed! Press the ”SET / RESET” button to proceed. • Window 8: Selection of memory function, memory function should not be used. Do not change! Press the ”SET/RESET” button to proceed. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 21 Start the system again and take down a grease collector, the system will now detect the power loss and generate an alarm. Refit the grease collector and reset the alarm by pressing ESC + ▲. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 22: Modbus Installation
Connect one side of the Ethernet cable to Siemens LOGO: X1 P1 IE(LAN), see picture below: Connect the other side of Ethernet cable to the superior system, see example below: Local PC MODBUS TCP LOGO! 8.FS4 Modbus Master 192.168.0.3 192.168.0.50 JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 23: Modbus Communication
Modbus communication is 100 ms. Function LOGO Modbus Start/Stop V0.0 1 (Coil) Service alarm V1.0 9 (Coil) Sum alarm V1.1 10 (Coil) Operation indication V1.2 11 (Coil) Default IP Adress: 192.168.0.3 Netmask: 255.255.255.0 Netmask: 255.255.255.0 JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 24: Modbus Change Ip Adress
It is necessary to change the IP address to match the IP address of the facility. Follow the steps below to set the correct IP address: Press the down arrow ▼. Then press ESC Set the cursor to ”Stop” and press OK. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 25 MODBUS CHANGE OF IP ADRESS IN SIEMENS LOGO Stop program ”Yes” and press OK. Set the cursor to ”Network” and press OK. ”IP Address” press OK. JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 26 Do the same to change the Subnet Mask. When both addresses are set, press ESC twice. Set the cursor to ”Start” and press OK. Start program ”Yes” and press OK. The IP address has now been changed! JEVEN UV-Control Installation Rätt till ändringar förbehålles...
Page 27 CONTACT Jeven AB +46(0)270-731 40 Växelgatan 15 jeven@jeven.se S-826 40 Söderhamn www.jeven.se JEVEN UV-Control Installation Rätt till ändringar förbehålles Rätt till ändringar förbehålles...
