Summary of Contents for Macas MACES4C-00

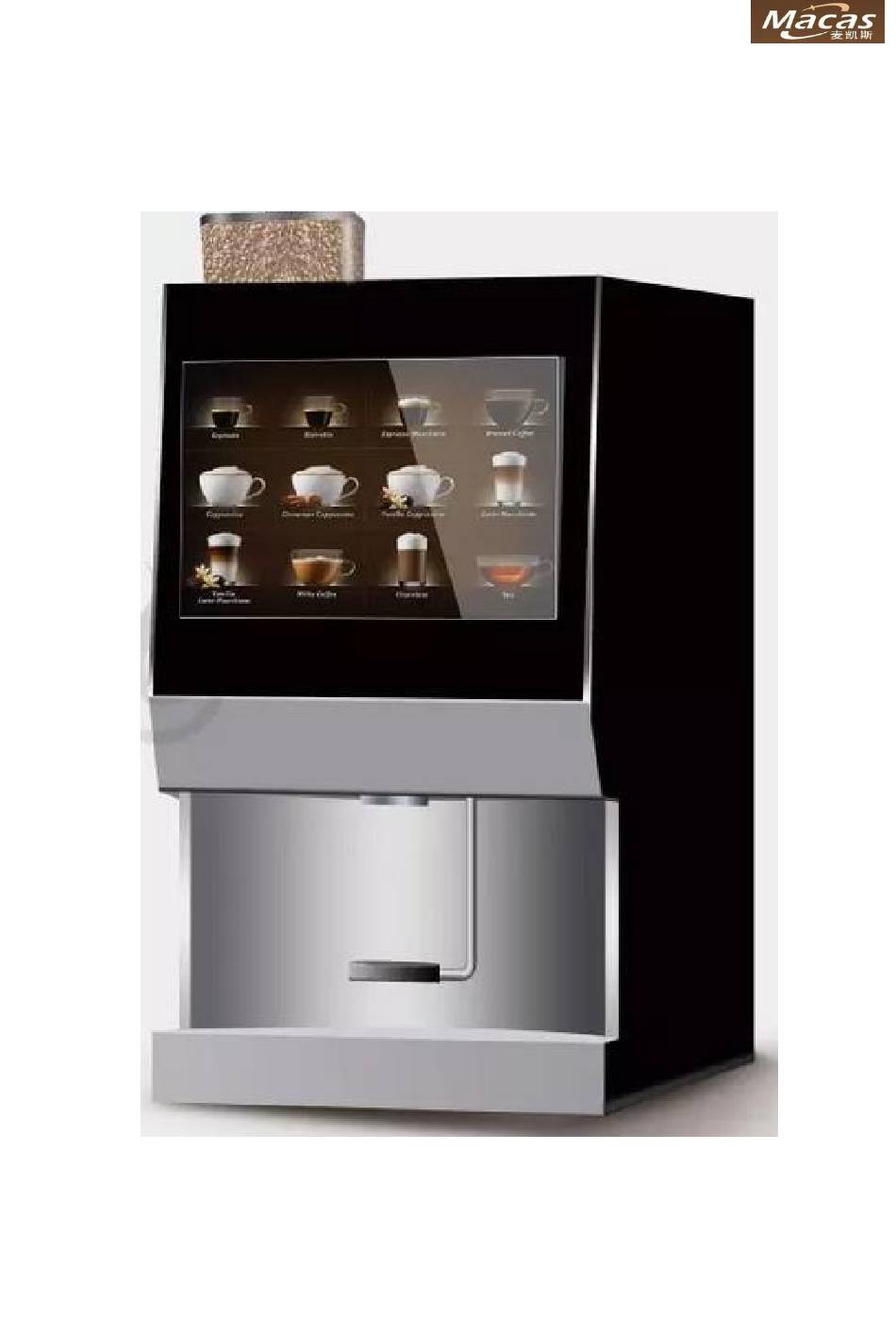

- Page 1 Operator UI Manual MACAS COFFEE MACHINES Rev 01 MACES4C-00 Operator UI manual...
-
Page 2: Table Of Contents
Duration Test ..............................28 .................................. 30 ETTING 4.4.1 Backup ................................31 4.4.2 RFID-card ................................32 4.4.3 Date & Time ............................... 32 4.4.4 Options ................................34 ..................................38 .................................. 39 EBOOT .............................. 39 OFTWARE UPGRADE ..................................40 BOUT MACES4C-00 Operator UI manual... -
Page 3: Overview
1 Overview The Macas coffee machine is a new generation coffee machine controlled by modern 14 inch touch screen. It provides an intuitive user interface, both for customer and operator. For customer, the customer user interface (CUI), as shown below provide a modern smart phone like UI. - Page 4 Service area ( not available, will be implemented soon ) Error area: display error in red and warning in yellow Maintenance area: display error/warning regarding maintenance, e.g. filter should be swapped, etc. Filling area ( not available, will be implemented soon ) Function buttons MACES4C-00 Operator UI manual...
-
Page 5: Calibration
Have a vessel ready to catch the ingredient amount and to weigh it. Have a suitable scale (with tenth-grams-Display 00.0) ready and zero it with the empty vessel. Open the door with key Press “Operator menu button” in customer interface will go to operator menu Press “machine” button MACES4C-00 Operator UI manual... - Page 6 Press the “container” you want to calibrate (one of those). Press “calibration” button MACES4C-00 Operator UI manual...
- Page 7 Weigh the dispensed ingredients and input the weight to machine via the touch panel. Test dosage is required to verify the calibration. The weight should be almost same (+/-0.2 g) as desired weight. If not, repeat from previous step MACES4C-00 Operator UI manual...
-
Page 8: Reports & Credit
Click on the title of each column can sort the table out. Note: The Product Name and ID are from the IPD file (please refer to the IPD Designer user manual), they are not the name from customer user interface. MACES4C-00 Operator UI manual... -
Page 9: Credit
3.2 Credit 3.2.1 Turnover report Turnover report is the total of all vend types. 3.2.2 Cash report Cash report is the summary of coin changer. MACES4C-00 Operator UI manual... -
Page 10: Credit Device
Dispense coins provide a way to manually dispense coins from the tube. Operator use this function to collect coins. Be sure not to empty the coin, leave some coins for change. The cash report will keep track on the figures. MACES4C-00 Operator UI manual... -
Page 11: Investment
Investment is to throw coin in the tube to leave for future change. In fact, when go into operator user interface. Any coins will be investment. This investment screen is a convenient way to see how much already throw in. MACES4C-00 Operator UI manual... -
Page 12: Function Buttons
Note: the machine is well tuned for default value. Please make sure exactly what these adjustments mean before make some changes. Comp. type Adjustments Remark Cannister Speed Set a fix speed to do the "Dosage test". Default:100 Waittime Wait time before sample dosage. Default:0 Duration The duration for motor movement. MACES4C-00 Operator UI manual... -
Page 13: Tests
Run mono brewer all movement. Mono brewer Brewer service mode Brewer go to service mode. Test Brewer Test esbrewer movement. Espresso brewer Brewer to dosage Esbrewer goes to dosage position. Brewer press Esbrewer goes to press position. MACES4C-00 Operator UI manual... -
Page 14: Product
Test left catcher deliver movement. catcher 2 delivery Test right catcher deliver movement. Cupcatcher reset. Reset cup catcher. Air pump test airpump Run air pump for test. 4.2 Product Click on the “Product” button shows the following page: MACES4C-00 Operator UI manual... -
Page 15: Test
Please make sue the tab is in “Test” state. Press one product icon to enter the test page. It is just the same as the customer UI. Adjust some dosage here, press the “” button to cancel this test or press the “” button to make this product: 4.2.2 Recipe Press the “Recipe” tab. MACES4C-00 Operator UI manual... - Page 16 Note: the red bar indicate that not all products can adjust to that level. To edit a specific product’s recipe, click on one product icon to enter the recipe adjusting page: MACES4C-00 Operator UI manual...
-
Page 17: Edit Price
For Macas coffee machine menu system, one menu icon could response up to 4 products, defined by a diamond product tree. Please refer to IPD designer user manual 4.4.2 Product Tree for further information. Color bars to the left is to display the product tree. It can be up to 4 products of the tree. Each row is on product, and has different color. - Page 18 When click on the product icon, a dialog would pop up for price editing: The same story as the product tree, each product (up to 4) in this icon can set a different price. Select the product MACES4C-00 Operator UI manual...
- Page 19 Price A to D is EVA concept for price. Normally Price A is used. When a special card with price set, price might change to another one. Cup can also be set a price. Product price will change while user place/remove his own cup. To change cup price: click “Cup price” button, and it shows: MACES4C-00 Operator UI manual...
-
Page 20: Show/Hide
Then click the menu to edit the price: 4.2.4 Show/Hide The page is used to show/hide a product in customer UI: MACES4C-00 Operator UI manual... - Page 21 Press the icon of a product, then a dialogue will be shown to ask if the product should be hidden: If click “Yes”, the result will look like this: MACES4C-00 Operator UI manual...
- Page 22 Use “Test hide” to see how the menu looks to customers, in this case, “Instant coffee” is disappeared: Click “Show all” button to view the hidden product. Customers still won’t see this hidden product, it’s just for operator’s convenient. MACES4C-00 Operator UI manual...
-
Page 23: Edit Name
Note: products can not be order in OUI. Please use PC tool: product menu editor to change it. 4.2.5 Edit name Names of products could be changed here: Click the product icon, and edit the name: MACES4C-00 Operator UI manual... -
Page 24: Program
4.3 Program A menu for machine maintenance, click the “Program” icon, and the other menu will be shown: Details of each program are introduced in 7.3.1 ~ 7.3.6 . 4.3.1 Rinsing Clean the water route: MACES4C-00 Operator UI manual... -
Page 25: Purification
4.3.2 Purification Use chemicals to clear the water route. Click button “Open” to prepare components: Then wait all are ready: MACES4C-00 Operator UI manual... -
Page 26: Service On
NOTE: If purification is interrupted, an error would be shown in the log: This message won’t disappear until a complete purification is finished. 4.3.3 Service On When click button “Service On”, it means perform maintenance with the door open: MACES4C-00 Operator UI manual... -
Page 27: Service Off
4.3.4 Service Off When click button “Service Off”, it means perform maintenance with the door closed: 4.3.5 Swap Filter When a new filter is installed, use the function to make the filter get ready to work: MACES4C-00 Operator UI manual... -
Page 28: Duration Test
4.3.6 Duration Test Test one product repeatedly: Click button “Add” and it’ll look like this: MACES4C-00 Operator UI manual... - Page 29 The group and product here is defined by the IPD designer. Select one product and the product will be shown in the TODO list: Button “Count: Inf.” is used to set how many circle the product will run: MACES4C-00 Operator UI manual...
-
Page 30: Setting
And click button “Interval” to set the interval of each circle: Then click “Run” to start. 4.4 Setting A menu use to do some settings about the machine. Click “Setting”, then setting functions will be shown as below: MACES4C-00 Operator UI manual... -
Page 31: Backup
Quick mode – Only backup configure files of the machine It is highly recommend use this mode. All mode – Backup all files needed by machine, including applications and configure files. This mode will cost much more time then Quick mode. When backup starts, a progress dialog indicates how far it goes: MACES4C-00 Operator UI manual... -
Page 32: Rfid-Card
4.4.3 Date & Time The menu is for setting date and time. And the “Show Time” button is used to show/hide date and time on top middle of customer UI: MACES4C-00 Operator UI manual... - Page 33 Slide on the date/time to change the number: MACES4C-00 Operator UI manual...
-
Page 34: Options
Customer can use fast code to select product in a quicker way. Adaptive Standby – Machine will learn the selling history and go to standby mode in a smart way. MACES4C-00 Operator UI manual... - Page 35 Revalue policy – NoRevalue – Revalue is disabled, return credit to card is forbidden. DirectRevalue – When card session begins with revaluing capability, the previous and subsequent accepted cash credit would immediately revalue to the card. MACES4C-00 Operator UI manual...
- Page 36 Text Service phone – Service phone number display in initialization, information and error view. Web Address – Web address display in initialization, information and error view. Language – Language for operator menu. MACES4C-00 Operator UI manual...
- Page 37 Product Notification - Enable /disable the notification beeps when product is ready. Display Screensaver Wait Time – Setting for screensaver idle time in second. Screensaver – Turnoff – Turn off the display LCD back light. Image – Play images in turn if possible. MACES4C-00 Operator UI manual...
-
Page 38: Log
Show Door in Machine – Door icon can be shown in tow places alternatively: in machine view and in “Program”. Order Product Icon by Clicks – Sort the product menu icons by the sale amount of products. 4.5 Log The page shows the log of machine, including status changes and failure information: MACES4C-00 Operator UI manual... -
Page 39: Reboot
Insert the U-disk to machine USB host port, and if the system detect the new software, it will show a dialog. Press Yes button to upgrade system software, and wait the machine reboot automatically. Software upgrading is done. MACES4C-00 Operator UI manual... -
Page 40: About
4.8 About In “About” page, it shows information about main board, IO board, cup board and hydraulic board: MACES4C-00 Operator UI manual...
