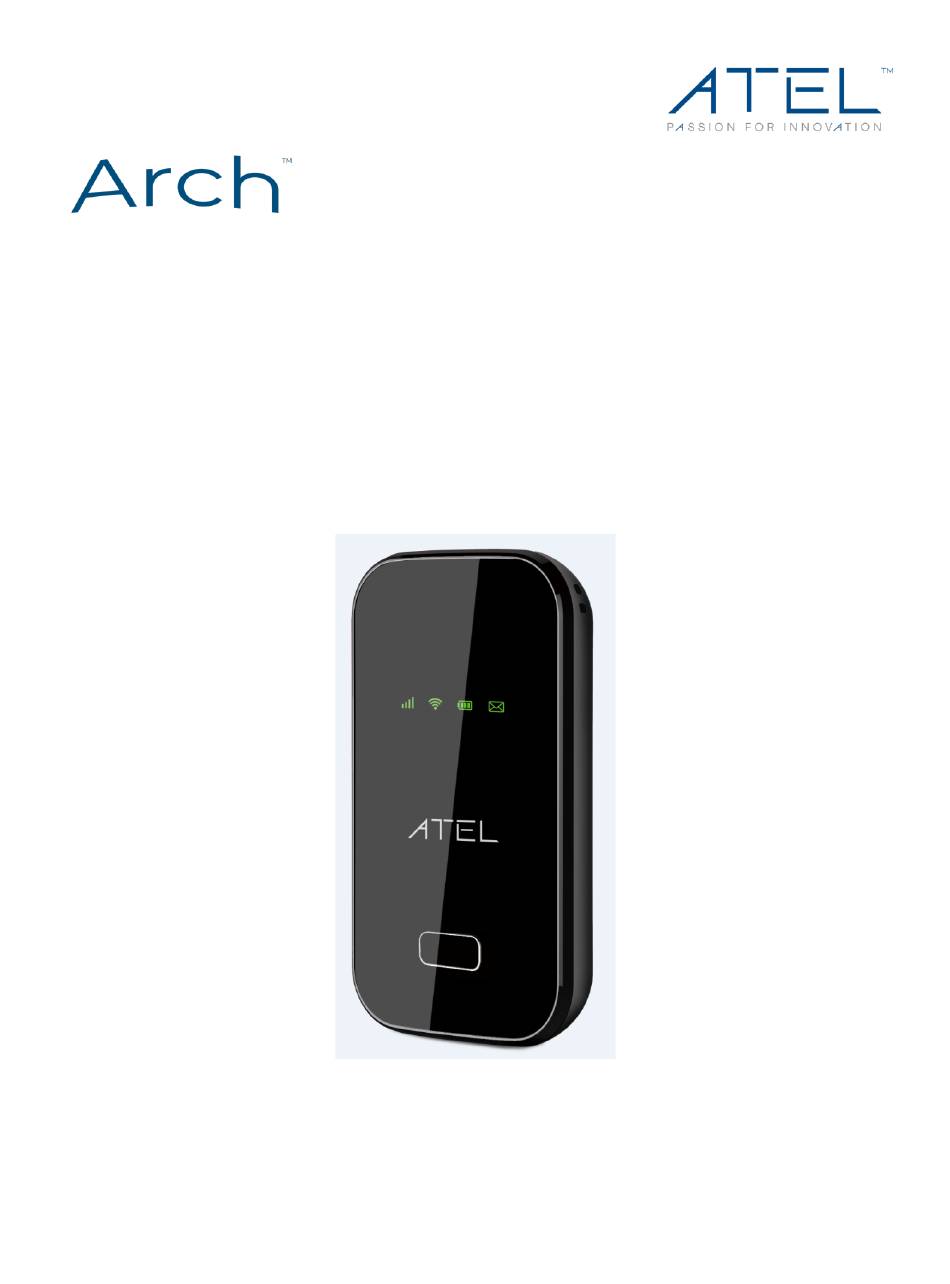

- Page 1 Mobile Hotspot by ATEL User Manual Version 6.0...
-
Page 2: Table Of Contents
Contents Overview ..............................4 System Requirements ..........................4 Components ............................... 4 Key ................................5 LED Indicator ............................5 Battery Management ..........................6 Accessing the Network ..........................6 Using Your W01 Arch for the First Time ....................6 System Requirements ........................... 6 Installing the LTE Nano SIM Card ...................... - Page 3 SIM Lock ............................16 Firewall Settings ........................... 17 Firewall .............................. 18 Mac Filter ............................19 Port Filtering ............................. 21 Port Forwarding ..........................22 About ................................. 23 Logs ............................... 23 Backup and Restore ..........................24 Remote Update ............................ 25 Question and Answer ..........................25 Before you start ............................
-
Page 4: Overview

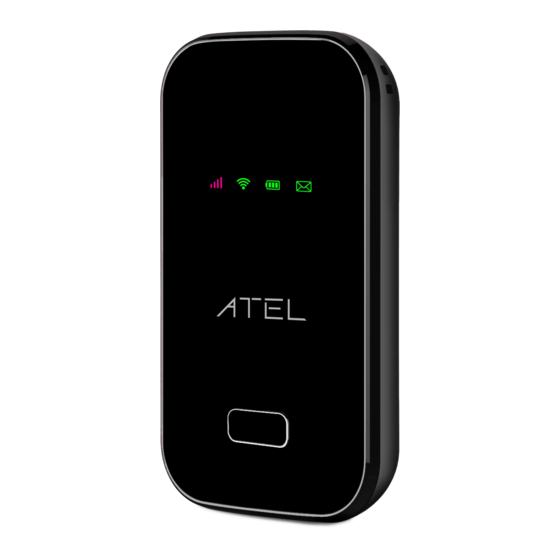

Overview Thank you for choosing the W01 Arch, an LTE Mobile Hotspot by ATEL! Having the W01 Arch at your fingertips will allow you to access the LTE network for fast uploads and downloads on your own Wi-Fi Hotspot. You can also connect up to 15 Wi-Fi capable devices to the Internet at once - laptops, tablets, Smartphones and more. -
Page 5: Key
Power Button Power on/off for the W01 Arch. Press power key twice quickly to wake up Wi-Fi from the Sleep mode. Type C Charging Port The USB charger connects here. Battery Insert the battery to align with the battery contacts. Reset Pin Hole To perform reset of your device, use a unfolded paperclip, insert into the RST pin hole, and push down for 3 seconds, then release. -
Page 6: Battery Management
All above Power and LTE LED light white, WiFi and SMS LED light green during Upgrading F/W upgrading Battery Management Your W01 Arch is equipped with a replaceable and rechargeable battery. It works from the charged battery alone, or when the device is plugged into a power source. Charge the battery with the charger provided with your Hotspot. -
Page 7: Charging The Battery
IMPORTANT! Do not bend or scratch your Nano SIM card. Avoid exposing your Nano SIM card to static electricity, water, or dirt. Whenever you insert or remove the SIM card, ensure your W01 Arch is powered off and is not connected to any power source. Never use tools, knives, keys, or any type of object to force the door open or to remove the Nano SIM card. -
Page 8: Using Your W01 Arch After Setup Is Complete
Using Your W01 Arch after Setup is Complete Mobile Hotspot to Share Connections You can use your W01 Arch as a wireless Mobile Hotspot to connect to a total of 15 Wi-Fi capable devices to the mobile broadband network. Wi-Fi and Mobile Hotspot (http://192.168.0.1) Security and Password The W01 Arch comes from the factory with security turned on. -
Page 9: Managing Your Mobile Hotspot
Click the “Upgrade” button to launch the software upgrade manually. Once the upgrade is completed, the device will reboot and the new software version will display. Note: “Check for Update” button is only active (blue color) every 6 hours. Managing Your Mobile Hotspot You can access the W01 Arch Mobile Hotspot Online Device Management Portal (Online Portal) using an internet browser... -
Page 10: Connected Devices
Connected Devices On this page, you can see Connected Devices, Blocked Devices and Change Max Connections. Connected Devices: This field lists the device(s) connected to your W01 Arch. Change Max Connections: The default max connection is 15. Click this button and it will take you to the Wi-Fi Settings where you can change the Max Wi-Fi Connections. -
Page 11: Messages
Choose Day of Month, Usage Limit and Click Save Changes to save your settings. Messages Messages page displays SMS messages sent to you by Wireless Carrier. The number of unread messages displays to the right of the message icon. When a new message arrives, the message icon appears. A maximum of 30 messages can be stored. -
Page 12: Wi-Fi Settings
Wi-Fi settings These settings apply whenever the Wi-Fi is turned on. Changes made to these Wi-Fi settings may require you to reconnect your Wi-Fi devices for the new settings to come into effect. • Wi-Fi ON/OFF: Turn on to allow Wi-Fi devices to connect to this device. Wi-Fi devices will not connect to this device after it is turned off. -
Page 13: Lan Settings
• Wi-Fi privacy separation: If turned on, connected devices cannot communicate with each other. • Maximum Wi-Fi connections: The default maximum Wi-Fi connection is 15. You can set it to any number between 1 and 15. LAN Settings From the Online Portal, click Settings > LAN Settings to display the Hotspot WIFI. Information shown in the following figure. -
Page 14: Device Settings
You can reserve an IP address so that it is always assigned to the same connected device. Every reserved IP address must be within the range of IP addresses used by DHCP. Device Settings Device Preferences • UPnP (Universal Plug and Play): UPnP (which stands for Universal Plug and Play) is a feature that allows the devices on your home network to discover each other and access certain services. -
Page 15: Advanced
Advanced On this page, you can see two menus: Mobile Network and Firewall Settings. Mobile Network From this page, you can see two menus: Mobile Settings and SIM Lock. -
Page 16: Mobile Settings
Mobile Settings Cellular Data Turn off cellular data to prevent all internet traffic from using the mobile broadband connection. Roaming Turn Data Roaming on or off. Turn it ON to require confirmation before connecting to the roaming network. APN Settings You can use the default APN to connect to the Internet. -
Page 17: Firewall Settings
When you enter the right PIN code, the status of SIM will change to “Ready”, and you can connect to the internet. Note: Entering an incorrect PIN more than 3 times will permanently lock your SIM and you will need to enter the PUK code to unlock. -
Page 18: Firewall
Firewall This page contains Firewall-related settings: VPN Passthrough After turned on, VPN Passthrough allows connected devices to establish a VPN tunnel. DMZ(IPv4) Enter the IP address of the connected device in the Destination IP address input field to become the DMZ destination. -
Page 19: Mac Filter
Mac Filter The default “MAC Filter” status is “OFF”. If the MAC Filter is on and devices are listed in MAC Address Filter list, then all of the listed devices will be able to connect to your W01 Arch. For any given device, the interaction of the MAC Filter with the “Block” feature on the Connected Devices screen is shown on the following table. - Page 20 After changing the “MAC Filter” to “ON”, only the local “MAC Address Filter” listed devices can connect to the W01 Arch, other devices will disconnect from the W01 Arch. You can click “Add Device” button to add the devices. The added devices can connect the W01 Arch.
-
Page 21: Port Filtering
Port Filtering... -
Page 22: Port Forwarding
Applications The default applications have “Email (POP3, IMAP, SMTP)”, “FTP”, “HTTP”, “HTTPS” and “Telnet”. If port filtering is on, only traffic from selected applications can access the Internet. Note that DNS is always allowed. Custom Applications Click “Add a Custom Application” to define your own applications, and then turn them on or off as needed. -
Page 23: About
Custom Application Click “Add a Custom Application” to define your own applications, and then turn them on or off as needed. To define an application, you need to know the incoming ports used by the application. About From the Online Portal main screen, click the About tab to view the available information. Logs Turn on Logs Turn on the logs as needed. -
Page 24: Backup And Restore
Backup and Restore On this page, you can operate Backup, Restore, Restore to Factory Defaults and Restart. Backup Backup your W01 Arch Hotspot settings and preferences to your computer. Note: ! The backup file will only work with this particular W01 Arch. ! You will be locked out if an incorrect password is used too many times. -
Page 25: Remote Update
Remote Update Prior to a software upgrade, please make sure the battery level is higher than 35%. Loss of power during the upgrade could damage the device. ! Check for Update: “Check for Update” button is only active (blue color) every 6 hours. When active, you can click the “Check for Update”... -
Page 26: Common Problems And Solutions
Common Problems and Solutions 1. W01 Arch just powered off without pressing the Power/Menu button. Why? This may occur under Battery depletion. To restore power, manually press and hold the Power/Menu button to turn on your W01 Arch. If the battery is depleted, charge the battery with the AC charger provided. - Page 27 Reset 4. How do I perform a Factory Reset via the Online Device Management Portal? Online Device Management Portal Using the Mobile Hotspot : Connect to your W01 Arch and then open the Mobile Hotspot Online Portal (https://192.168.0.1, or, http://192.168.0.1). Select About > Backup and Restore and Click Restore Factory Defaults.
-
Page 28: Regulatory Statements
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. FCC CAUTION: Any changes or modification not expressly approved by ATEL, the party responsible for compliance could void the user's authority to operate this equipment. - Page 29 Most modern electronic equipment is shielded from radio frequency (RF) signals. However, inadequately shielded electronic equipment may be affected by the RF signals generated by your device. Medical and Life Support Equipment Do not use your device in healthcare facilities or where medical life support equipment is located as such equipment could be affected by your device’s external RF signals.
-
Page 30: Limited Warranty
Improper battery use may result in a fire, explosion or another hazard. Limited Warranty The full ATEL USA Warranty Policy can be found at www.atel-usa.com/warranty. On this page you can “Start a Warranty Claim”, “Check on an Existing Claim” and read our Warranty Policy by clicking on “ATEL’s Warranty Policy”.
